Pioneer® 18,000 BTU 20.5 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 16,000 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 10.5 HSPF2 / 2.78 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
-
Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Customizable length copper line set with flare connections
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $103.00
- Heating: $356.00

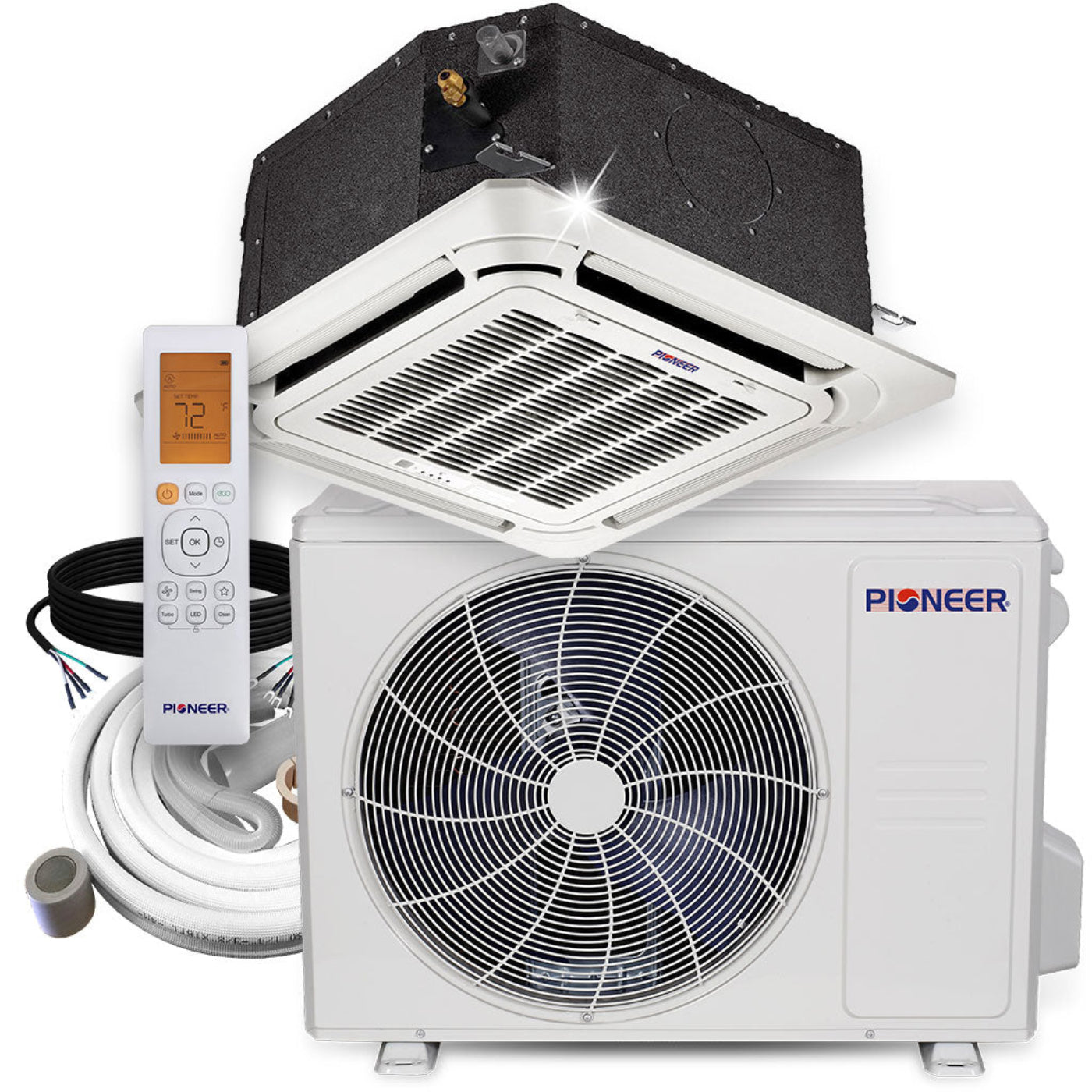

What's Included
- Indoor Unit
- Outdoor Unit
- Panel

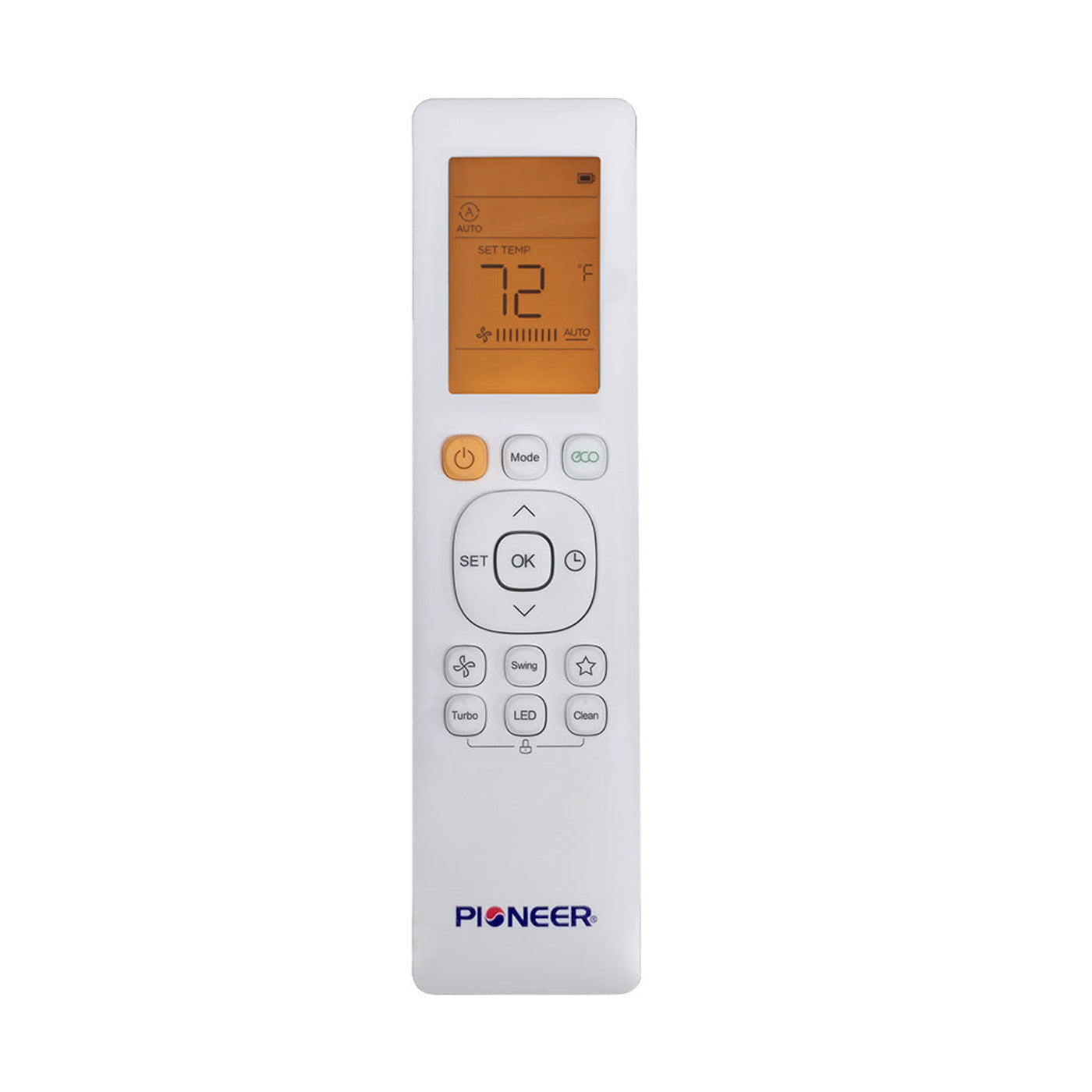

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 16,000 BTU/h
-
Cooling Capacity Range: 5,600~16,000 BTU/h
-
Cooling SEER2: 20.5 BTU/W.h
-
Cooling EER2: 12.5 BTU/W.h
-
Heating Rated Capacity: 19,000 BTU/h
-
Heating Capacity Range: 7,700~19,000 BTU/h
- Heating HSPF2: 10.5 BTU/W.h
- Refrigerant Type: R410a
- Suitable Area: 400~650 Sq.F
Indoor Unit Data
- Model: CB018GMFILCFHD
- Air Flow (Hi/Med/Lo): 365 / 310 / 265 CFM
- Sound Level (Hi/Med/Lo): 43.0 / 38.5 / 34.5 dB(A)
- Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
- Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
- Net / Gross Weight: 35.7 / 47 Lbs
Panel Data
-
Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
- Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
- Net / Gross Weight: 5.5 / 9.9 Lbs
Outdoor Unit Data
- Model: YN018GMFI22RPE
- Sound Level: 59.0 dB(A)
- Net Dimensions (WDH): 35.0 x 13.5 x 26.5 Inches
- Carton Dimensions (WDH): 39.2 x 15.6 x 29.2 Inches
- Net / Gross Weight: 94.4 / 101 Lbs
- Breaker Needed: 20A (double-pole)
Manuals
What Our Experts Think
-
Powerful 18,000 BTU capacity ideal for medium to large spaces.
-
High-efficiency 20.5 SEER2 rating reduces energy costs.
-
8-way compact cassette design ensures even airflow in all directions.
-
Heating + cooling capability makes it a year-round solution.
-
Sleek, ceiling-mounted unit saves wall space while maintaining comfort.
Q&A
Q: What size room can this system cover?
A: It’s perfect for spaces up to 750–1,000 sq. ft. depending on insulation.
Q: Does this unit provide both heating and cooling?
A: Yes, it’s a heat pump system designed for year-round comfort.
Q: Is the system energy efficient?
A: Absolutely—its 20.5 SEER2 rating ensures high efficiency and energy savings.
Maintenance Tips
-
Clean air filters monthly for maximum airflow.
-
Check ceiling cassette vents regularly to prevent dust buildup.
-
Ensure outdoor condenser is free from debris for optimal performance.
-
Schedule professional servicing annually to maintain efficiency.
