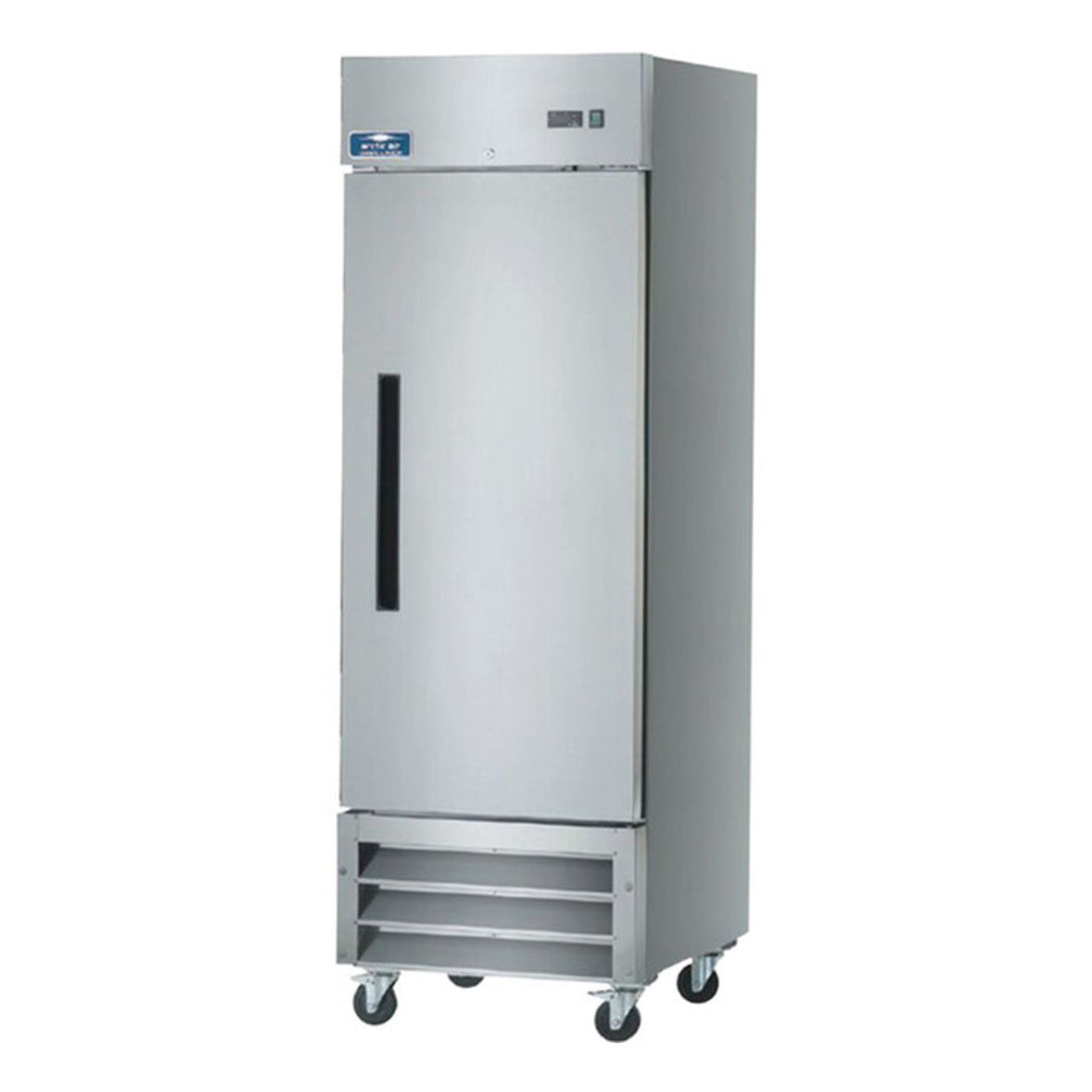

Arctic Air AF23 26.75" Commercial Single Door Reach-In Stainless Steel Freezer - AF23

Arctic Air AF23 26.75" Commercial Single Door Reach-In Stainless Steel Freezer - AF23

The Arctic Air AF23 26.75" Commercial Single Door Reach-In Stainless Steel Freezer offers advanced features for efficient performance and easy maintenance. It includes an electronic thermostat with an external digital LED display, ensuring precise temperature control. The interior features a bright white epoxy-coated aluminum liner and a high-grade stainless steel floor with coved corners, ensuring easy cleaning and durability. The freezer is equipped with three adjustable heavy-duty epoxy-coated wire shelves, providing flexible storage, and uses an eco-friendly self-contained capillary tube system with CFC-free refrigerant. The freezer’s exterior has a full stainless steel construction for durability and a modern appearance. It features a bottom-mounted compressor for optimal operation in cooler areas of the kitchen, with the front-accessible condensing unit mounted on a slide-out rack for easy servicing. The self-closing door, which stays open at 90 degrees, has a magnetic gasket that is removable and replaceable without tools. Other features include larger fan motors and blades for efficient air circulation, lockable, field-reversible doors, and easy-to-mount casters (two lockable). The unit meets NSF Standard 7 requirements for safe open food storage. Its dimensions are 26 3/4 inches in width, 32 3/4 inches in depth, and 82 3/4 inches in height. Weight & Dimensions Width: 26 3/4 Inches Depth: 32 3/4 Inches Height: 82 3/4 Inches Weight: 335 lb.

Features

• The Arctic Air AF23 measures 26 3/4 inches wide, 32 3/4 inches deep, and 82 3/4 inches high, making it a space-efficient choice for commercial kitchen environments where cold storage is essential.

• Has a shipping weight of 335 lbs, ensuring solid construction and durability to withstand the rigors of daily use.

• Operates on 9 Amps, 115 Volts, and 60 Hertz with a 1-phase electrical setup, suitable for most commercial kitchens.

• With a storage capacity of 23 cu. ft., the AF23 provides wide space for frozen goods, making it an ideal solution for restaurants and other food service operations.

• Bottom-mounted compressor ensures better accessibility for service and enhanced performance in cooler conditions, which helps reduce energy consumption.

• Features a swing-style solid door with a right hinge. The door design ensures a secure seal to maintain optimal freezing conditions and prolong the shelf life of stored products.

• Maintains a temperature range of -10 to 10 degrees F, which is ideal for preserving frozen foods and maintaining product quality.

• Inside the unit are 3 adjustable shelves, allowing for organized storage of various frozen items, optimizing space and accessibility.

• This freestanding freezer features a strong stainless steel and aluminum construction, offering durability and easy cleaning, suitable for high-traffic commercial kitchens.

• Powered by a 5/8 HP compressor and utilizing R-290 refrigerant, the unit also includes a NEMA 5-15P plug for a simple electrical connection. It comes with a full two-year parts and labor warranty and a five-year compressor warranty, ensuring reliable performance over time.

Specifications

What our Experts Think

• Optimal Storage Capacity: Provides 23 cu. ft. of storage space, ideal for establishments requiring efficient frozen food storage.

• Precise Temperature Control: Maintains temperatures between -10°F and +10°F, ensuring the preservation of frozen goods.

• Durable Construction: Features a stainless steel front and sides with a white aluminum interior, equipped with a stainless steel floor with coved corners for easy cleaning.

• Efficient Refrigeration: Utilizes a bottom-mounted self-contained refrigeration system with R290 hydrocarbon refrigerant, promoting energy efficiency and reliable performance.

• User-Friendly Design: Equipped with an electronic thermostat and digital LED display for accurate temperature monitoring. The self-closing door remains open at 90° and is lockable for security.

• Mobility and Stability: Mounted on four 5.5" casters, two of which are locking, facilitating easy movement and secure placement.

Q&A

Q: What is the Arctic Air AF23?
A: The Arctic Air AF23 is a 26.75" single-door commercial freezer, designed for efficient, high-performance frozen food storage in professional kitchens and foodservice establishments.

Q: How much storage space does it provide?
A: It offers 23 cu. ft. of storage, with adjustable shelves to accommodate a wide variety of frozen products for easy organization and access.

Q: Is it energy-efficient and reliable?
A: Yes, it uses eco-friendly R290 refrigerant and is NSF and ETL certified, ensuring compliance with food safety standards while offering energy-efficient cooling.

Q: Who is the AF23 best suited for?
A: Ideal for restaurants, catering services, bars, and other foodservice operations requiring a compact, reliable freezer for frozen storage in space-limited environments.

Maintenance Tips

• Clean condenser coils every 3 months to maintain cooling efficiency.

• Wipe door gaskets regularly to ensure a tight seal and prevent cold air loss.

• Monitor temperature daily to maintain the ideal range of -10°F to 10°F.

• Defrost as necessary if ice buildup exceeds 1/4 inch to keep the freezer working efficiently.

• Ensure door closes properly to maintain temperature and energy efficiency.

• Schedule annual professional maintenance for a comprehensive checkup of the system.
