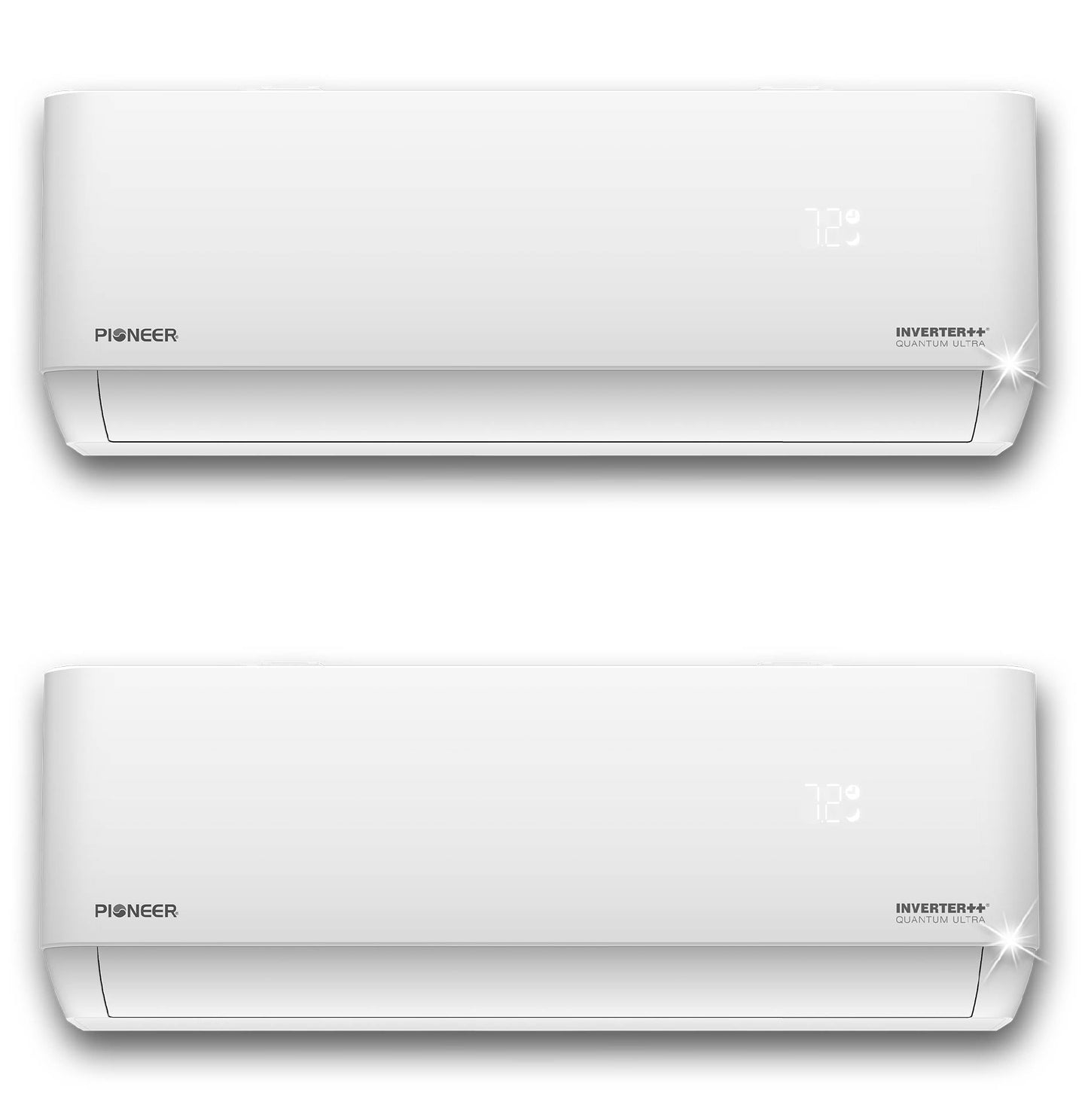

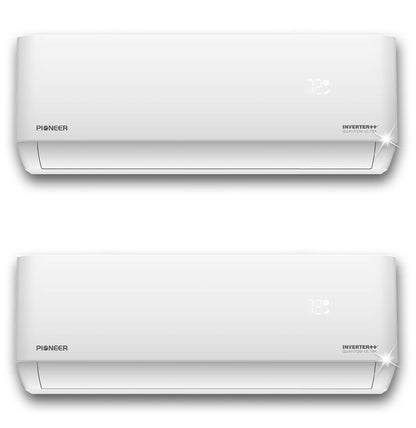

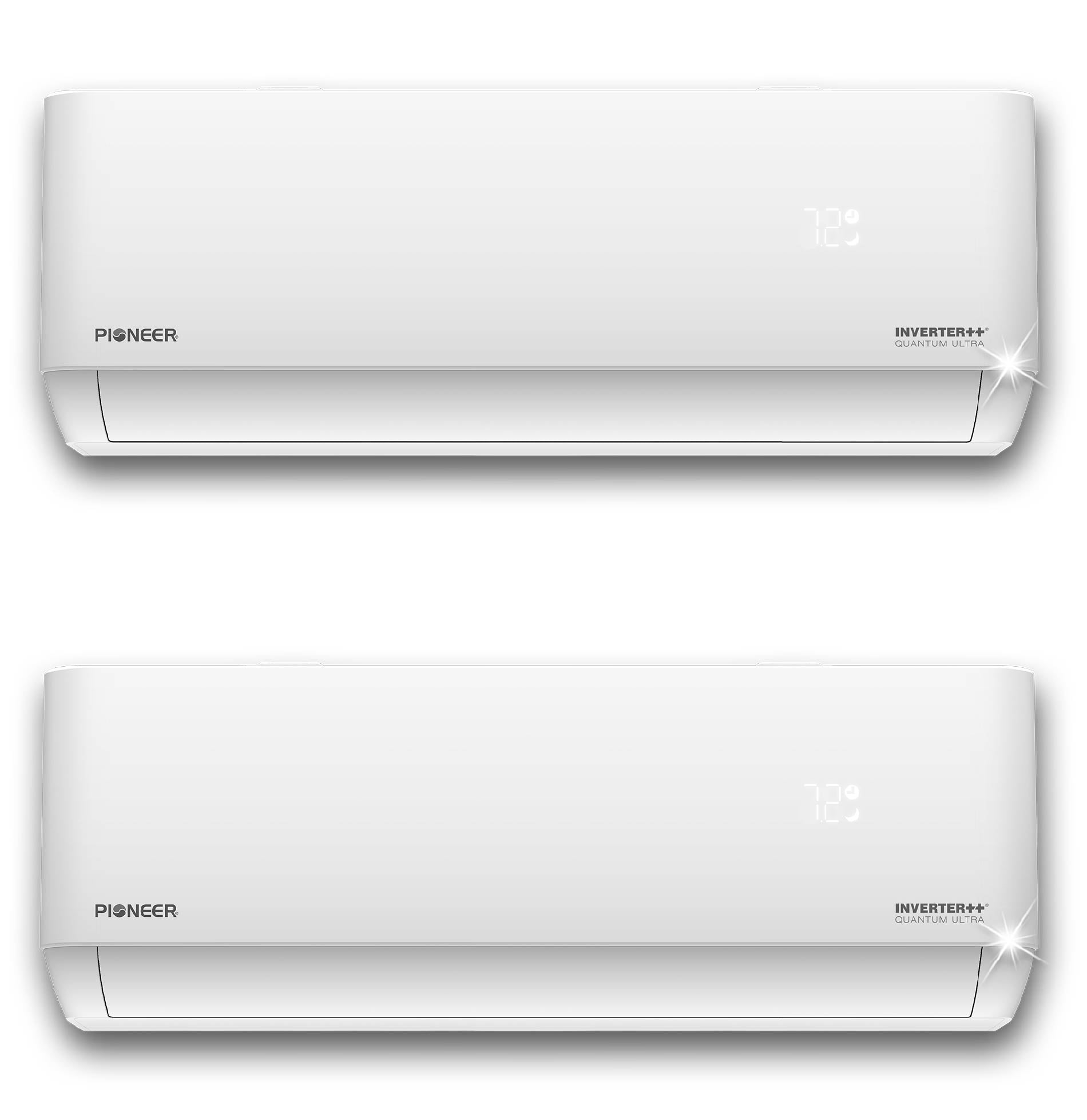

Dual Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT030GLSI24M3-18W-19W

Dual Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT030GLSI24M3-18W-19W

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

Features

• Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system)
• (x1) inside unit cooling capacity: 18,000 BTU/H nominal capacity + (x1) inside unit cooling capacity: 12,000 BTU/H nominal capacity, condensing system 27,000 BTU/H (Range: 4,500 minimum - 31,000 maximum) with 24 SEER/12.0 EER efficiency
• Heating capacity: 28,000 BTU/H nominal (range 4,500 minimum - 33,000 maximum) with 10 HSPF/3.5 COP efficiency
• Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
• Energy-Star Certified and Wi-Fi Enabled

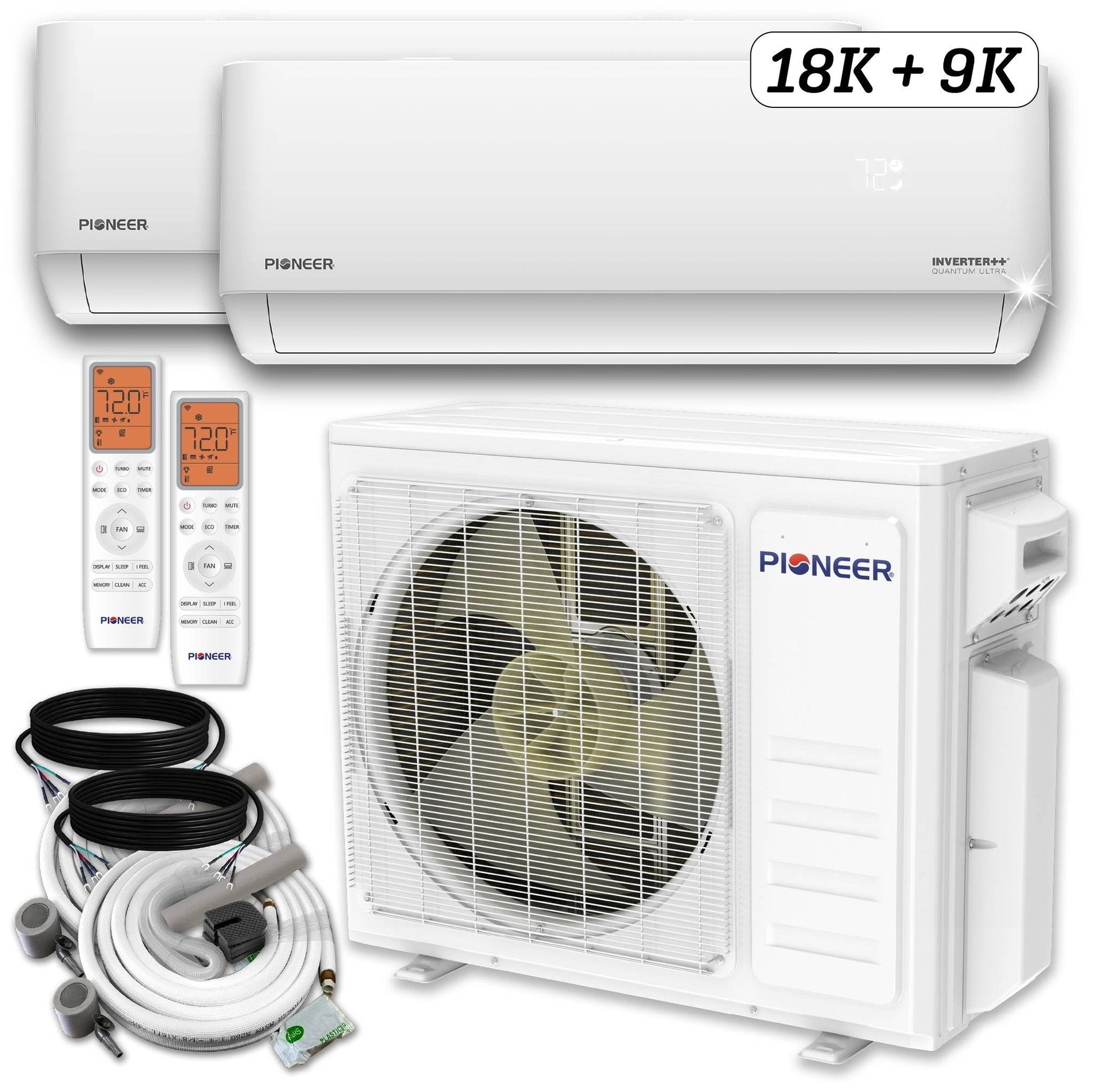

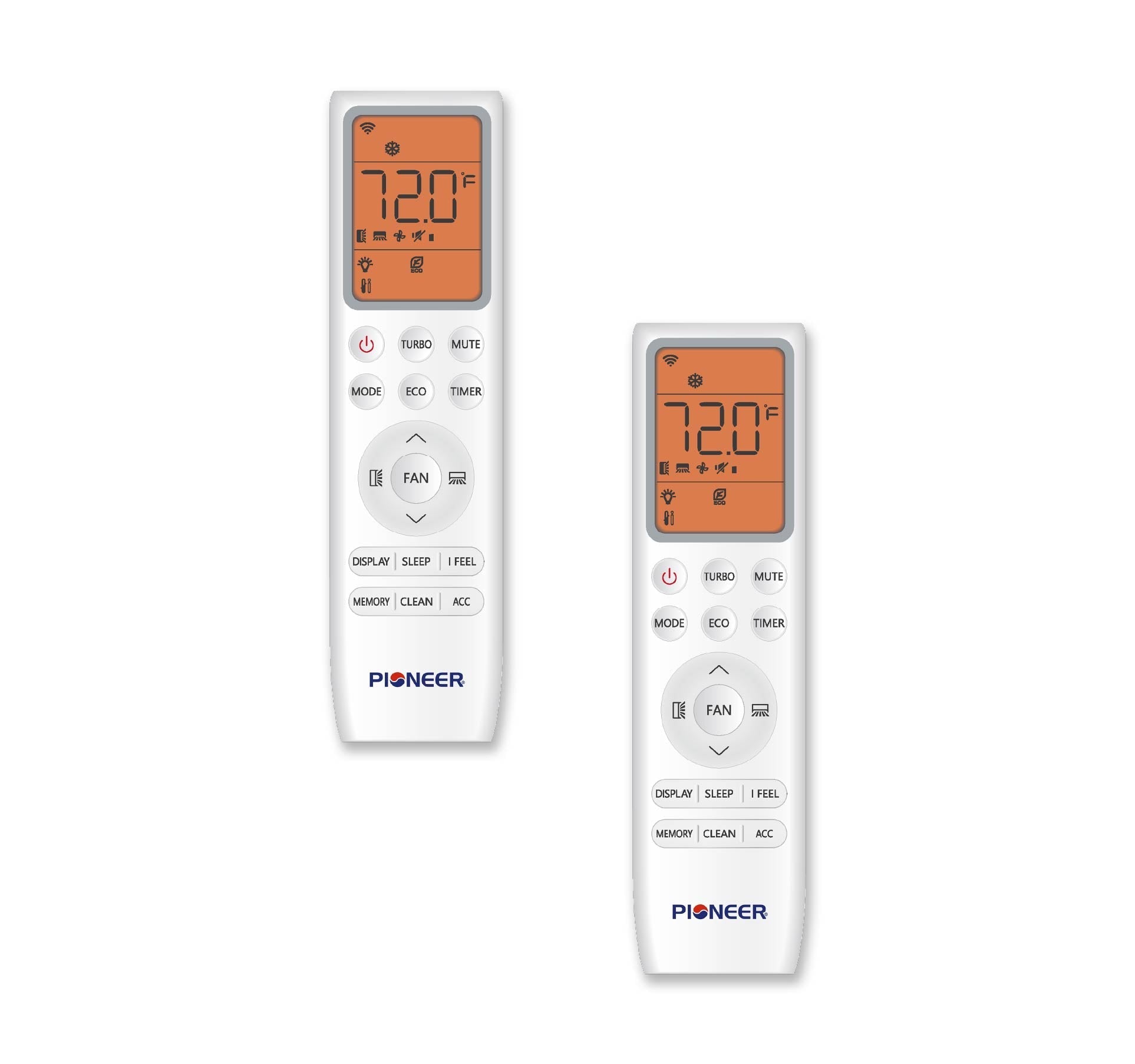

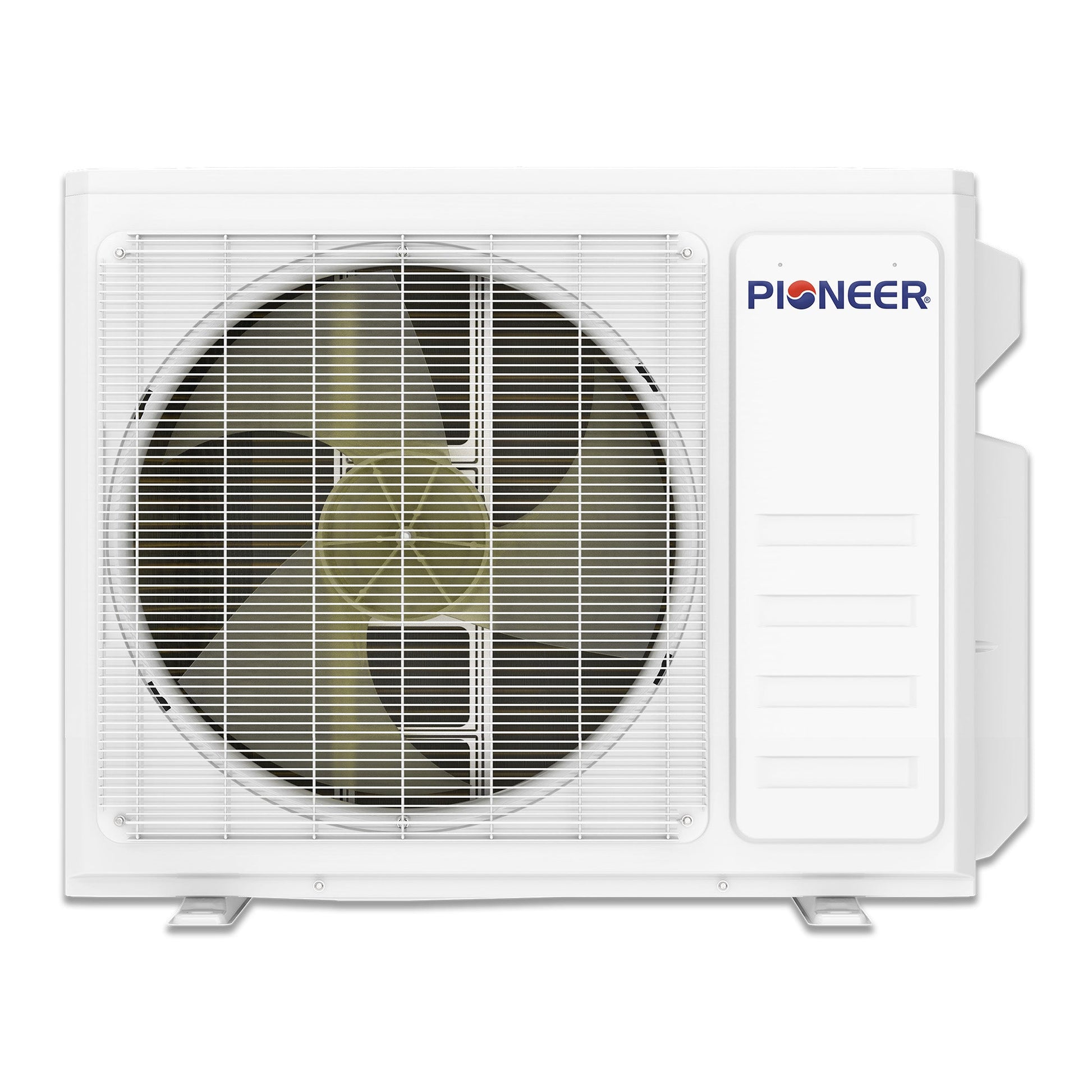

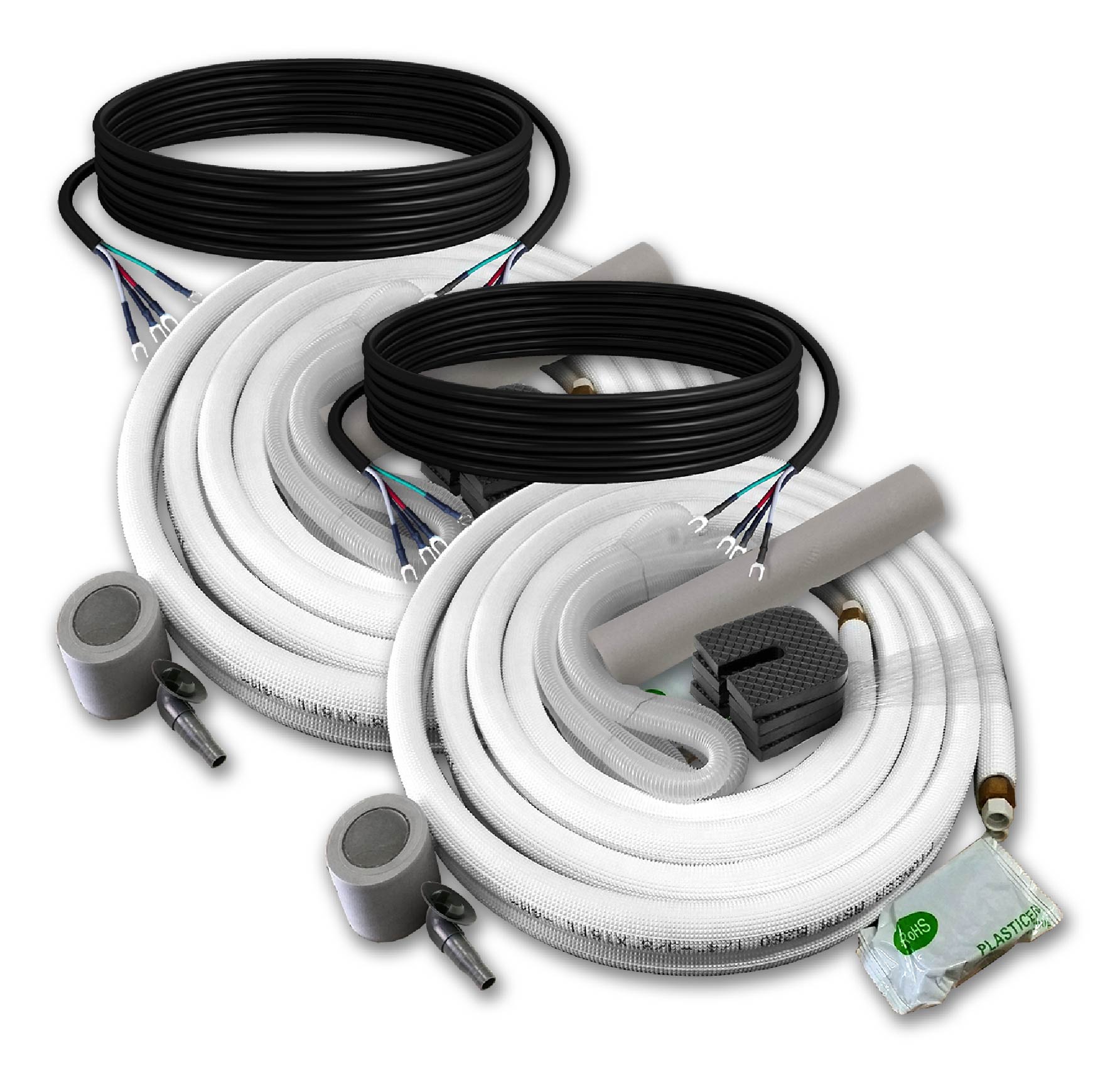

• Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
• Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
• Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
• Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 75 ft long
• Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
• Certified by: ETL, AHRI, DOE for safety, performance and efficiency
• Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

System Manuals

• Technical Brochure
• Submittal Sheet
• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate
• Energy Guide

What Our Experts Think

• Dual split 2.25-ton system efficiently cools and heats two zones simultaneously.

• 27,000 BTU output with 24 SEER2 rating ensures energy-efficient performance.

• Wi-Fi enabled for remote control via mobile app.

• Wall-mount design saves space while delivering powerful airflow.

• Energy Star certified for lower energy costs and eco-friendly operation.

Q&A

Q: Can this unit handle two separate zones at once?
A: Yes, it is designed for multi-zone cooling and heating.

Q: Is it energy-efficient?
A: Yes, 24 SEER2 rating and Energy Star certification ensure maximum efficiency.

Q: Can it be controlled remotely?
A: Yes, Wi-Fi connectivity allows full control via mobile devices.

Maintenance Tips

• Clean filters monthly to maintain airflow and efficiency.

• Wipe exterior surfaces with a soft, damp cloth.

• Inspect refrigerant lines and connections annually.

• Schedule professional servicing at least once a year for optimal performance.
