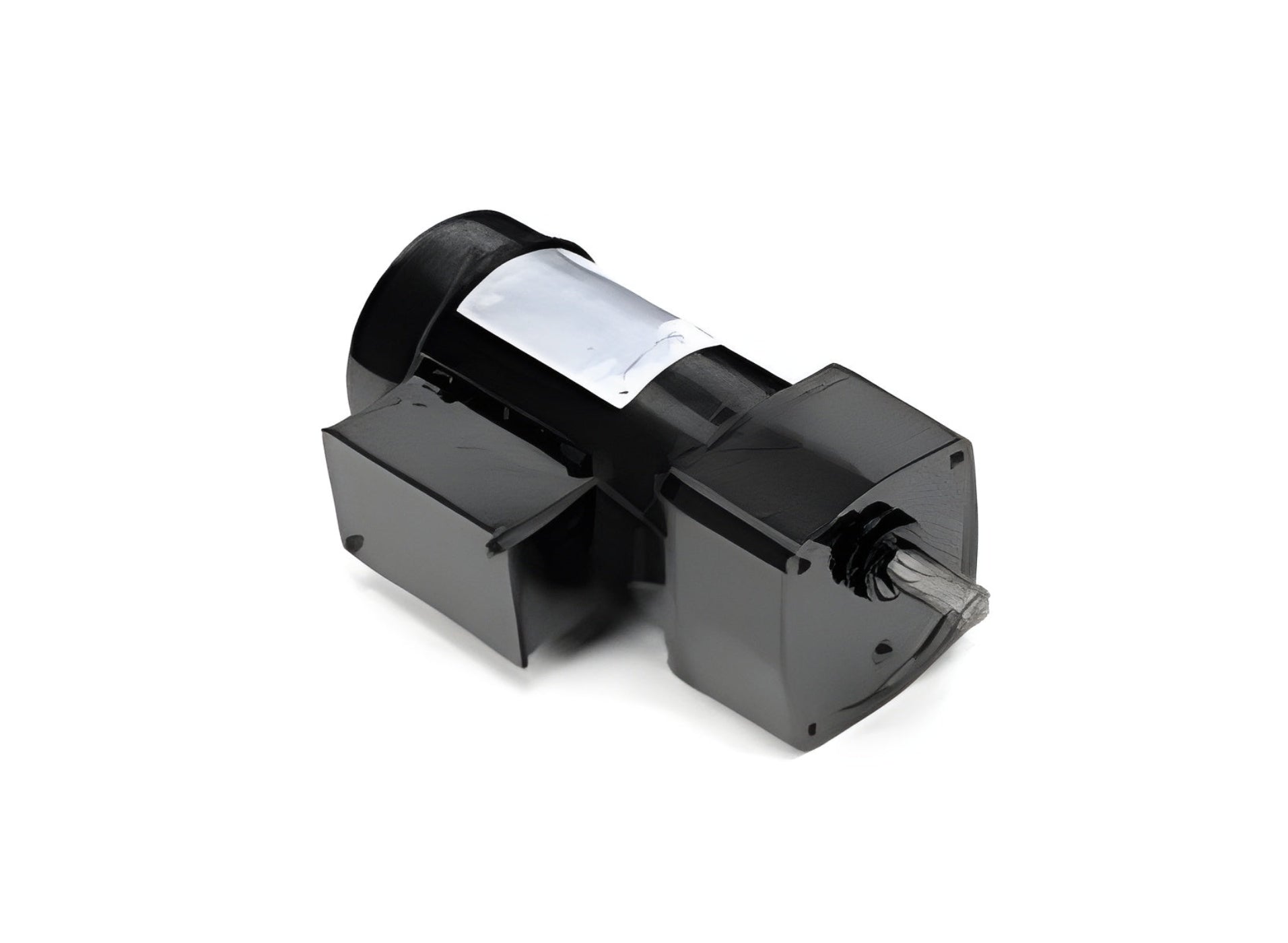

Marathon Leeson 104590090 - 096066.00
The Leeson 096066.00 is a reliable electric motor designed for various applications. This model operates on three-phase power and is suitable for demanding environments. It features a TEFC enclosure which protects against dust and moisture.
- Powerful 1/4 HP motor
- Operating voltage range of 230 to 460 volts
- Capable of 29 RPM for precise applications
This motor is inverter-rated, making it compatible with variable frequency drives.
-
Power: 1/4 HP
-
Voltage: 230-460V
-
Phase: 3-phase
-
RPM: 29
-
Enclosure: TEFC
-
Frequency: 60Hz
-
Temperature Rating: 40C
What Our Experts Think
-
High-torque, low-speed gearmotor (0.25 HP, ~29 RPM) built for continuous industrial duty.
-
Three-phase 208-230/460V input for flexible power compatibility.
-
PE350 series with TEFC (Totally Enclosed Fan Cooled) enclosure for protection in demanding environments.
-
Inverter Rated Insulation System (IRIS) allows safe use with VFDs.
-
42Y frame with Class-F insulation and rugged bearings ensures durability and long service life.
Q&A
-
What is the horsepower and speed?
0.25 HP at approximately 29 RPM.
-
What voltage is required?
Operates on 208-230/460V, three-phase power.
-
What frame/enclosure type is this gearmotor?
42Y frame, TEFC enclosure.
-
Is it compatible with variable frequency drives (VFDs)?
Yes — it features inverter-rated insulation.
-
What applications is this suitable for?
Ideal for conveyors, mixers, material handling, and positioning systems that demand high torque at low speed.
Maintenance Tips
-
Keep housing clean and ensure proper airflow to prevent overheating.
-
Inspect and maintain bearings regularly for wear and lubrication needs.
-
Verify electrical connections and insulation when operating with a VFD.
-
Follow lubrication schedules for gears with manufacturer-approved grease.
-
Check for load balance to avoid over-stressing the gearmotor.
