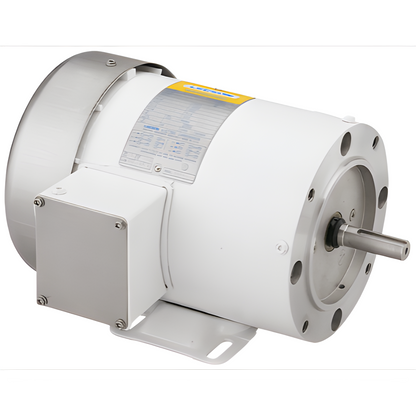

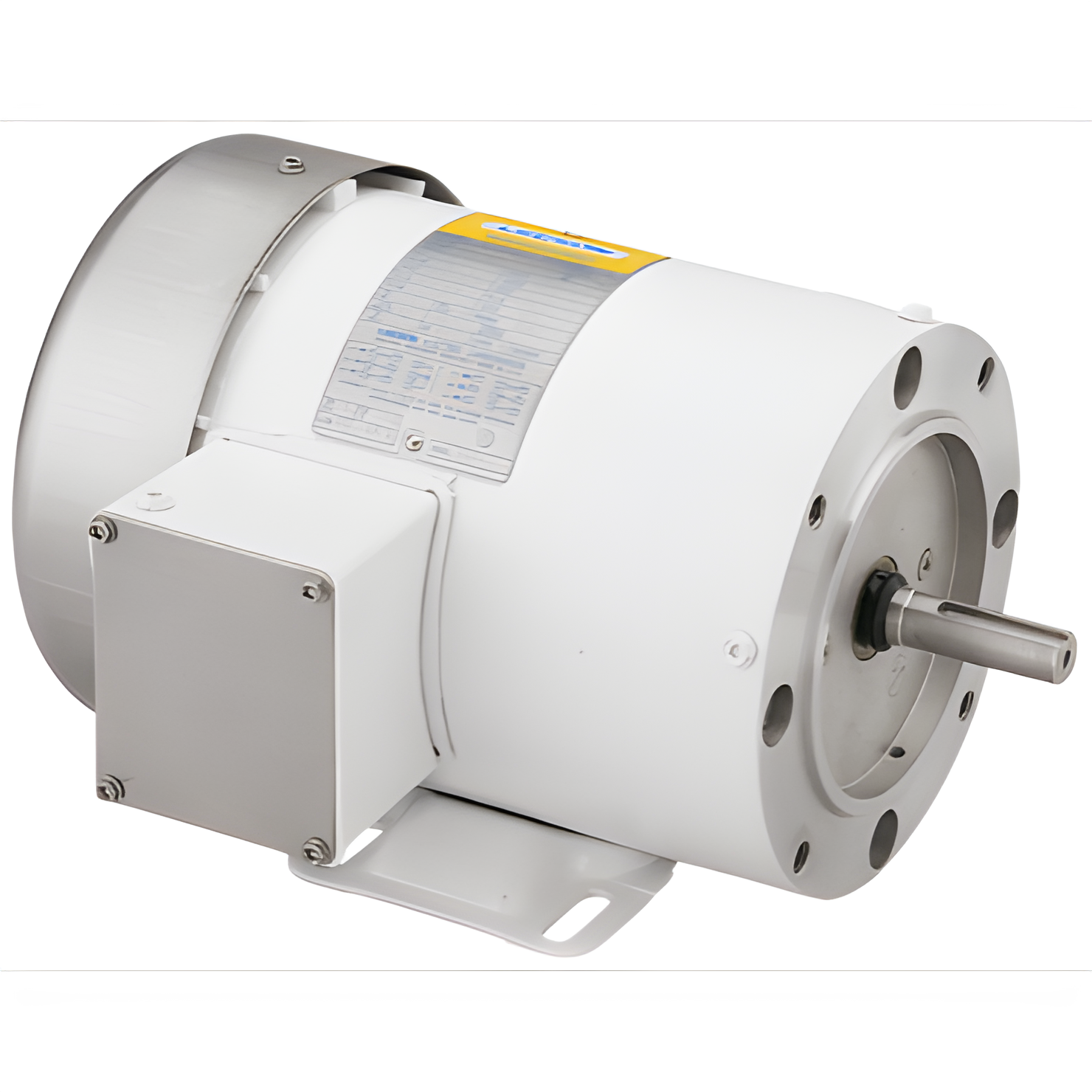

Marathon Leeson Washdown Duty AC Motor 2 HP 1800 RPM 208-230/460 - 119482.00
Leeson 119482.00 is a washdown duty AC motor designed for various applications that require durability and reliability. It provides 2 horsepower and operates at 1800 RPM. This motor is built for wet environments, featuring a moisture-shedding design that protects its internal components.
- Two horsepower capacity
- Suitable for washdown applications
- Standard voltage of 208-230/460
Product Highlights
This motor is ideal for environments that require moisture resistance and durability. Its stainless steel components and unique design ensure long-lasting performance even in tough conditions.
-
Brand: Leeson
-
Part Number: 112786515
-
Phase: Three Phase
-
Enclosure Designation: Totally Enclosed Fan Cooled
-
Poles: 2
-
Drive End Bearing: 6205
-
Hz: 60 Hz
-
Open End Bearing: 6203
-
Enclosure: TEFC
-
Frame Material: Rolled Steel
-
Mounting: C-Face - With Base
-
Frame: 56HC
-
Brake Feature: No
-
Service Factor: 1.15
-
Efficiency Group: 85.5 %
-
HP: 2
-
Useable at 208V: Yes
-
Voltage: 208-230/460
-
Insulation: F
-
Washdown Duty: Yes
-
RPM: 1800
-
Full Load Amps: 5.2-4.8/2.4
-
Rotation: CW
-
Motor Application: General Purpose
-
Weight: 51.0 LB
-
EAN or UPC: 691720051955
What Our Experts Think
-
2 HP washdown duty motor designed for food processing, beverage, and cleanroom environments.
-
1800 RPM ensures efficient, consistent performance in demanding applications.
-
Dual-voltage 208-230/460V three-phase design for flexible installation.
-
Washdown-duty construction resists moisture, chemicals, and high-pressure cleaning.
-
Built for long-lasting durability with corrosion-resistant materials.
Q&A
-
What is the horsepower rating?
2 HP.
-
What is the operating speed?
1800 RPM.
-
What voltages are supported?
208-230/460V, three-phase.
-
What makes this motor washdown duty?
Special construction with corrosion-resistant materials, sealed bearings, and protective finish to withstand water and cleaning chemicals.
-
What applications is it best for?
Food processing, beverage plants, cleanrooms, and any environment requiring regular washdowns.
Maintenance Tips
-
Regularly inspect seals and gaskets for wear to maintain washdown integrity.
-
Keep exterior surfaces clean after high-pressure washes.
-
Verify electrical connections remain dry and sealed.
-
Monitor bearings and re-lubricate if required.
-
Avoid exposure to harsh chemicals beyond rated tolerance.
