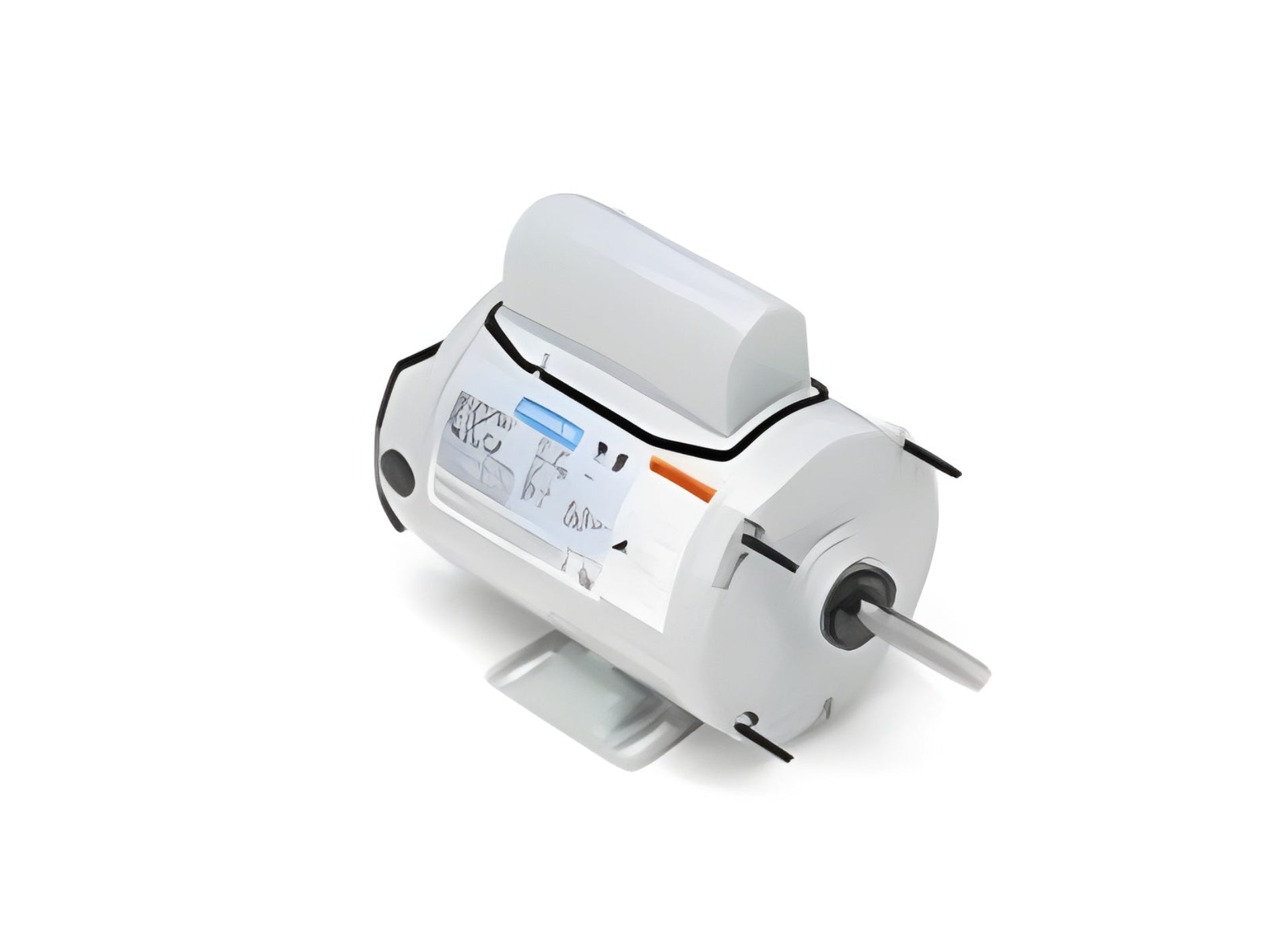

Marathon Leeson AC Motor 0.33 hp 1075 RPM 115/230 Voltage Rating - A099261.00
The Leeson A099261.00 is an AC motor designed for agricultural applications. This motor has a power rating of 0.33 horsepower and operates at a speed of 1075 RPM. It supports both 115 and 230 voltage ratings and is suitable for single-phase power. With a rigid-extended studs mount, it is structured to fit securely in various setups.
Specifications
-
Efficiency Group: 72%
-
Frequency: 60 Hz
-
Number of Poles: 6
-
Mounting Type: Rigid-Extended Studs
-
RPM: 1075
-
Phase Type: Single Phase
-
Frame Material: Rolled Steel
-
Enclosure Type: Totally Enclosed Non Ventilated
-
Voltage Rating: 115/230
-
Open End Bearing: 6203
-
Full Load Amps: 3.5/1.75
-
Rotation: Selective CCW
-
Insulation Type: B
-
Drive End Bearing: 6203
-
Motor Application: Agricultural
-
Frame Size: 48Z
-
Enclosure: TENV
-
Service Factor: 1
-
Weight: 22.0 lb
-
EAN or UPC: 691720102923
What Our Experts Think
-
0.33 HP motor designed for reliable light-duty industrial and commercial use.
-
1075 RPM speed ensures smooth, efficient performance in fans, blowers, and HVAC applications.
-
Dual-voltage (115/230V) capability offers flexible installation options.
-
Open drip-proof (ODP) design helps maintain cooling while protecting internal components.
-
Durable construction with quality insulation ensures long service life.
Q&A
-
What is the horsepower rating?
0.33 HP.
-
What is the operating speed?
1075 RPM.
-
What voltage does it run on?
Dual-voltage: 115/230V.
-
What enclosure type is it?
Open Drip Proof (ODP).
-
What are the common applications?
Perfect for HVAC systems, blowers, small pumps, and general-purpose light-duty tasks.
Maintenance Tips
-
Keep motor vents free of dust and debris for proper cooling.
-
Check alignment and secure mounting to minimize vibration.
-
Inspect wiring and connections regularly for safety.
-
Avoid exposure to excessive moisture to protect the ODP enclosure.
-
Lubricate bearings periodically if not permanently lubricated.
