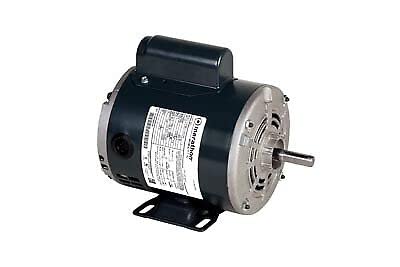

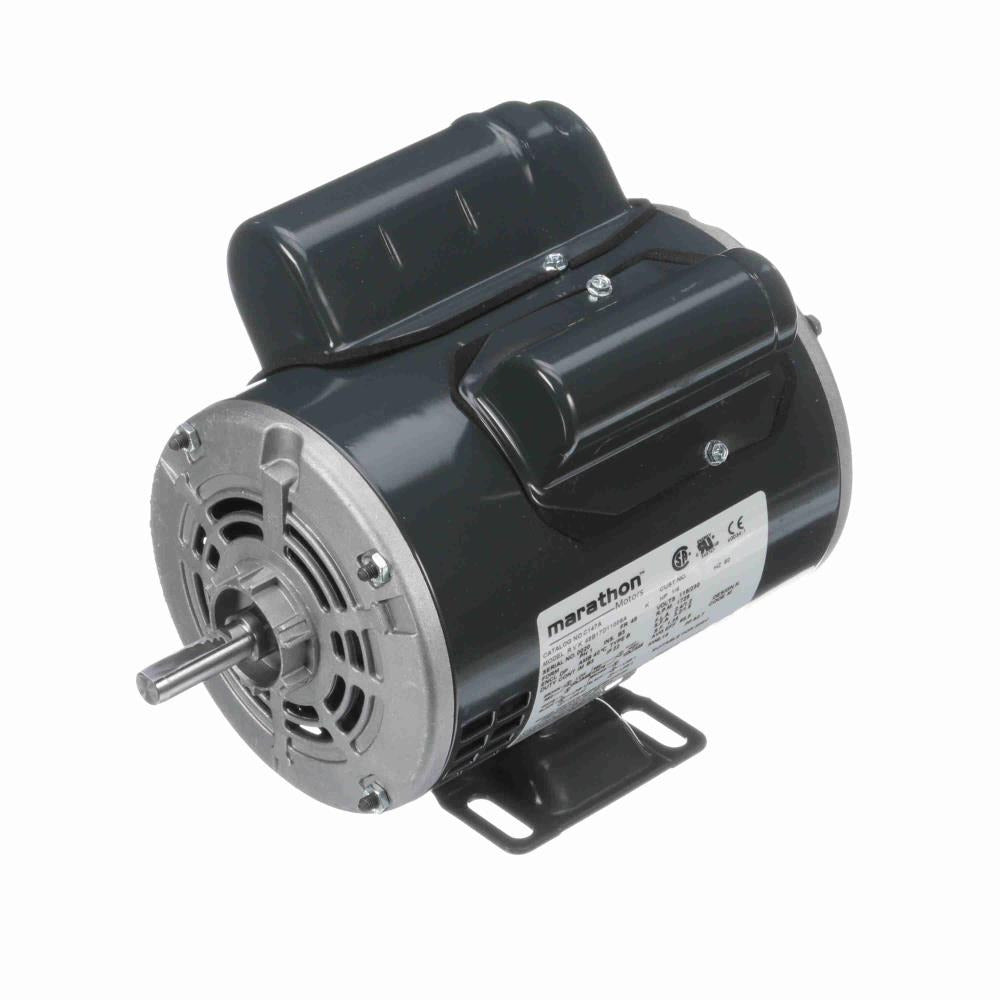

Marathon MC147A C147A General Purpose Motor 1/4 hp 1725 RPM 115/230 Volts Rigid Base

Product Description

The Marathon MC147A C147A General Purpose Motor is designed for a wide range of applications. This motor has a power rating of 1/4 horsepower and an operating speed of 1725 RPM. The motor operates on 115/230 volts and features a rigid base for easy installation.

• 1/4 horsepower
• 1725 RPM
• 115/230 volts

Product Highlights

This general-purpose motor is reliable for various electrical applications. It includes a cap start and features a durable rolled steel construction. The motor has a single-phase operation and a rigid mounting base. It is ideal for use in HVAC systems, fans, and other electric motor applications.

Product Information

Standard Information

• Brand: Marathon
• MPN: MC147A
• Frame: 48Z

Technical Specifications

• Horsepower: 1/4 hp
• Speed: 1725 RPM
• Voltage: 115/230
• Electrical Type: Cap Start
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Rotation: REV
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Amperage: 2.4/1.2 A
• Length: 17 inches
• Width: 13 inches
• Height: 9 inches
• Weight: 19 lbs
