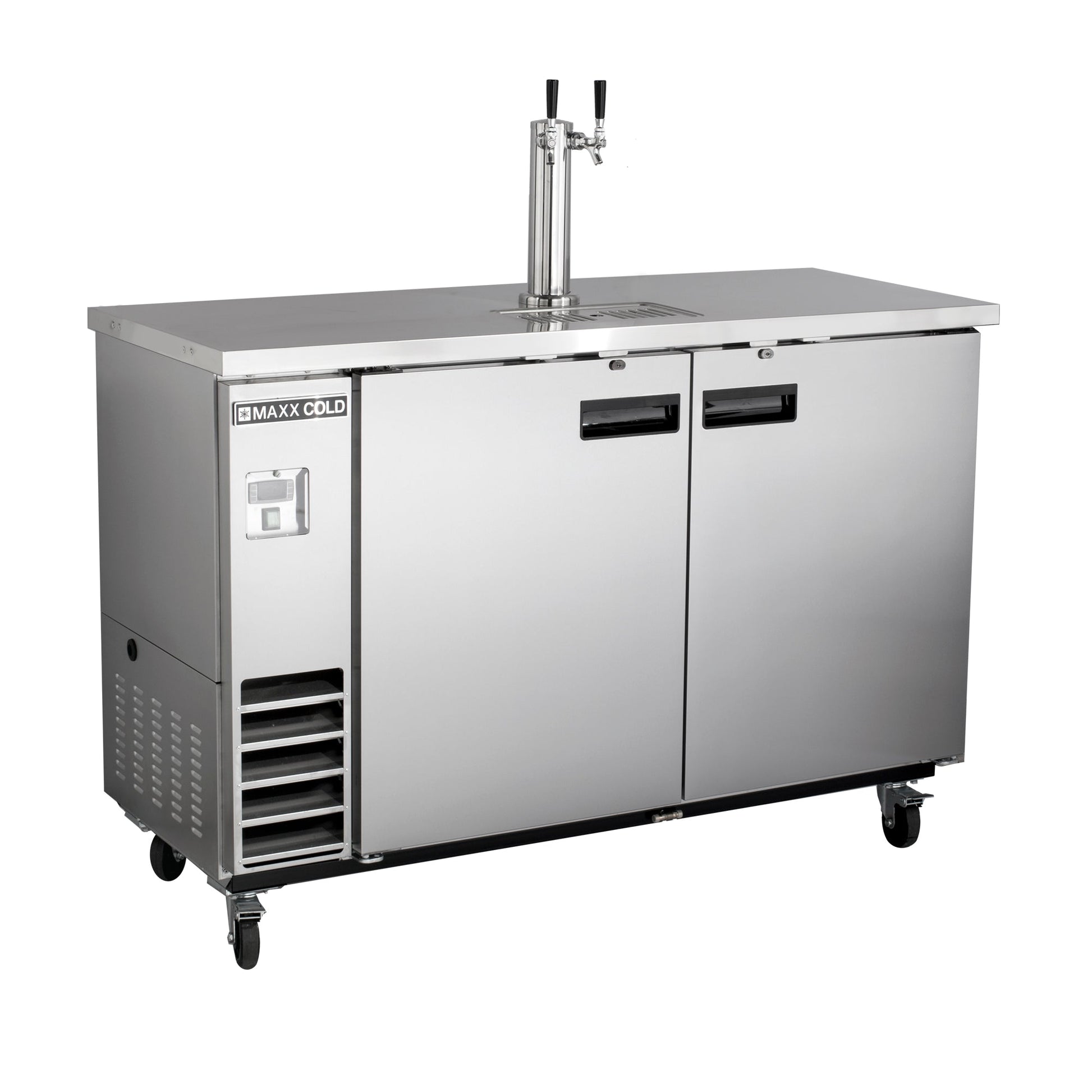

Maxx Cold Single Tower, 2 Tap Beer Dispenser, 61"W, 14.2 cu. ft., 2 Barrels/Kegs (402L) Storage Capacity, in Stainless Steel - MXBD60-1SHC
This 47.5-inch-wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 2 barrel/keg, providing up to 14.2 cubic feet (402L) of storage capacity. This beer tower is equipped with two 3” (77mm) diameter stainless steel insulated beer tower dispensers which can accommodate for two different liquids. This tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of durable and easy to clean stainless-steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispensers, which are mounted to the top center counter, are cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 2 barrels/kegs with storage capacity of 14.2 cubic feet (402L)
- One 3” (77mm) diameter polished stainless steel insulated beer tower dispenses two different liquids
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior and top is constructed of stainless steel to prevent damage
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Environmentally friendly R134A refrigerant
- Available in 120V/60Hz/1pH and International voltage options
Specifications
- Adjustable Shelves: No
- Adjustable Temperature Control: Yes
- Amperage: 3A
- Assembled Dimensions (LxWxH): 24.40" x 61.06" x 55.98"
- Assembled Weight (lb): 275.0
- Assembly Required: Yes
- Batteries Required: No
- Capacity: 2 Kegs
- Caster Size: 4"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 47.44"
- Depth - Excluding Door: 29.90"
- Depth - Excluding Handles: 29.90"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Stainless Steel
- Door Material: Stainless Steel
- Door Swing Orientation: French-Door
- Electric: Yes
- Features: Maxx Cold X-Series Keg Cooler with Single Tower & Dual Faucets, two-section, self-contained, side mounted compressor, 61"W, 14.2 cu. ft., +34°F to +41°F temperature range, (2) solid hinged locking doors, stainless steel top, (1) 3" dia. stainless steel draft tower with (2) faucets, stainless steel exterior, white powder coated steel interior with stainless steel floor plate, R290a Hydrocarbon refrigerant, cETLus, ETL-Sanitation
- First Zone Maximum Temperature: 41°
- First Zone Minimum Temperature: 33°
- Freezer Type: No Freezer
- Ice Maker Included: No
- Included Components: Refrigerator, Instruction Manual, Casters
- Installation Type: Freestanding
- Integrated Lock: Yes
- Material: Stainless Steel
- Number of Doors: 2.0
- Number of Items: 1.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 61"
- Temperature Range: 33° - 41°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Volume Capacity: 402L
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 360W
- Case Pack Dimensions: 62" x 40" x 31"
- Case Pack Weight: 302.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 125.0
What Our Experts Think
-
Single tower beer dispenser with 2 tap system for versatile draft service
-
14.2 cu. ft. storage capacity accommodates 2 full-size barrels/kegs (402L)
-
61" wide stainless steel design ensures durability and professional appearance
-
Includes drip tray and durable top surface for easy service and maintenance
-
Perfect for bars, pubs, restaurants, event venues, and catering operations
Q&A
Q: How many kegs can the MXBD60-1SHC hold?
A: It stores 2 full-size barrels/kegs (402 liters) at once.
Q: How many taps are included?
A: It comes with a 2-tap system on a single tower for pouring multiple selections.
Q: Who is this beer dispenser best suited for?
A: Ideal for bars, pubs, and restaurants needing reliable multi-keg draft dispensing.
Maintenance Tips
-
Clean beer lines and taps weekly to maintain taste and quality.
-
Sanitize keg couplers regularly to prevent buildup.
-
Wipe stainless steel top and exterior daily.
-
Check gasket seals to ensure cooling efficiency.
-
Vacuum condenser coils monthly for reliable performance.
