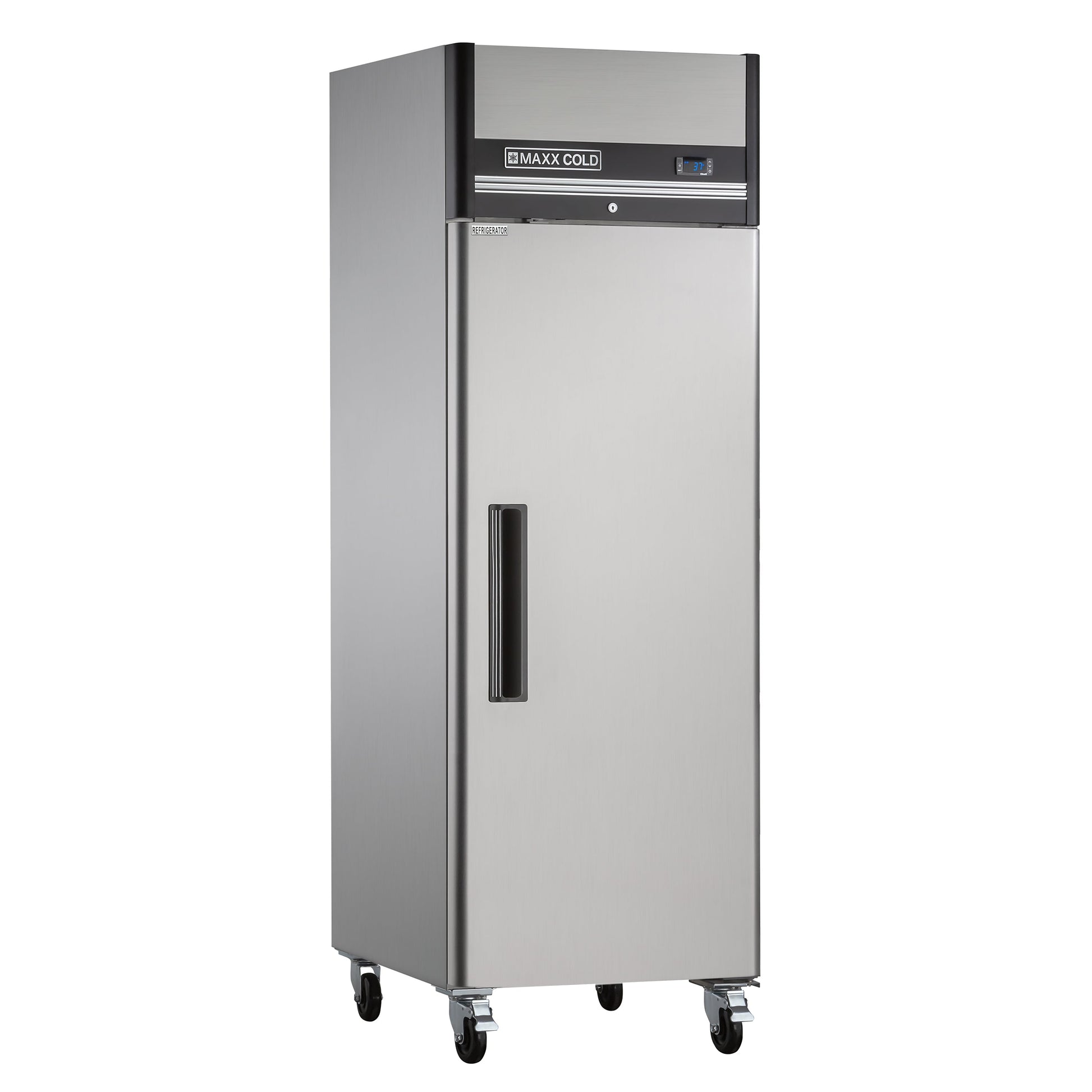

Maxx Cold Single Door Reach-In Refrigerator, Top Mount, 25.2"W, 19 cu. ft. Storage Capacity, in Stainless Steel - MXCR-19FDHC
Maxx Cold 25.2 inch wide single door, top mount reach-in refrigerator is designed to assist you in meeting all food service industry requirements while making its content easy to access. The cabinet is equipped with 3 heavy-duty fully adjustable and easy to clean PE coated wire shelves which can hold full size sheet pans and provides up to 19 cubic ft. (538 L) of storage capacity, while itâs slender and solid build makes it a great choice for limited spaces. In addition, this refrigerant is engineered with an open-door alert that beeps if the refrigerator is left open for three minutes and the single door model is field reversible. This environment friendly reach-in commercial grade refrigerator is constructed of durable stainless-steel (exterior) and sanitary white painted aluminum (interior). The unit is mounted on 4â diameter swivel caster wheels that can easily be maneuvered. Standard features on this premium indoor refrigerator include integrated energy saving interior LED lighting, automatic defrost function, lock and key set for security and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The environment friendly thick urethane foam insulation on this one-door commercial refrigerator provides outstanding thermal regulation and is energy efficient.
Features
- Durable stainless steel exterior with sanitary white painted aluminum interior
- Environment friendly urethane foam insulation
- Three (3) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Designed with recessed handles with door locks
- 4" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature 34°F to 41°F (1â°C to 5â°C)
- Open door alert beeps when door has been open for 3 minutes
- Hinged, self-closing doors
- Available in 120V/60Hz/1pH and International voltage options
- Nominal storage capacity of 19 Cubic Ft. (538 L)
Specifications
- Adjustable Shelves: Yes
- Adjustable Temperature Control: Yes
- Amperage: 3A
- Assembled Dimensions (LxWxH): 31.50" x 25.20" x 77.60"
- Assembled Weight (lb): 280.0
- Assembly Required: No
- Batteries Required: No
- Capacity: 19 cu. ft.
- Caster Size: 3"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 53.60"
- Depth - Excluding Door: 31.50"
- Depth - Excluding Handles: 31.50"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Stainless Steel
- Door Material: Stainless Steel
- Door Swing Orientation: Right
- Electric: Yes
- Features: Maxx Cold X-Series Upright Refrigerator, reach-in, 19 cu. ft storage capacity, one-section with solid self-closing locking door with recessed handle, open door alert, (3) adjustable heavy duty wire shelves, electronic thermostat & digital LED temperature display, 34° to 41°F temperature range, automatic defrost system & interior lightning, condensate evaporator, self-contained top mounted refrigeration system, stainless steel exterior, white painted aluminum interior, R290A refrigerant, cord, NEMA 5-15P, cETLus, ETL-Sanitation, DOE 2018 Compliant
- First Zone Maximum Temperature: 41°
- First Zone Minimum Temperature: 33°
- Freezer Type: No Freezer
- Fresh Food Capacity: 19 cu. ft.
- Height - Excluding Top Hinge: 77.60"
- Ice Maker Included: No
- Included Components: Refrigerator, Instruction Manual, Casters, PE Coated Shelves
- Installation Type: Freestanding
- Integrated Lock: Yes
- Material: Stainless Steel
- Number of Doors: 1.0
- Number of Items: 1.0
- Number of Shelves: 3.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 25.20"
- Temperature Range: 33° - 41°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 350W
- Case Pack Dimensions: 34" x 30" x 79"
- Case Pack Weight: 291.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 150.0
What Our Experts Think
-
Single door reach-in refrigerator with 19 cu. ft. storage capacity
-
25.2" wide, top-mount compressor runs cooler in hot kitchens and reduces floor dust intake
-
Stainless steel interior and exterior for durability and easy cleaning
-
Adjustable heavy-duty shelves maximize storage flexibility
-
Perfect for restaurants, cafés, catering kitchens, and compact commercial spaces
Q&A
Q: How much storage does the MXCR-19FDHC provide?
A: It offers 19 cu. ft. of refrigerated storage in a space-saving design.
Q: Why choose a top-mount compressor?
A: It helps with better airflow in hot kitchens and simplifies cleaning by reducing dust buildup.
Q: Who should use this refrigerator?
A: Best for small to medium foodservice operations needing reliable, durable refrigeration.
Maintenance Tips
-
Clean stainless steel surfaces daily with a mild cleaner.
-
Sanitize shelves and interior weekly.
-
Inspect door gasket regularly for a tight seal.
-
Avoid blocking airflow with overpacked shelves.
-
Vacuum condenser coils monthly for consistent performance.
