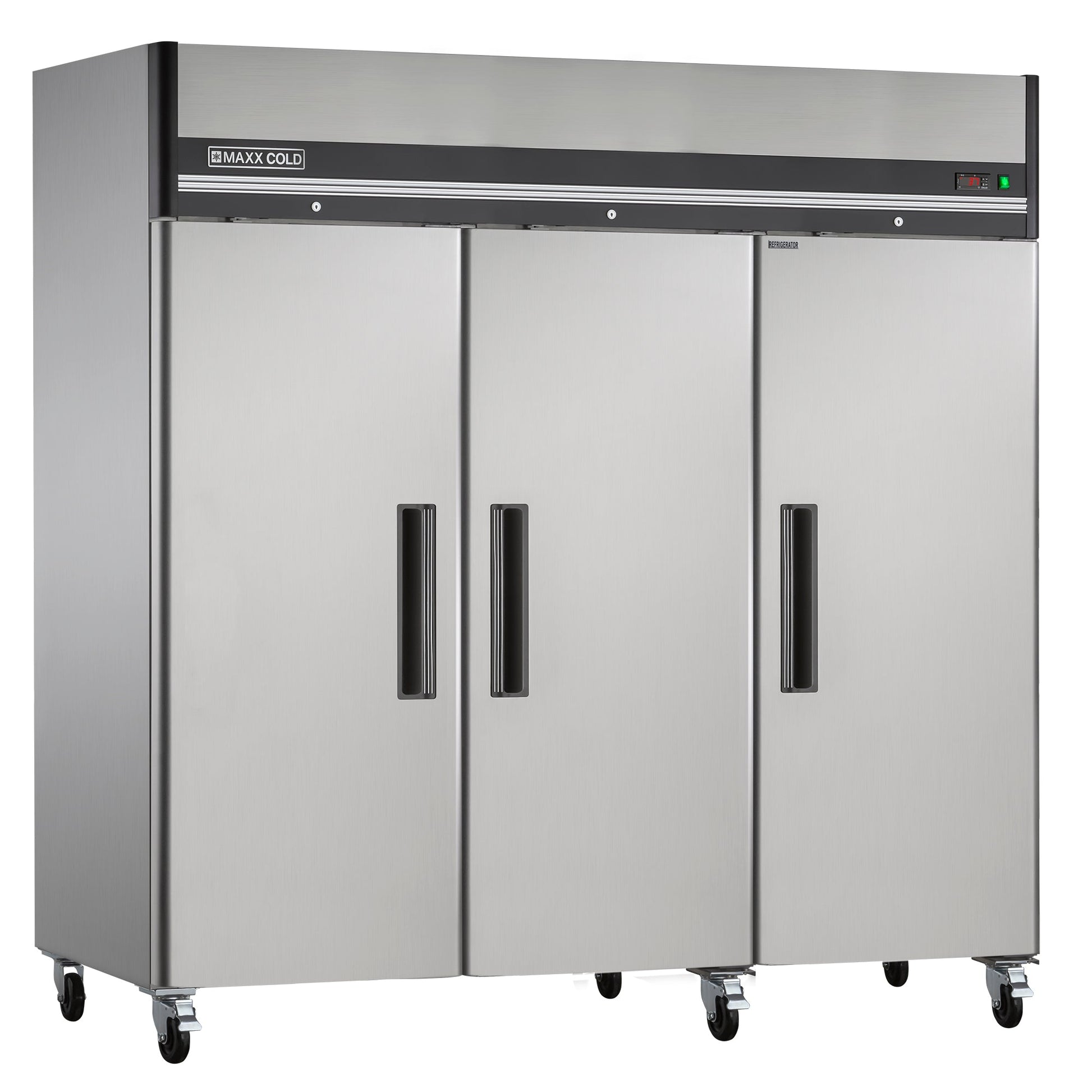

Maxx Cold Triple Door Reach-In Refrigerator, Top Mount, 81"W, 72 cu. ft. Storage Capacity, in Stainless Steel - MXCR-72FDHC
Maxx Cold 81 inch wide triple door, top mount reach-in refrigerator is designed to assist you in meeting all food service industry requirements while making its content easy to access. The cabinet is equipped with 9 heavy-duty fully adjustable and easy to clean PE coated wire shelves which can hold full size sheet pans and provides up to 72 cubic ft. (2,039 L) of storage capacity. In addition, this large triple door commercial refrigerator model is engineered with an open-door alert that beeps if the refrigerator is left open for three minutes. This environment friendly reach-in commercial grade refrigerator is constructed of durable stainless steel (exterior) and sanitary white painted aluminum (interior). The unit is mounted on 4â diameter swivel caster wheels that can easily be maneuvered. Standard features on this premium indoor refrigerator include integrated energy saving interior LED lighting, automatic defrost function, lock and key set for security and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The urethane foam insulation on this three-door commercial refrigerator provides outstanding thermal regulation and is energy efficient.
Features
- Durable stainless steel exterior with sanitary white painted aluminum interior
- Environment friendly urethane foam insulation
- Nine (9) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Designed with recessed handles with door locks
- 4" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature 34°F to 41°F (1â°C to 5â°C)
- Open door alert beeps when door has been open for 3 minutes
- Hinged, self-closing doors
- Available in 120V/60Hz/1pH and International voltage options
- Total storage capacity : up to 72 Cubic Ft. (2,039 L)
Specifications
- Adjustable Shelves: Yes
- Adjustable Temperature Control: Yes
- Amperage: 7A
- Assembled Dimensions (LxWxH): 32.70" x 81" x 82.25"
- Assembled Weight (lb): 468.0
- Assembly Required: No
- Batteries Required: No
- Capacity: 72 cu. ft.
- Caster Size: 4"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 55.20"
- Depth - Excluding Door: 32.70"
- Depth - Excluding Handles: 32.70"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Stainless Steel
- Door Material: Stainless Steel
- Door Swing Orientation: French-Door
- Electric: Yes
- Features: Maxx Cold X-Series Upright Refrigerator, reach-in, 72 cu. ft storage capacity, three-section with solid self-closing door with recessed handle, (9) adjustable coated wire shelves, electronic thermostat & digital LED temperature display, automatic defrost system & interior lightning, self-contained refrigeration, stainless steel exterior, white painted aluminum interior, R134A refrigerant, 3/4 HP top mounted compressor, cULus, UL EPH Classified, NSF
- First Zone Maximum Temperature: 41°
- First Zone Minimum Temperature: 33°
- Freezer Type: No Freezer
- Fresh Food Capacity: 72 cu. ft.
- Height - Excluding Top Hinge: 82.25"
- Ice Maker Included: No
- Included Components: Refrigerator, Instruction Manual, Casters, PE Coated Shelves
- Installation Type: Freestanding
- Integrated Lock: Yes
- Material: Stainless Steel
- Number of Doors: 3.0
- Number of Items: 1.0
- Number of Shelves: 9.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 81"
- Temperature Range: 33° - 41°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 840W
- Case Pack Dimensions: 87" x 40" x 81"
- Case Pack Weight: 639.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 150.0
- Usually Ships In: 7-10 Days
- Number of Boxes: 1.0
- Packaging Type: BROWN BOX
- Ship Type: LTL
- Shipped Assembled?: Yes
- Tariff Code (HTS): 8419.69.0180
- ADA Compliant: No
What Our Experts Think
-
Triple door reach-in refrigerator with a large 72 cu. ft. storage capacity
-
Top-mount compressor design helps reduce dust buildup and improves efficiency
-
Stainless-steel interior and exterior ensure durability and easy cleaning
-
Digital temperature controls deliver consistent, reliable refrigeration
-
Perfect for restaurants, hotels, schools, and catering operations requiring high-volume cold storage
Q&A
Q: How much storage does the MXCR-72FDHC provide?
A: It offers a massive 72 cu. ft. of refrigerated storage, making it ideal for high-demand kitchens.
Q: Why choose a top-mount compressor?
A: A top-mount design keeps the compressor away from floor dust and debris, improving performance and longevity.
Q: Is it built for heavy use?
A: Yes, the stainless-steel build ensures strength, hygiene, and long-lasting durability in commercial kitchens.
Maintenance Tips
-
Clean interior shelving and surfaces regularly for hygiene.
-
Inspect and replace door gaskets to maintain a tight seal.
-
Wipe stainless-steel surfaces frequently to preserve appearance.
-
Vacuum condenser coils (top-mounted) every 1â2 months.
-
Avoid blocking airflow inside for consistent refrigeration.
