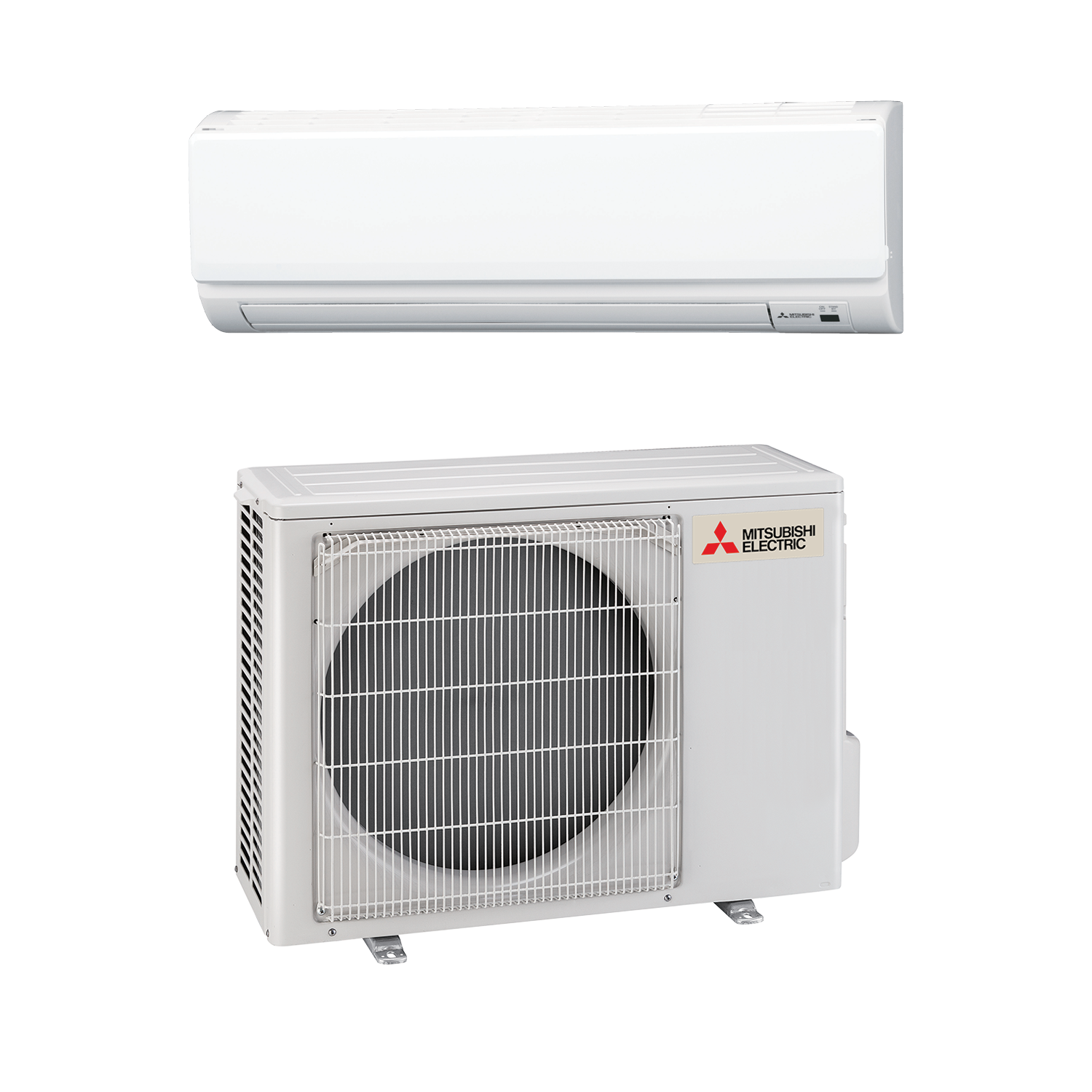

Mitsubishi 12,000 BTU P-Series Wall Mounted Single Zone Heat Pump System (PKA-A12LA & PUZ-A12NKA7) - PKA-A12LA/PUZ-A12NKA7
Mitsubishi's commercial 12,000 BTU wall mounted single zone heat pump (PKA-A12LA & PUZ-A12NKA7) is part of Mitsubishi's P-series. This single zone unit is perfect for server rooms, daycares, churches, small offices, and other business and commercial applications.
Mitsubishi Electric created the P-series systems for commercial applications. P-series systems like the PKA-A12LA & PUZ-A12NKA7 are built with more durable materials, meant to survive through dirtier, high trafficked environments.
This 12,000 BTU wall mounted single zone heat pump is super efficient and built to make sense for your business. It provides low ambient cooling down to 0 degrees Fahrenheit, and can cool continuously for 24 hours in the harshest conditions.
What Our Experts Think
-
A durable, commercial-grade solution built for demanding environments like server rooms, offices, classrooms, churches, and small retail spaces.
-
Offers stronger airflow and higher static capability than residential wall units, making it ideal for larger or open commercial rooms.
-
Designed for continuous operation—excellent for spaces that require consistent cooling or heating throughout the day.
-

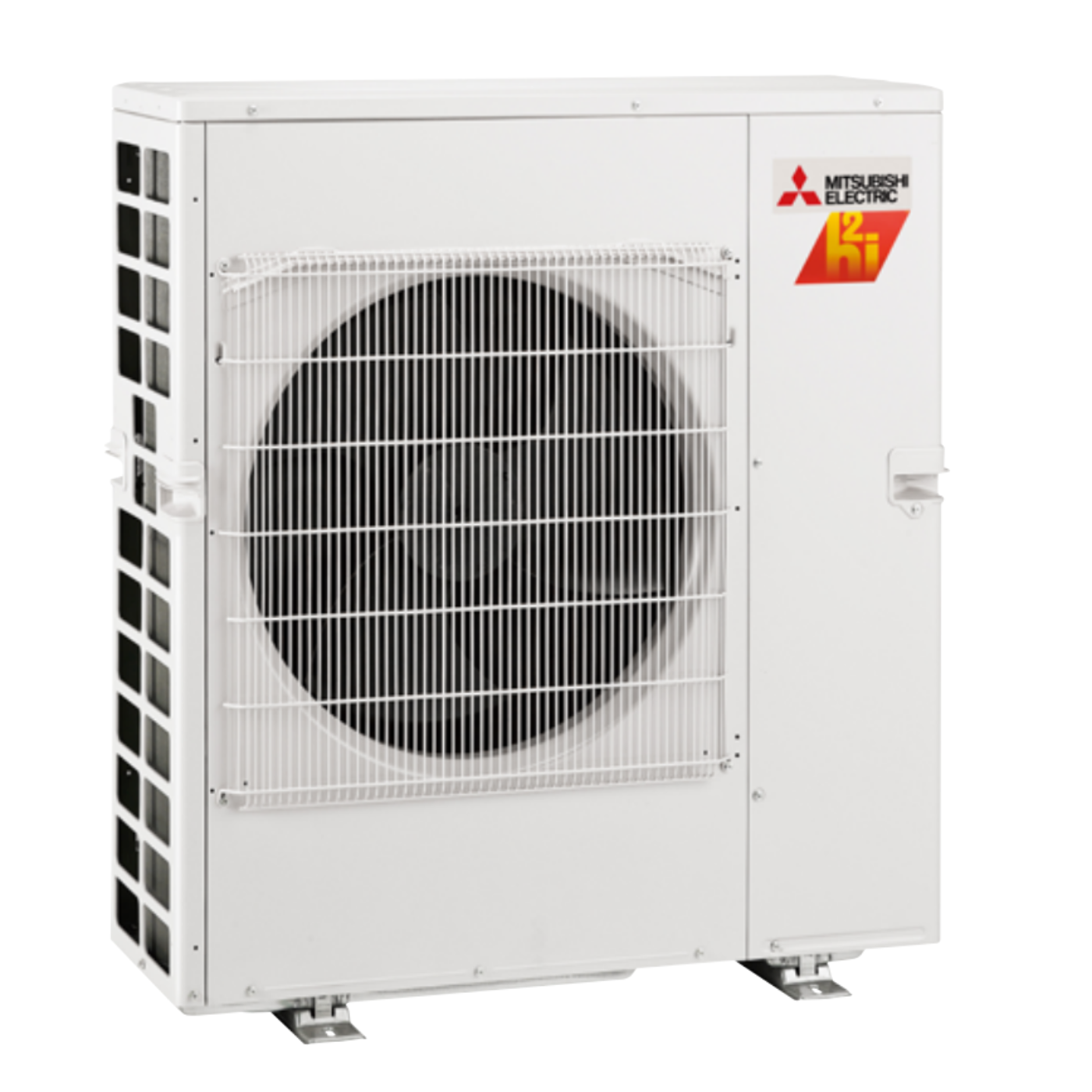

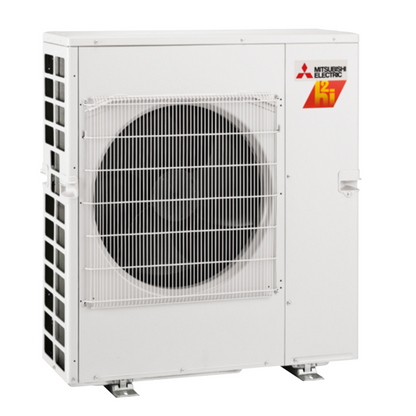

The P-Series outdoor unit is engineered for reliability and longevity, with enhanced compressor durability and built-in safeguards for mission-critical applications.
-
Straightforward installation and compatibility with a wide range of wired controllers suit commercial building standards.
-
More robust than standard M-Series minisplits, with better performance under high load and more rugged construction.
Q&A
-
Q: Is this system suitable for server rooms?
A: Yes—its high reliability and steady cooling performance make it a strong match for light-to-medium server rooms.
-
Q: What size space can this 12,000 BTU system handle?
A: Typically up to ~500 sq ft, depending on heat load, occupancy, equipment, and insulation.
-
Q: Can it run continuously?
A: Yes—P-Series systems are specifically designed for commercial, long-hour operation.
-
Q: Does it work with building controls?
A: Yes. It supports Mitsubishi’s commercial wired controllers and can integrate with third-party building management systems via optional interfaces.
-
Q: Is it louder than residential units?
A: Despite its commercial design, it operates quietly and smoothly, thanks to Mitsubishi’s INVERTER compressor technology.
Maintenance Tips
-
Clean or replace indoor filters monthly in high-use commercial environments.
-
Keep the outdoor unit clear of debris and maintain 12–24" of clearance around it for proper airflow.
-
Inspect electrical connections, drain line, and coil surfaces at least once per year—server rooms may need more frequent checks.
-
Verify the system’s temperature control accuracy periodically, especially in spaces with sensitive electronics.
-
Schedule professional servicing annually to maintain peak performance and extend equipment life.
