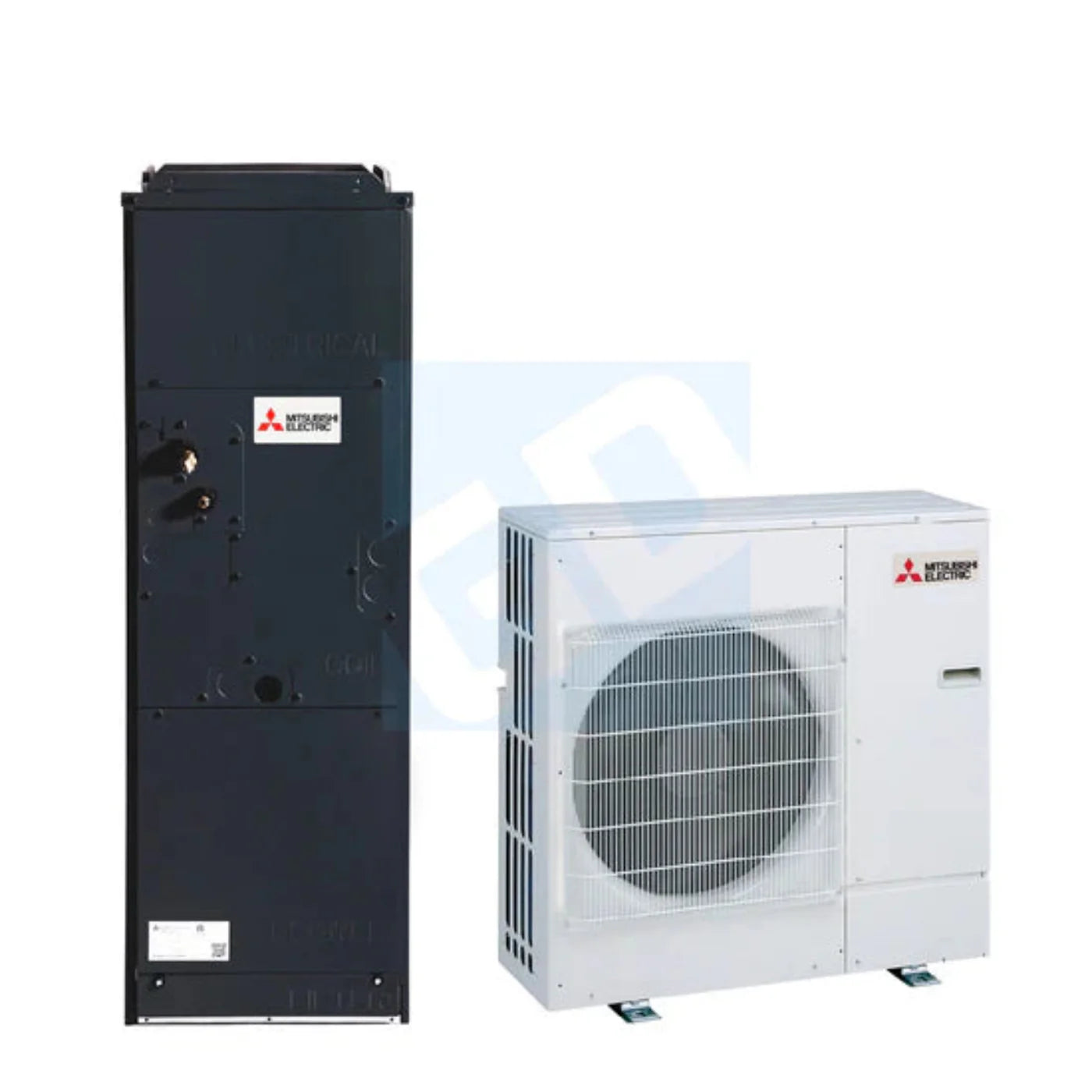

Mitsubishi 30,000 BTU 19 SEER Standard P-Series Multi-Position Air Handler Heat Pump System - A30NHA7
The Mitsubishi 30,000 BTU P-Series Multi-Position ducted air handler provides a solution to cool and heat zones in commercial spaces, or residential homes that need more capacity. It is unique in that it can be installed either vertically or horizontally. The PVA-A30AA7 & PUZ-A30NHA7 has selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting. It also has a 1 inch R4.2 fiberglass free insulation that reduces condensation and boosts efficiency.
This system is perfect for customers that need to condition an entire house with existing ducted work while still experiencing the savings and comfort that comes with all Mitsubishi products.
What Our Experts Think
-
The Mitsubishi 30,000 BTU P-Series Multi-Position Air Handler Heat Pump System (PVA-A30AA7 & PUZ-A30NHA7) is a high-capacity ducted solution built for both commercial environments and larger residential applications.
-
Its multi-position flexibility (horizontal or vertical installation) makes it ideal for mechanical rooms, attics, basements, and tight retrofit spaces.
-
With three selectable external static pressure settings (0.30 / 0.50 / 0.80 in. WG), this system is designed to pair effectively with long or complex duct runs in demanding installations.
-
The unit features fiberglass-free 1" R4.2 insulation, reducing condensation, improving efficiency, and supporting cleaner indoor air.
-
The outdoor heat pump delivers reliable year-round heating and cooling, making it a versatile choice for offices, apartments, retail areas, and mixed-use buildings.
Q&A
Q: What size area can this 30,000 BTU system handle?
A: Typically 1,200–1,500 sq ft, depending on duct design, insulation, and regional climate.
Q: Where is a multi-position air handler most beneficial?
A: Spaces requiring installation flexibility—mechanical closets, attics, basements, or retrofit applications where airflow direction must adapt to existing ductwork.
Q: Does it support long duct runs?
A: Yes—the selectable static pressure levels allow the system to handle more complex or extended ducting compared to standard residential units.
Q: Is the insulation important?
A: Absolutely—its fiberglass-free design reduces the risk of airborne fiberglass particles and improves moisture control and thermal performance.
Q: Is this suitable for commercial applications?
A: Yes—this P-Series configuration is engineered for light commercial use, with durable components and a higher capacity than basic mini-split systems.
Maintenance Tips
-
Replace or clean air filters monthly to quarterly, depending on usage and space conditions.
-
Inspect ductwork annually for leaks, kinks, or airflow restrictions.
-
Keep the outdoor unit clear of debris with at least 24 inches of clearance for optimal operation.
-
Have a professional check static pressure settings during installation and at yearly tune-ups.
-
Clean the condensate pan and drain line at least once per year to prevent clogs or excess moisture.
