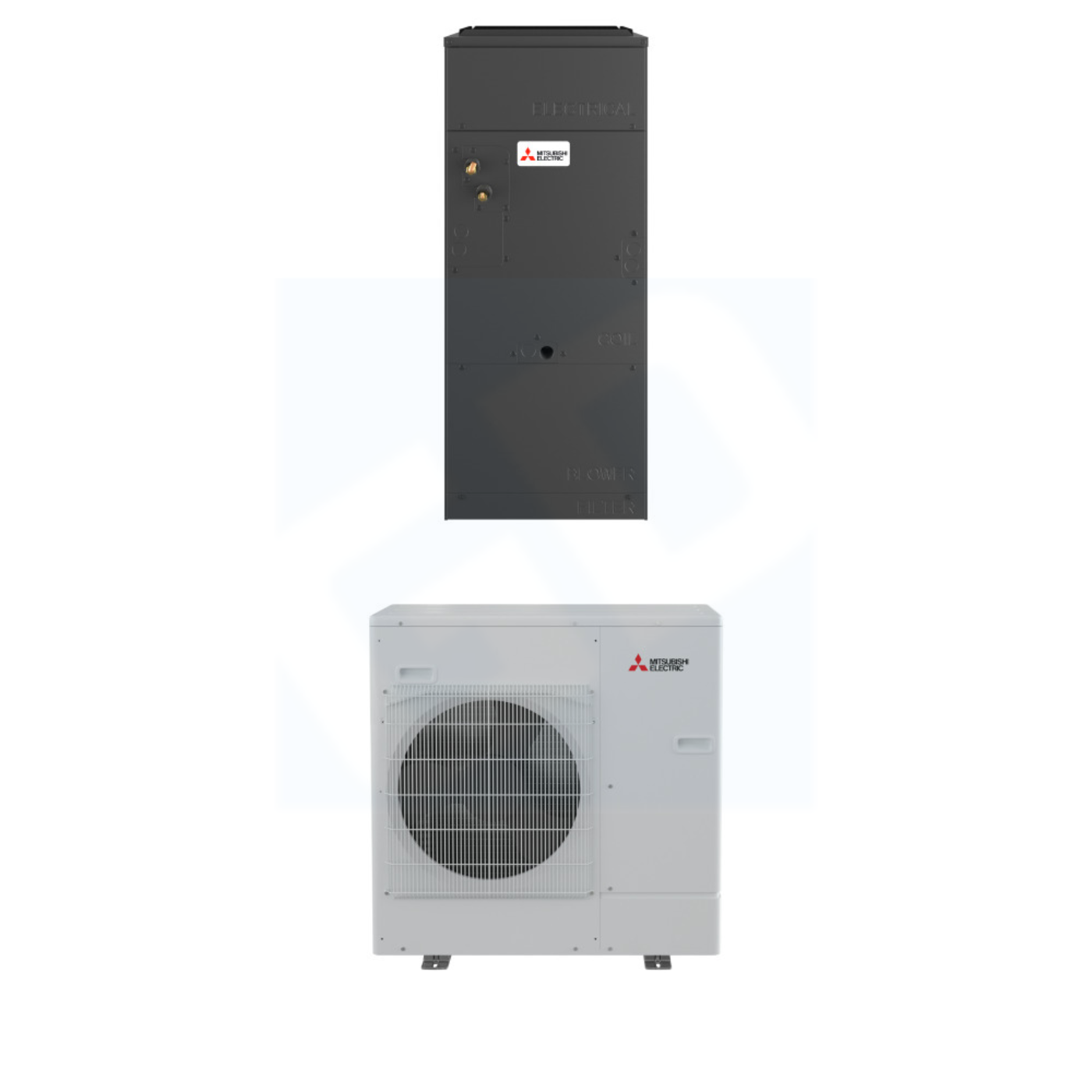

Mitsubishi PVA-AA30NL & PUZ-AH30NL 30,000 BTU 18 SEER2 Multi-Position Air Handler Heat Pump System - R454B - PVAAA30NL/PUZAH30NL
The Mitsubishi PVA-AA30NL indoor air handler combined with the PUZ-AH30NL outdoor unit delivers 30,000 BTU of efficient heating and cooling for single-zone applications up to approximately 1,250 sq ft. Designed for flexible installation, the multi-position indoor unit supports upflow, downflow, and horizontal orientations, making it suitable for tight mechanical rooms, attics, or closets.
Equipped with an INVERTER-driven compressor and using environmentally friendly R-454B refrigerant, this system provides precise temperature control and superior energy efficiency with ENERGY STARcertification. The PUZ-AH30NL condenser ensures reliable low-ambient heating down to –4 °F and cooling performance to 0 °F, enhanced by Blue Fin corrosion-resistant coating for durability in coastal or harsh environments.
Quiet operation, smart control compatibility, and optional electric heat kits complete this versatile, high-performance ducted heat pump system.
Features
-
INVERTER-Driven Compressor: Efficient, responsive heating and cooling modulation
-
Multi-Position Air Handler: Supports horizontal, upflow, or downflow installation
-
Selectable External Static Pressure: 0.30, 0.50, or 0.80 in.WG to match duct systems
-
Low-Ambient Capability: Operates down to 0 °F cooling and –4 °F heating
-
Blue Fin Coil Protection: Enhanced durability for coastal and harsh environments
-
Quiet Operation: Indoor sound levels as low as 33 dB(A)
-
Smart Control Ready: Compatible with wired/wireless remotes, third-party thermostats, and Mitsubishi Comfort App (adapter required)
-
Optional Electric Heat Kit and ERV/Humidifier Terminals
What Our Experts Think
-
30,000 BTU multi-position air handler ideal for single-zone spaces up to ~1,250 sq ft.
-
Hyper-Heat technology ensures efficient year-round heating and cooling.
-
Flexible multi-position installation: upflow, downflow, or horizontal orientation.
-
Compact design fits attics, closets, or tight mechanical rooms.
-
Uses eco-friendly R454B refrigerant for environmentally responsible performance.
Q&A
-
Q: What size area is suitable for this system?
A: Ideal for single-zone spaces up to ~1,250 sq ft.
-
Q: Can it provide both heating and cooling?
A: Yes, designed for year-round comfort.
-
Q: Where can it be installed?
A: Flexible upflow, downflow, or horizontal installation for tight spaces.
-
Q: What refrigerant does it use?
A: R454B, a low-GWP, environmentally friendly refrigerant.
Maintenance Tips
-
Clean or replace filters monthly to maintain airflow and efficiency.
-
Schedule annual professional maintenance for refrigerant and system performance.
-
Keep outdoor unit free of debris for optimal operation.
-
Inspect indoor unit and mounting periodically for stability.
-
Ensure condensate lines remain unobstructed to prevent water damage.
