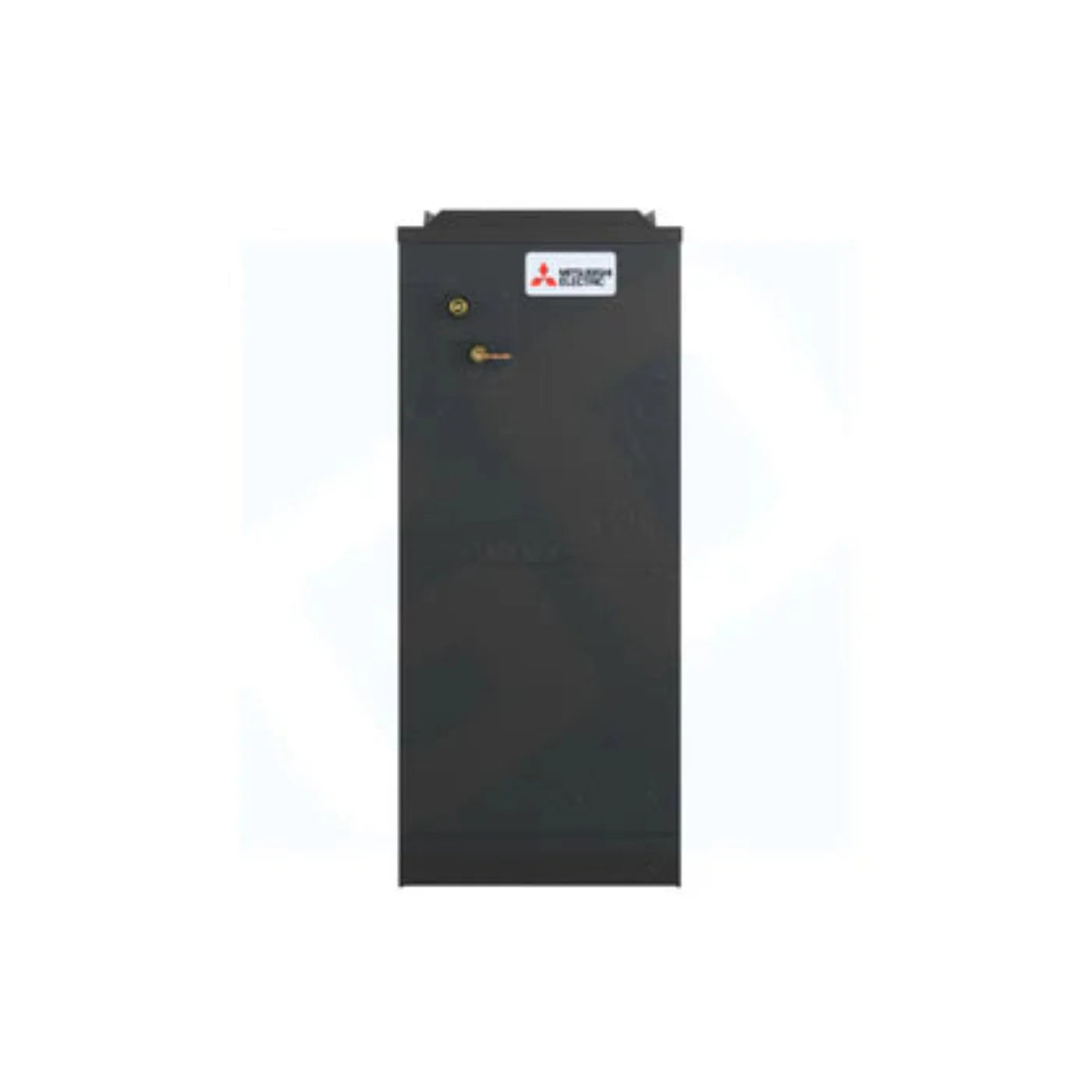

Mitsubishi SVZ-AP12NL 12,000 BTU Multi-Position Air Handler Indoor Unit - R454B - SVZAP12NL

Mitsubishi SVZ-AP12NL 12,000 BTU Multi-Position Air Handler Indoor Unit - R454B - SVZAP12NL

1 Review

10% Sale

Only left!


free delivery


Limited Stocks

In Stock - Ready to be Shipped

Regular price $1,878.99 Sale price $1,691.99
Shipping calculated at checkout.

Quintity

View full details
SALE ENDS IN
07 HRS
23 MINS
28 SECS
DON'T MISS IT!

Popular Add on

$30.00

$70.00

Add-Ons Bundle

$70.00

Bundle Offer

$0.00

$100.00

Recently Viewed

Mitsubishi SVZ-AP12NL 12,000 BTU Multi-Position Air Handler Indoor Unit - R454B - SVZAP12NL

The Mitsubishi SVZ-AP12NL is a 12,000 BTU ducted mini-split indoor unit designed for flexible multi-position installation. Ideal for 500 sq ft spaces, it supports inverter tech, offers high static pressure, and allows Wi-Fi control with optional accessories. Quiet, efficient, and space-saving.

Features

• Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
• Enclosed ECM motor: Highly efficient totally enclosed ECM motor
• Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
• Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is
recommended for proper management of condensate to prevent water blow-off in certain conditions
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Optional electric heat kit: Optional electric heat kit for additional heat capacity
• Optional humidifier control and ERV control
• Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
• Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed

What Our Experts Think
  • Compact 12,000 BTU multi-position air handler ideal for ducted spaces up to 500 sq ft.

  • Flexible installation with high static pressure capability for varied duct layouts.

  • Inverter technology delivers quiet, energy-efficient heating and cooling.

  • Wi-Fi compatible with optional accessories for convenient remote control.

  • Space-saving design suitable for residential or light-commercial applications.

Q&A

Q: What room size is this unit suitable for?
A: Up to 500 sq ft.

Q: Can it be installed in multiple positions?
A: Yes, designed for flexible multi-position installation.

Q: Does it support smart controls?
A: Yes, Wi-Fi control is available with optional accessories.

Q: Is it quiet?
A: Yes, engineered for low-noise operation.

Maintenance Tips
  • Clean or replace air filters every 4–6 weeks to maintain efficiency.

  • Inspect ductwork connections to ensure optimal airflow.

  • Keep the area around the unit free of dust and debris.

  • Schedule annual professional servicing to check refrigerant levels and overall system health.

  • Monitor for unusual noise or reduced airflow as early indicators of maintenance needs.
