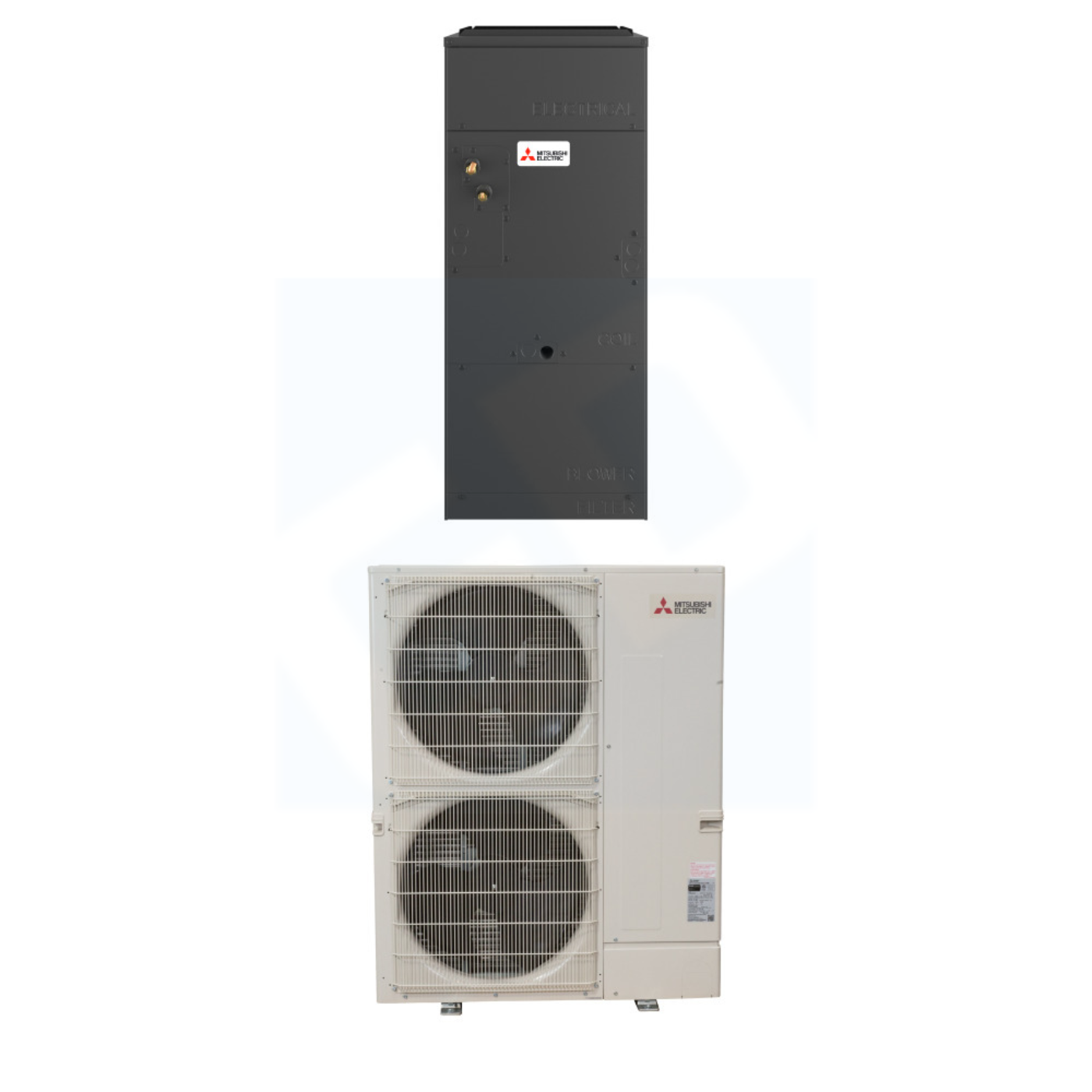

Mitsubishi Electric SVZ-AP30NL & SUZ-AA30NL 30,000 BTU 17.8 SEER2 Multi-Position Air Handler Heat Pump System - R454B - SVZAP30NL/SUZAA30NL
The Mitsubishi SVZ-AP30NL & SUZ-AA30NL is a high-efficiency 30,000 BTU ducted heat pump system designed for superior comfort in residential or light commercial spaces. Featuring an INVERTER-driven compressor, it ensures precise temperature control and energy savings. The SVZ-AP30NL indoor air handler offers multi-position installation and fiberglass-free insulation, while the SUZ-AA30NL outdoor unit provides reliable performance with technologies like Pulse Amplitude Modulation and Blue Fin anti-corrosion coating.
Ideal for single-zone applications, this system delivers quiet operation, customizable airflow, and advanced control options, including the comfort app for remote access. It’s perfet for efficient, year-round comfort in spaces up to ~1,250 sq ft.
Features
-
INVERTER-Driven Compressor
Provides precise capacity control for consistent temperatures and reduced energy consumption.
-
Multi-Position Installation
Supports horizontal (left or right) and vertical (up or down) configurations; CMA-1 recommended for downflow setups to manage condensate.
-
Quiet Operation
Operates at 65 dB(A) for both cooling and heating, comparable to a typical conversation.
-
Blue Fin Anti-Corrosion Coating
Protects the outdoor unit’s heat exchanger from corrosion in coastal or industrial environments.
-
Energy Efficient
Features Pulse Amplitude Modulation and Joint Lap DC Motor for enhanced efficiency and reliability.
-
Selectable Static Pressure
Offers three fan speeds with static pressure settings (0.30, 0.50, 0.80 in.WG) for customized airflow.
-
Positive Pressure Cabinet
Ensures air leakage of less than 1.0% at 1.0 in.WG, improving efficiency.
-
Advanced Control Options
Compatible with the comfort app, third-party interfaces, and wired/wireless controllers for remote management.
-
Hot-Start Technology
Prevents cold air blasts by activating the fan only when the heat exchanger is warm.
-
High-Performance Grooved Piping
Enhances heat exchange efficiency for improved performance.
What Our Experts Think
-
30,000 BTU output delivers reliable heating and cooling for residential and light commercial spaces.
-
INVERTER-driven compressor ensures precise temperature control and energy efficiency.
-
Multi-position air handler allows flexible installation in various duct configurations.
-
Fiberglass-free insulation improves airflow and system efficiency.
-
Outdoor unit features Blue Fin anti-corrosion coating and Pulse Amplitude Modulation technology for long-term reliability.
Q&A
Q: What spaces is this system suited for?
A: Ideal for residential or light commercial areas.
Q: Can it be installed in multiple positions?
A: Yes, multi-position indoor air handler provides installation flexibility.
Q: How energy-efficient is it?
A: 17.8 SEER2 rating ensures energy savings with precise inverter-driven control.
Q: What refrigerant does it use?
A: Eco-friendly R‑454B.
Maintenance Tips
-
Clean or replace filters monthly to maintain airflow.
-
Inspect indoor air handler and outdoor condenser for debris.
-
Schedule annual professional servicing to ensure inverter and system efficiency.
-
Ensure proper clearance around indoor and outdoor units.
-
Check refrigerant levels periodically with a certified technician.
