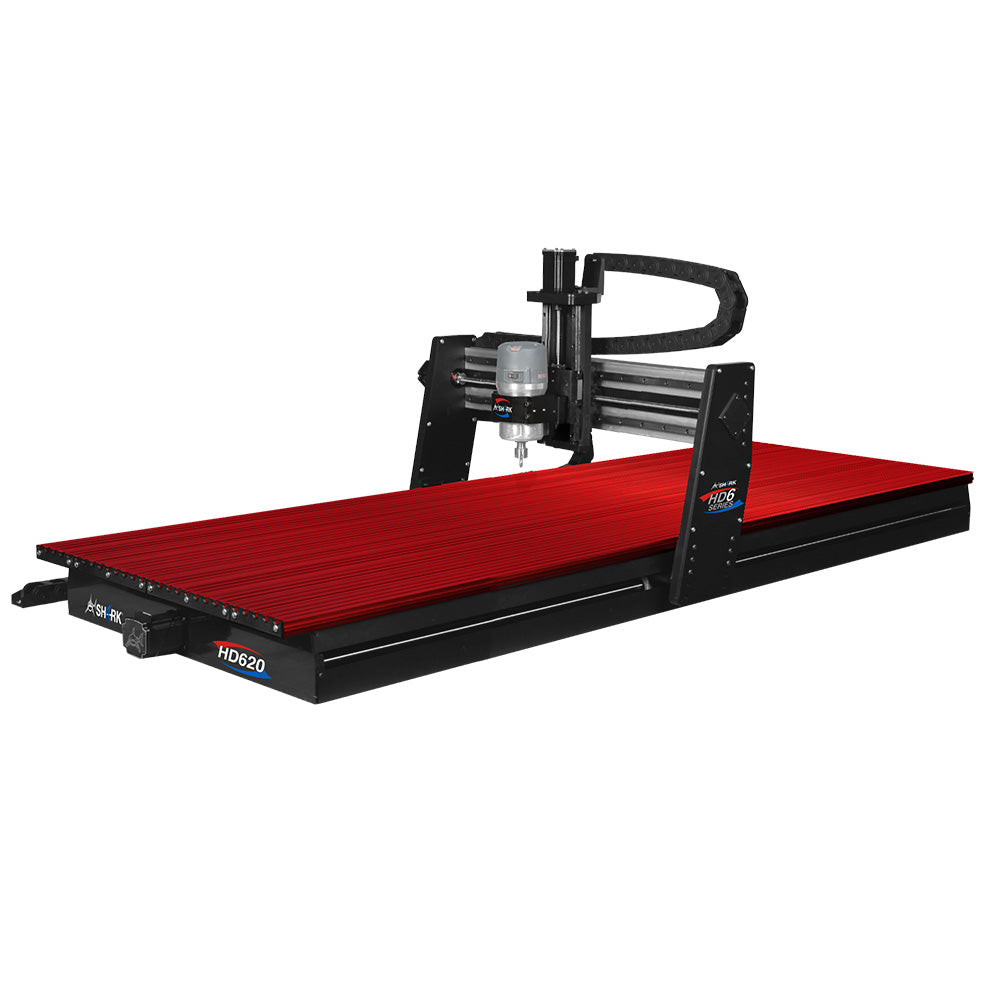

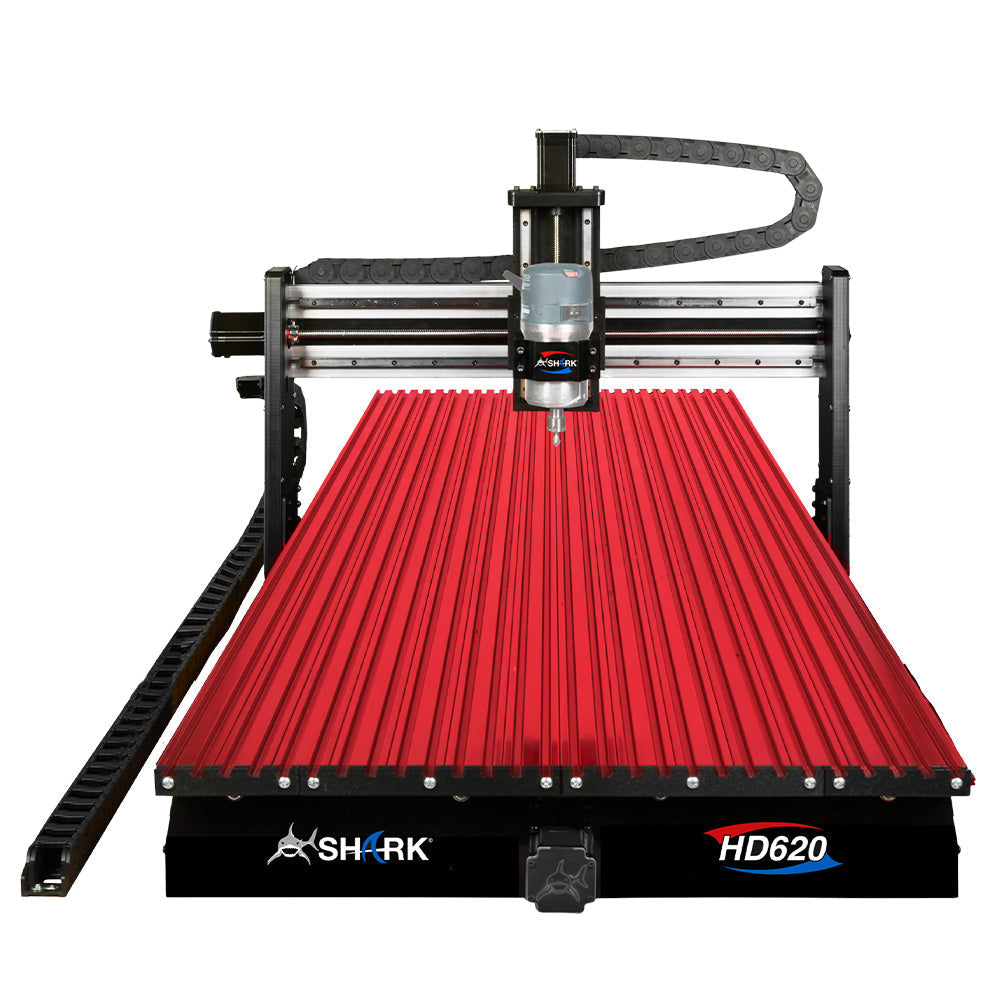

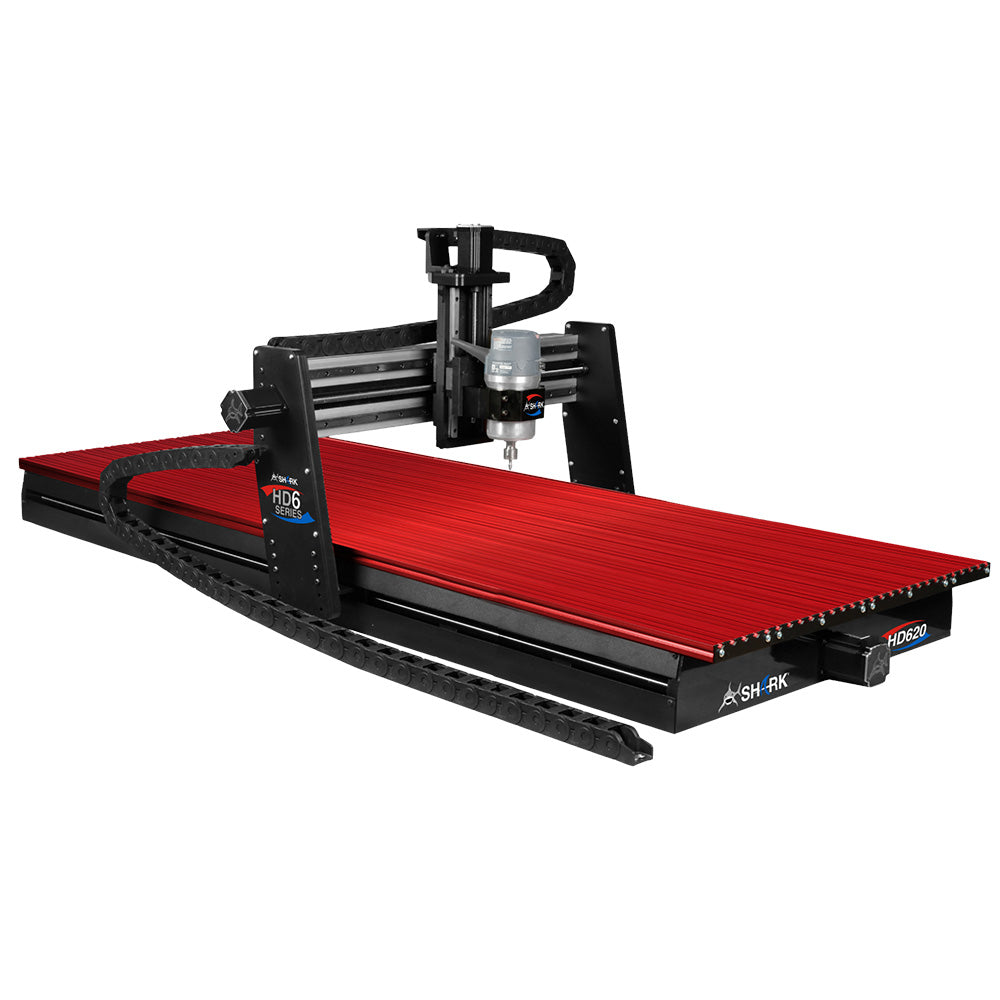

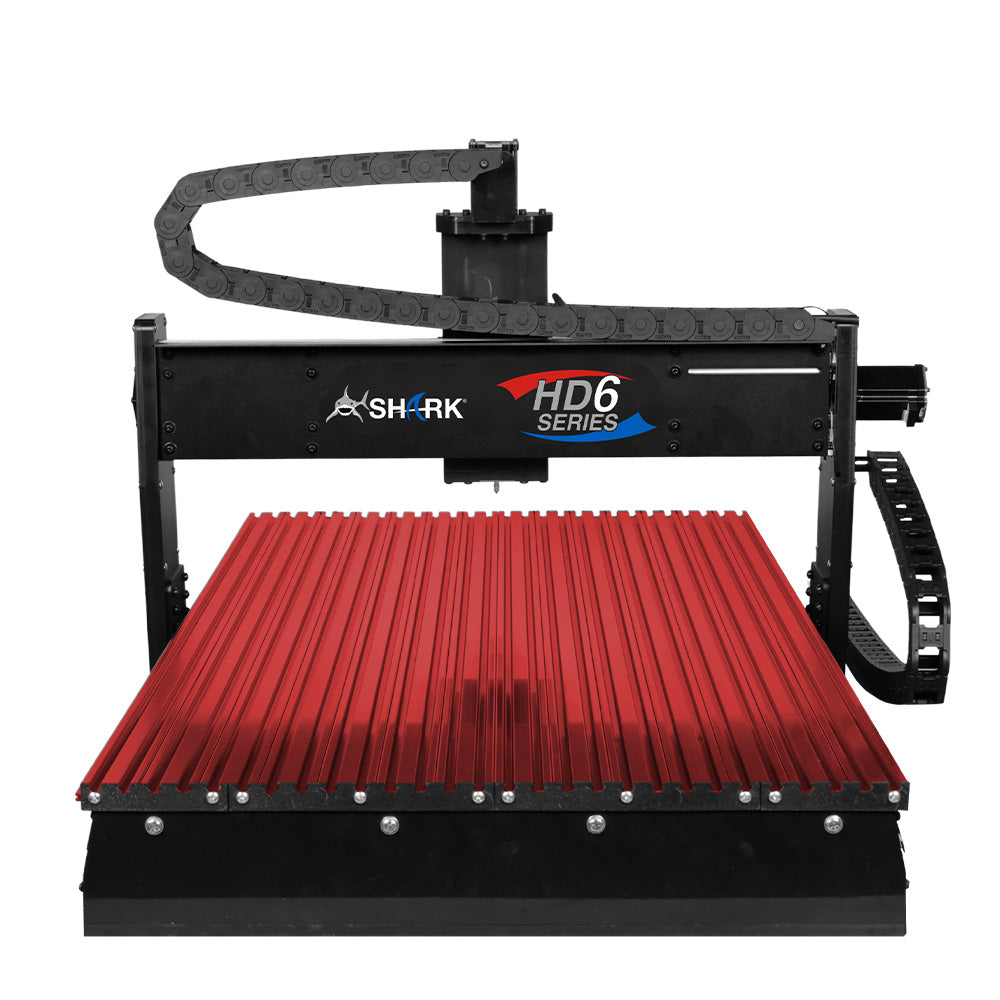

Next Wave CNC's Shark HD6 Series is engineered to meet the needs of makers, woodworkers, and professionals alike. These CNCs feature enhanced mechanics, cutting-edge electronics, and flexible configurations. The Shark HD620 is designed to excel in both home workshops and production environments.
The Shark HD620 is built on the proven HD520 foundation with significant enhancements. The HD620 features an expanded cutting area of 50" x 25.75" x 7" for tackling larger, more complex projects. Linear gantry rails on the heavy-duty table provide uncompromising stability.
Built with industrial-grade components, the Shark HD620 is designed to last. The aluminum cradle makes it easy to secure any router with a 3.5" barrel diameter (sold separately). Upgraded lead screws allow cutting at higher speeds, and precision-ground, vibration-dampening couplers ensure smoother operation with improved cut quality. Enhanced 36V controller electronics deliver more power to the motors, enabling speeds up to 600 IPM.
Shark HD6 Series CNCs were also built with convenience in mind. The redesigned aluminum "X-box" offers better access for tramming and maintenance. Removeable side skirts with magnetic interlocks simplifies cleaning your CNC while also protecting you during the process.
This CNC router offers 3D carving capability with a 3D model library included. It also offers two control options:
- Using the included VCarve Pro Design Software, you create your project and transfer it to a USB drive which plugs directly into the LCD pendant. The convenient touch screen Pendant interface eliminates the need for a computer controlling the CNC in your shop.
- For more control interactivity, you can run the Shark HD620 from your computer with the Ready2Control program. This lets you use the exclusive patented Virtual Zero Unlimited program. This program will adjust your design to fit curves and angles that would be impossible on other brands of machines. (Computer and flash drive not included).
The HD620 is also compatible with Aspire, Fusion 360, Cam Master, and more. Proudly made in the USA. Carries a 2-Year Warranty.
[TABS]
Features
-
Expanded Cutting Area: 50โ x 25.75โ x 7โ for tackling larger, more complex projects with ease.
-
Heavy-Duty Build: 28โ x 63โ table with linear gantry rails for uncompromising stability.
-
Aluminum Router Cradle: Designed for any router motor with 3.5โณ barrel diameter.
-
Enhanced Gantry Design: Engineered for superior accuracy and long-term reliability.
-
Upgraded Lead Screws: Precision components that allow for higher cutting speeds.
-
Precision-Ground, Vibration-Dampening Couplers: Ensures smoother operation and improved cut quality.
-
Larger Drag Chain: Accommodates both cables and spindle hoses for a cleaner, more organized workspace.
-
Redesigned Aluminum X-Box: Improved access for tramming and maintenance.
-
Removable Side Skirts with Magnetic Interlocks: Simplifies cleaning and access while maintaining safety.
-
Upgraded 36V Controller Electronics: Delivers more power to the motors, enabling speeds up to 600 IPM.
- Made in the USA.
- USA-based technical support.
- 2-Year Warranty.
Specs
Overall dimensions (L x W x H): 63" x 36-1/4" x 24-1/2"
Includes
- Vectric VCarve Pro software
- Ready2Control software
- Virtual Zero Unlimited software
- Interlocking rigid aluminum table
- 90ยฐ Carbide V-bit for sign carving
- (2) Hold down clamps
