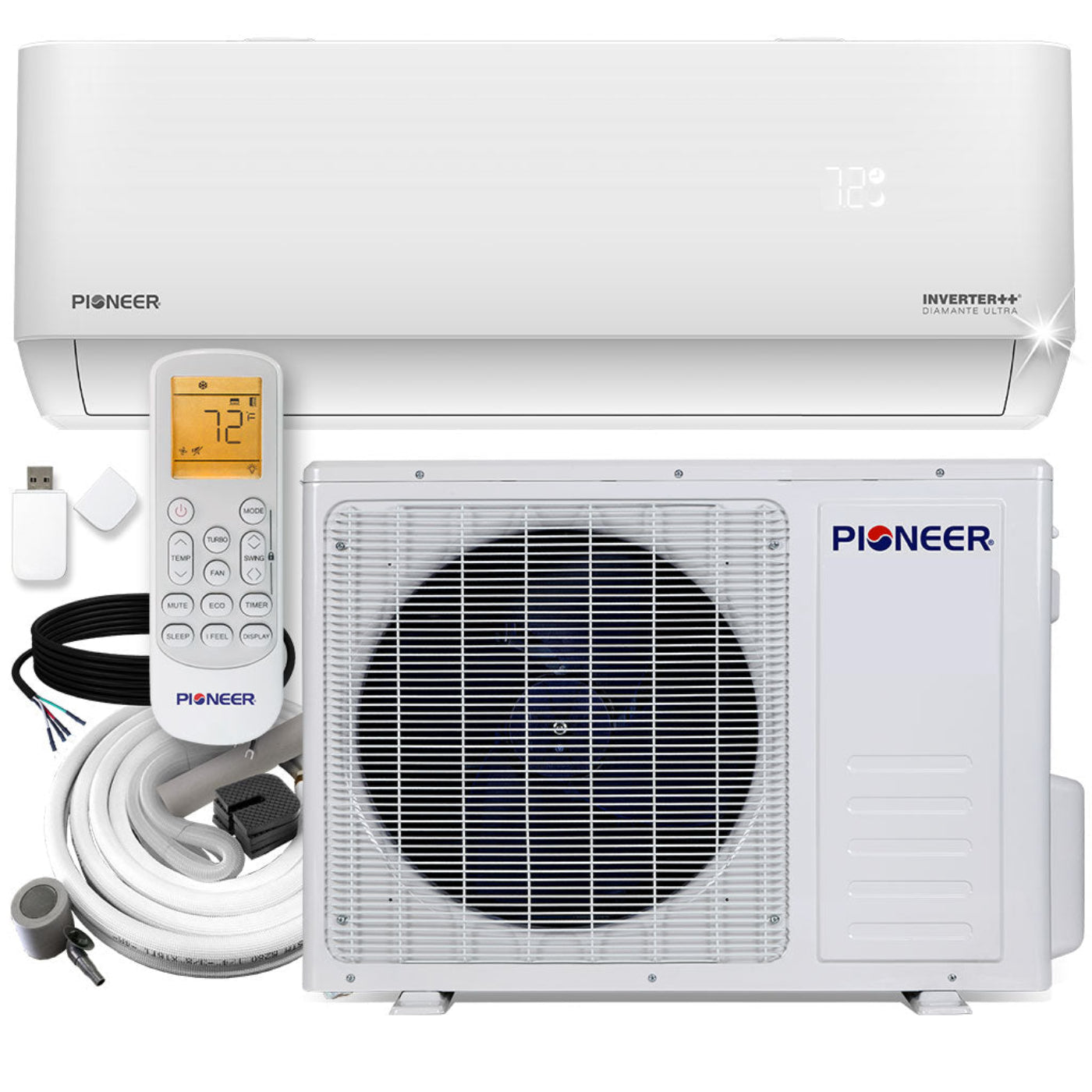

Pioneer Diamante Ultra 9,000 BTU 23 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 115V with 16 Ft. Kit - WYT009ALFI22RL
-
Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 9.0 HSPF2 / 3.5 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $54.00
- Heating: $201.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
-
5 years Warranty for Parts (Extendable to up to 7 years)
-
5 years for Compressor (Extendable to up to 10 years)
Features
Technical Information
Performance Data
-
Power Supply: 115V, 60Hz, 1Ph
-
Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
-
Rated Power Input (Cooling): 710W
-
Cooling SEER2: 23.0 BTU/W.h
-
Cooling EER2: 12.5 BTU/W.h
-
Heating Rated Capacity: 9,500 BTU/h (0.8 Ton)
-
Rated Power Input (Heating): 730W
-
Heating HSPF2: 9.0 BTU/W.h
-
Heating C.O.P.: 3.5 W/W
-
Refrigerant Type: R410A
-
Recommended Application Area: 100~350 Sq.Ft
Indoor Unit Data
-
Part Number: WT009ALFI22HLD
-
Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
-
Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
-
Net Dimensions (WDH): 32-1/4 x 7-5/8 x 12 Inches
-
Carton Dimensions (WDH): 35 x 10-3/8 x 15 Inches
-
Net / Gross Weight: 19.8 / 24.3 Lbs
Outdoor Unit Data
-
Part Number: YN009ALFI22RPD
-
Sound Level: 50 dB(A)
-
Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
-
Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
-
Net / Gross Weight: 51.8 / 56.2 lbs
-
Electrical Circuit Size: 20A (single-pole)
Manuals
What Our Experts Think
-
9,000 BTU capacity ideal for bedrooms, offices, and small rooms.
-
Ultra-high 23 SEER2 rating with Energy-Star certification for maximum efficiency.
-
Inverter++ technology ensures precise temperature control and quiet operation.
-
Wi-Fi enabled for smart home integration and remote control.
-
115V compatibility allows easy installation with standard home power.
-
Includes a 16 ft. kit for convenient setup.
Q&A
Q: What room size is this best for?
A: Perfect for small rooms up to ~400 sq. ft., such as bedrooms or home offices.
Q: Does it provide both heating and cooling?
A: Yes, inverter heat pump technology offers efficient year-round comfort.
Q: Can I control it with my phone?
A: Yes, Wi-Fi connectivity allows remote control through a smartphone app.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks for peak efficiency.
-
Keep the outdoor condenser free of dirt, leaves, and obstructions.
-
Inspect refrigerant lines and electrical connections annually.
-
Schedule professional maintenance once per year to maintain performance.
