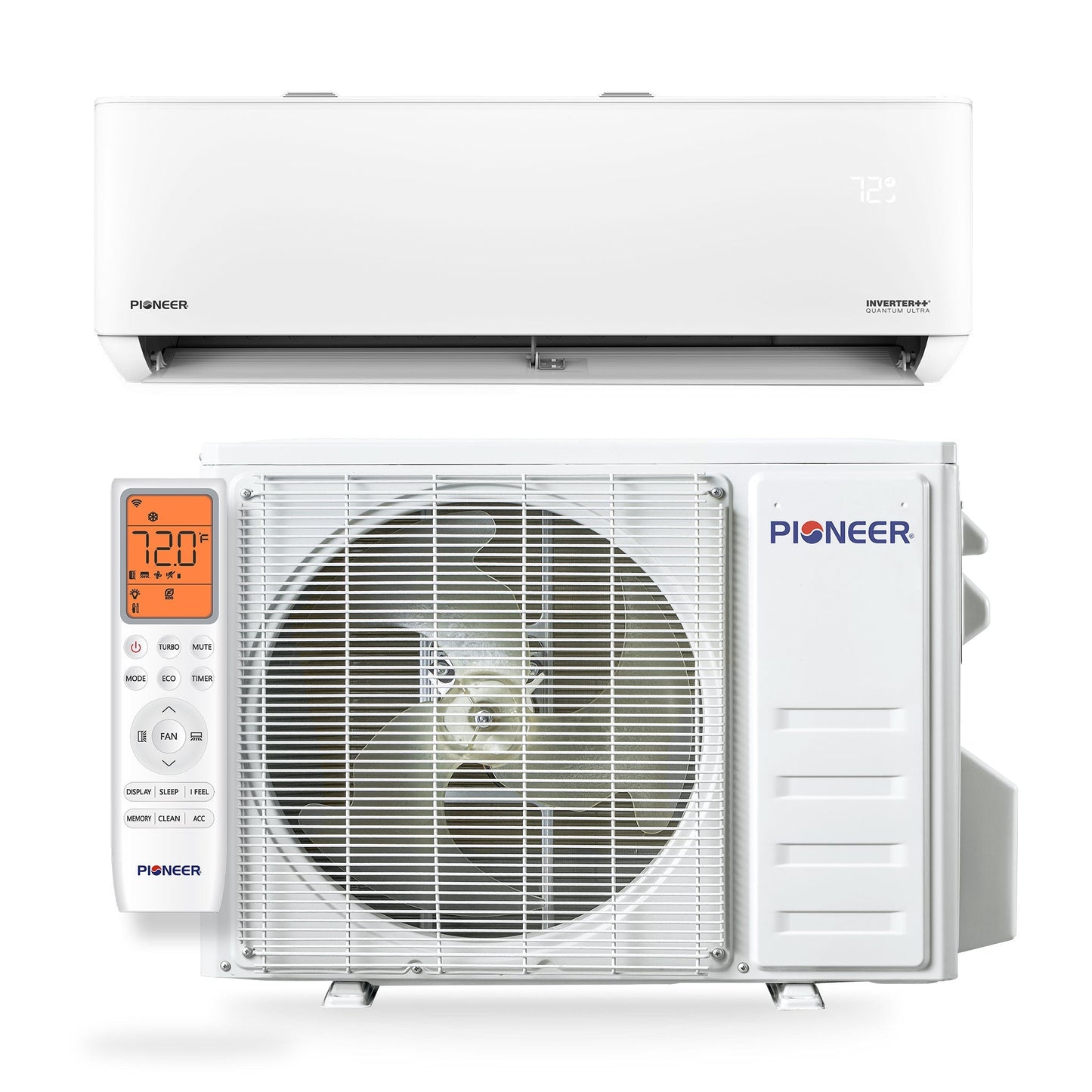

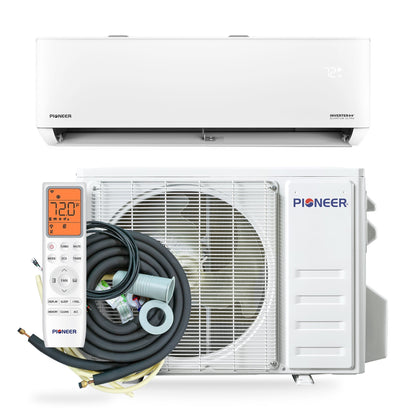

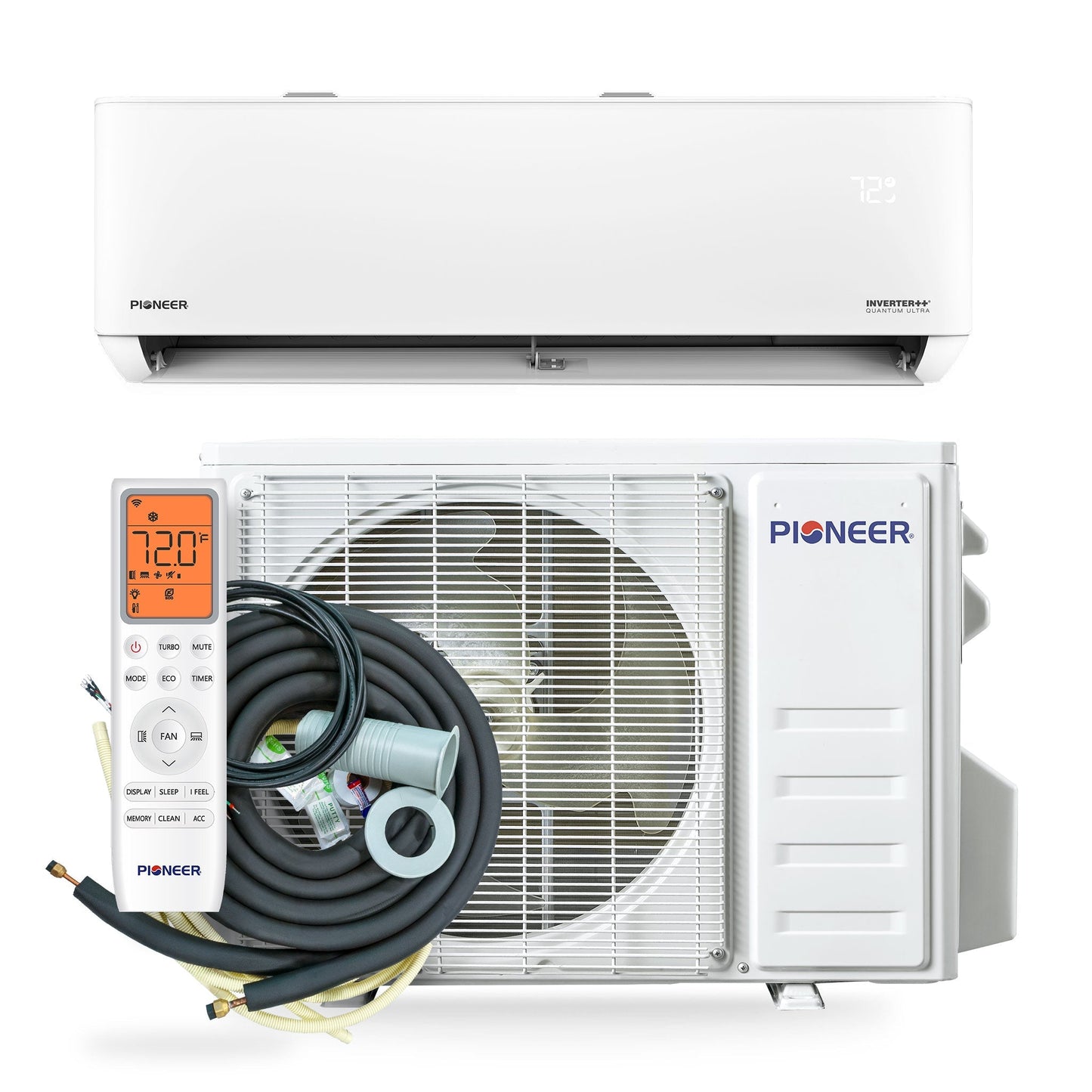

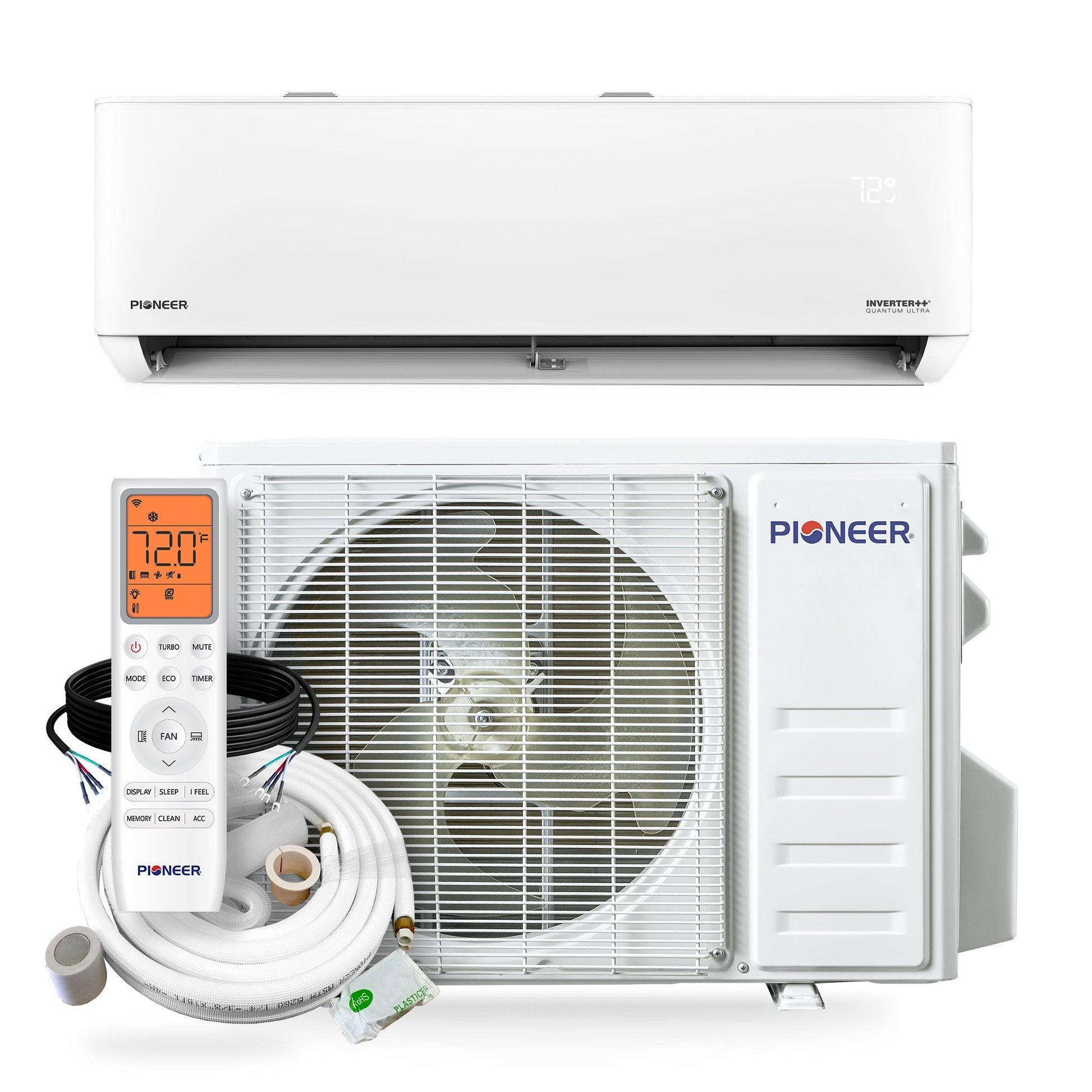

Pioneer Quantum Ultra 18,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set - WYT018GLSI24RL-10S
- Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.81 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
-

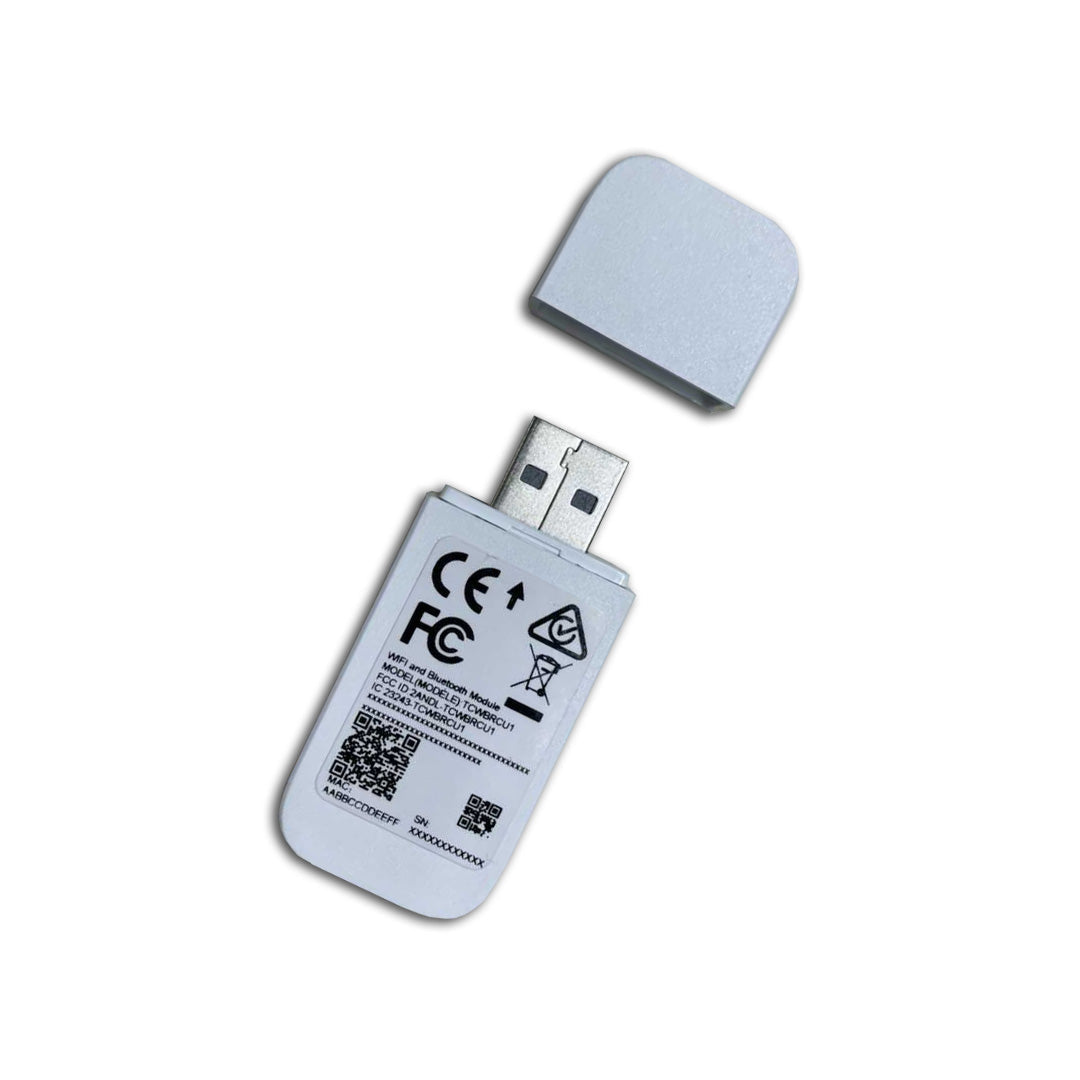

Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

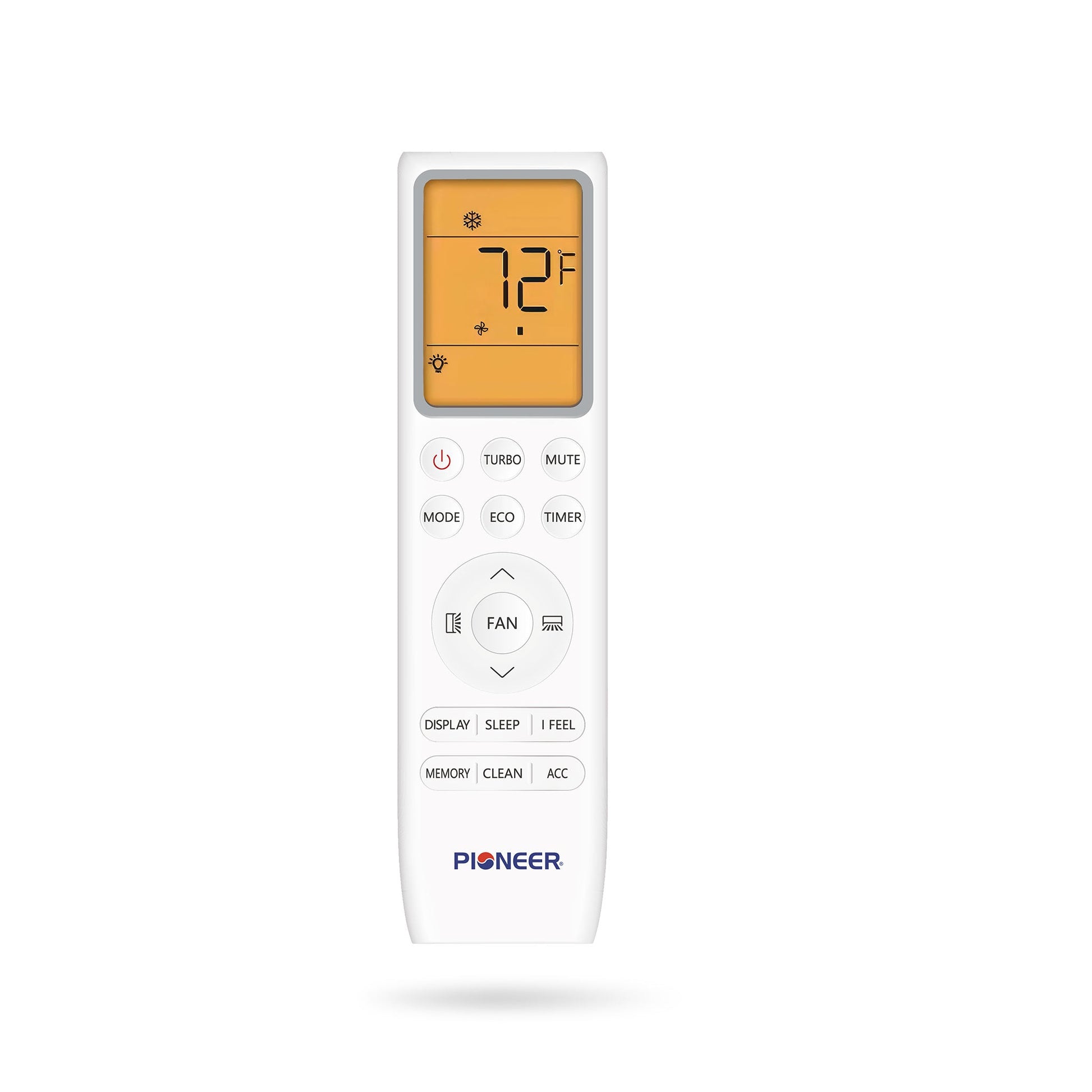

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 18,000 BTU/h
-
Cooling Capacity Range: 4,000~19,000 BTU/h
-
Cooling SEER2: 23.0 BTU/W.h
-
Cooling EER2: 12.5 BTU/W.h
-
Heating Rated Capacity: 19,000 BTU/h
-
Heating Capacity Range: 4,000~21,000 BTU/h
-
Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 1.8 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 500~750 Sq.F
-
Minimum Room Size: 51 sq ft
-
Minimum Installation Height: 6 ft
-

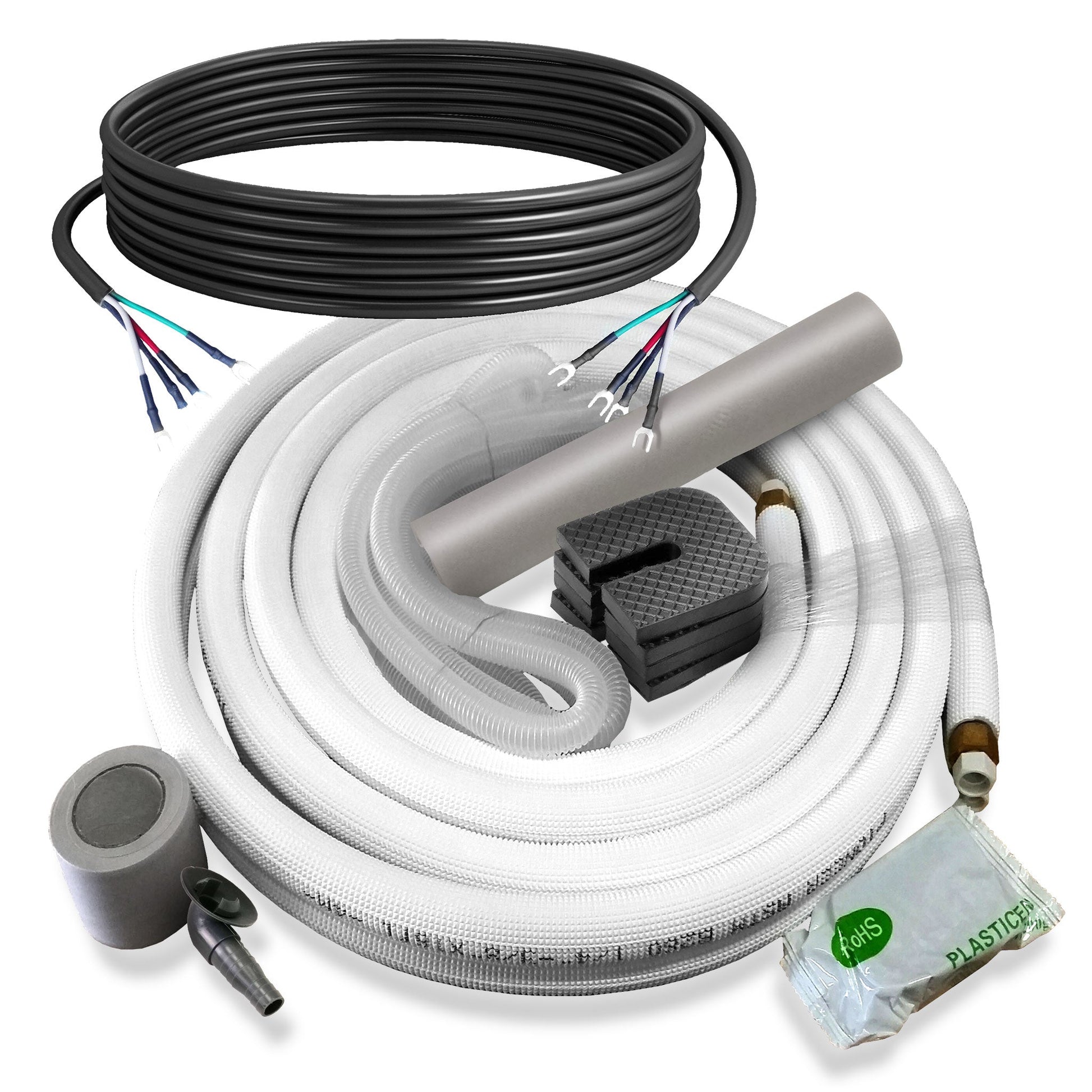

Piping Diameter: 1/4 x 1/2"
-
AHRI Reference: 217048752
-

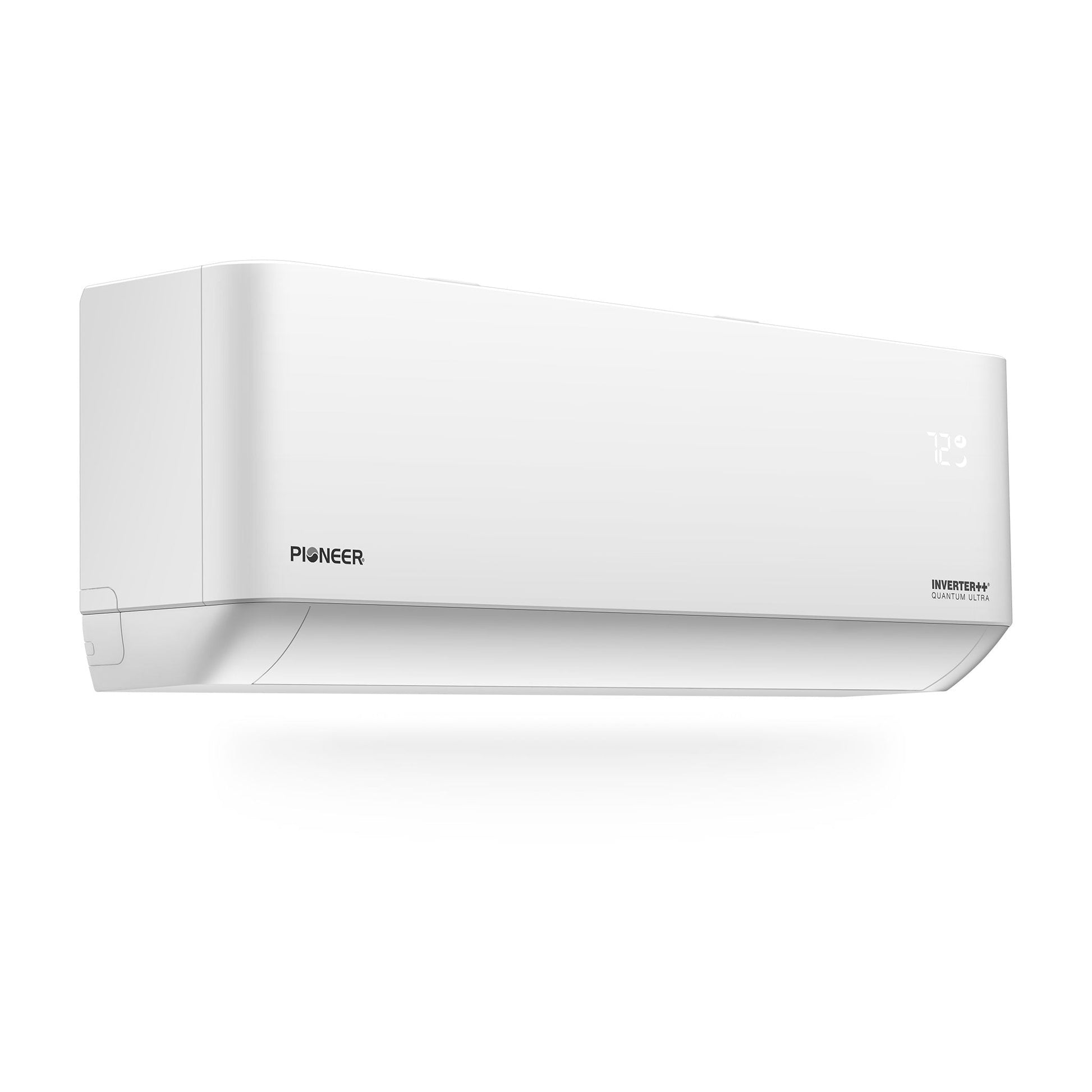

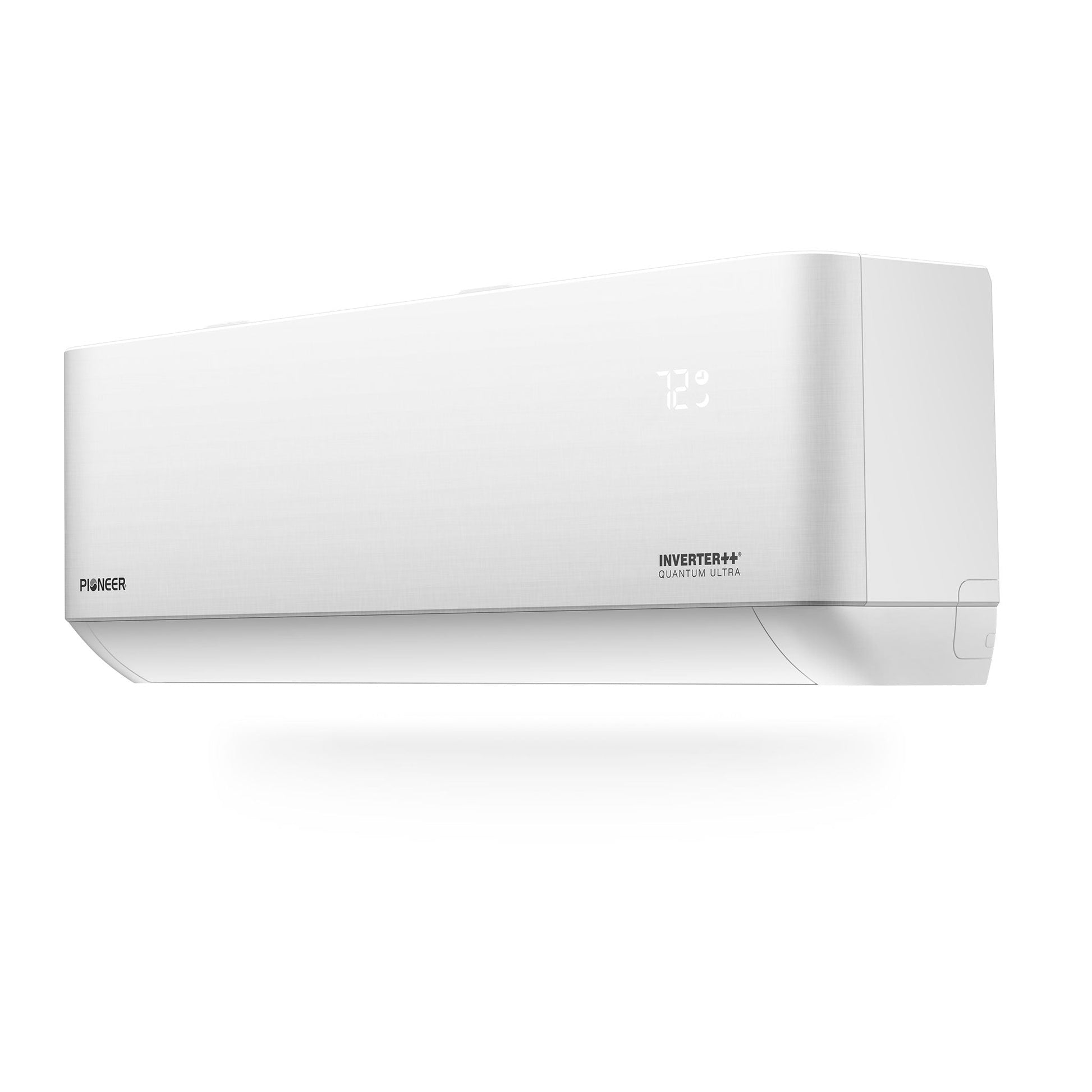

Indoor Unit
-
Part Number: WT018GLSI24HLG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
-
Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13" Inches
-
Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
-
Net / Gross Weight: 30.9 / 35.3 lbs.
-

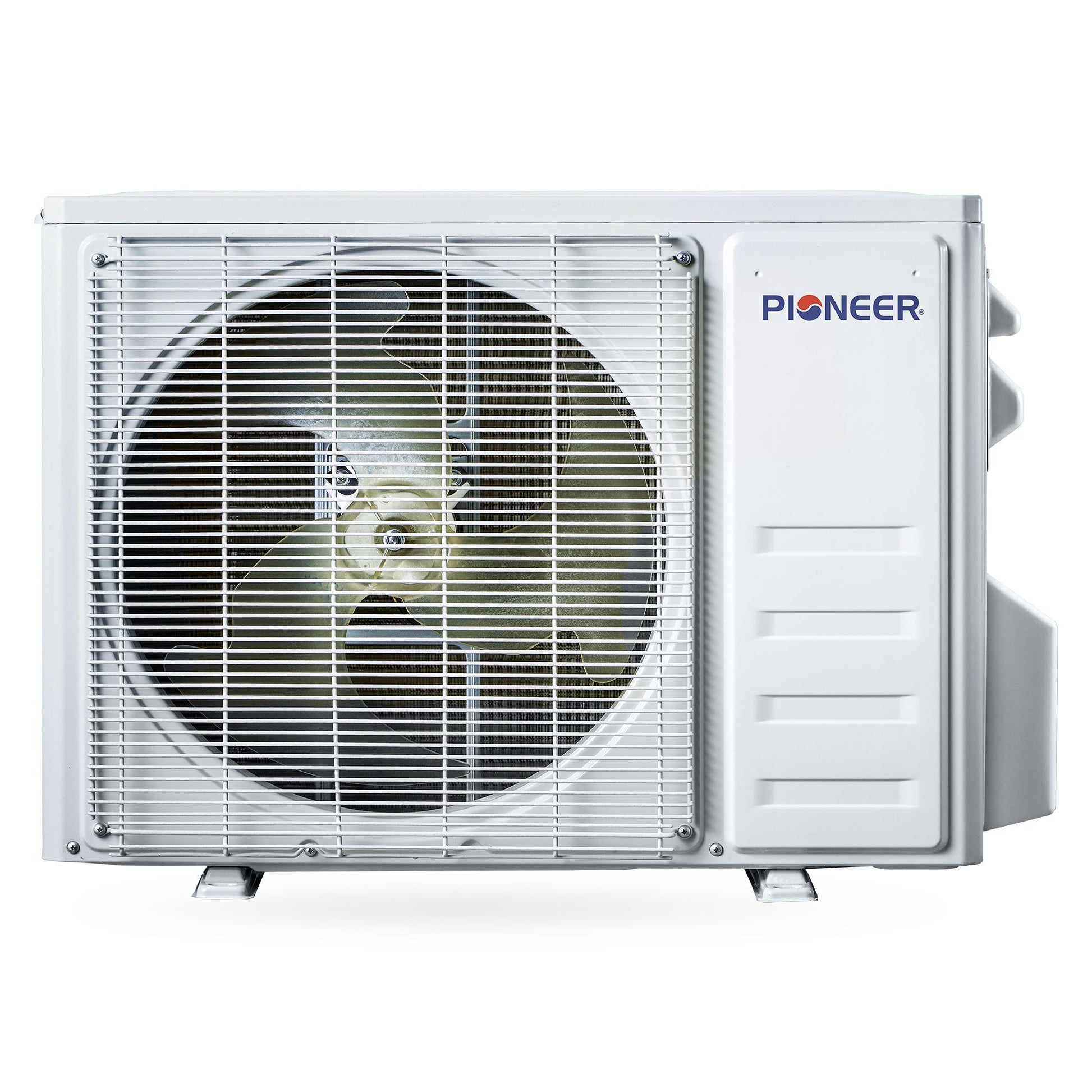

Outdoor Unit
-
Part Number: YN018GLSI24RPG
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 53 dB(A)
-
Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
-
Carton Dimensions (WDH): 37"-3/8 x 16"-3/4 x 28"-3/4 Inches
-
Net / Gross Weight: 90.4 / 99.2 lbs.
Dimension Chart
What Our Experts Think
-
18,000 BTU capacity ideal for medium to large rooms.
-
23 SEER2 Energy-Star efficiency reduces energy costs.
-
High-wall ductless design saves space and blends with interiors.
-
Inverter heat pump provides reliable heating and cooling year-round.
-
Full set includes indoor and outdoor units for straightforward installation.
Q&A
Q: What room size is this system suitable for?
A: Designed for spaces up to 750–1,000 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump ensures year-round comfort.
Q: Is it energy-efficient?
A: Yes, the 23 SEER2 rating and Energy-Star certification ensure maximum efficiency.
Maintenance Tips
-
Clean air filters every 4–6 weeks to maintain airflow.
-
Keep outdoor condenser clear of debris for optimal performance.
-
Wipe indoor unit panels regularly to prevent dust accumulation.
-
Schedule professional servicing annually to maintain system longevity.
