U.S. Motors T32CA1JCR General Purpose Single Phase TEFC C-Face Motor - T32CA1JCR

U.S. Motors T32CA1JCR General Purpose Single Phase TEFC C-Face Motor - T32CA1JCR

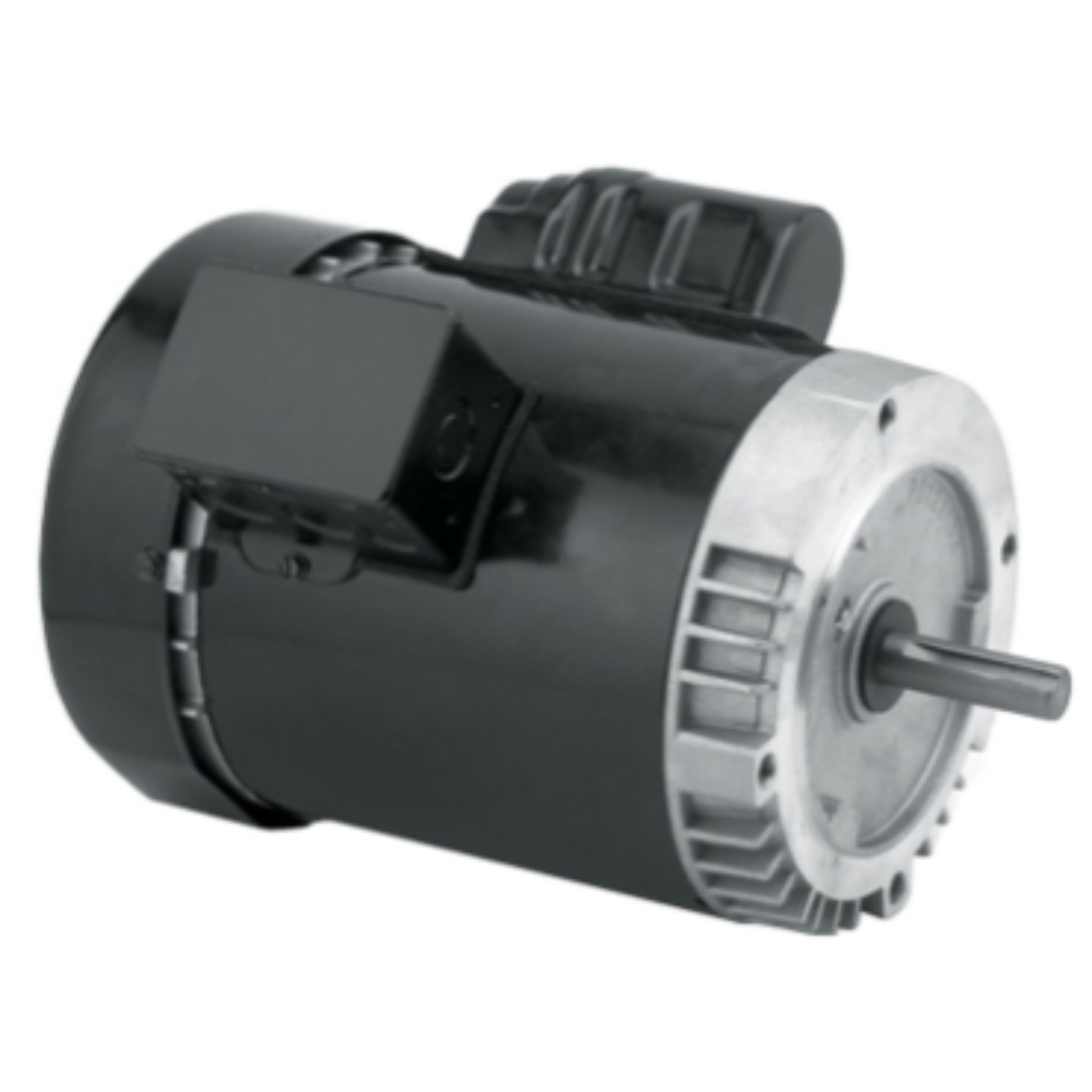

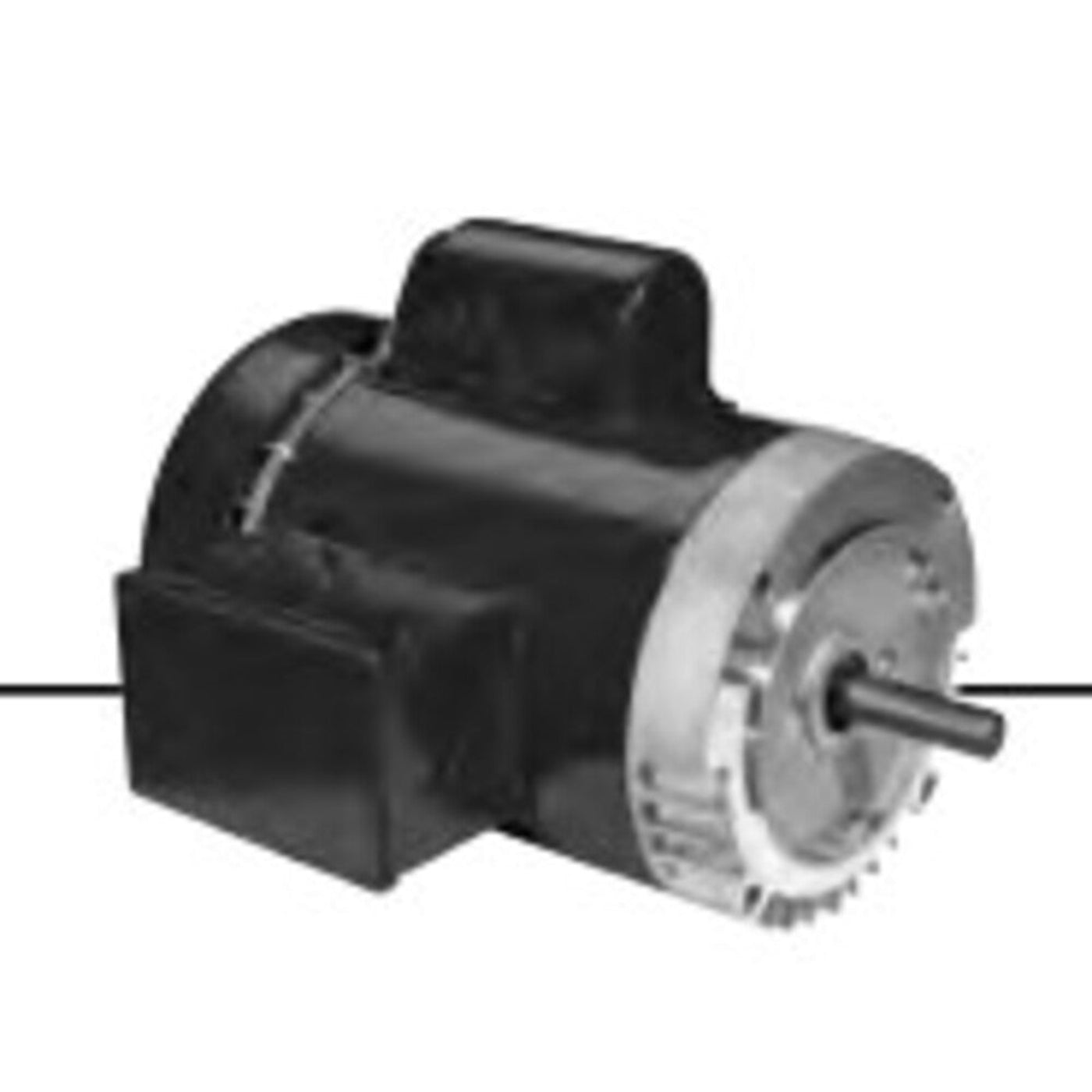

The U.S. Motors T32CA1JCR is a general-purpose single-phase motor designed for various applications. This motor features a TEFC design and operates at a voltage rating of 115/208-230. With a power output of one and a half horsepower and a full load speed of 3600 RPM, this motor is suitable for tasks requiring reliability and efficiency.

Product Highlights

This motor is ideal for HVAC applications and other industrial uses.

Features

• Power Output: 1.5 HP
• Full Load Speed: 3600 RPM
• Frame Size: 56C

Specifications

What our Experts Think

• Compact Power: The U.S. Motors T32CA1JCR delivers 1.5 HP at up to 3600 RPM, making it a solid choice for light to medium-duty machinery like pumps, compressors, and conveyors.

• Single Phase Versatility: Operates on 115/208–230V power, ideal for general-purpose use in facilities with standard single-phase supply.

• Durable Design: Built with a Totally Enclosed Fan Cooled (TEFC) enclosure and rolled steel frame, offering excellent protection against dust, moisture, and contaminants.

• Easy Mounting: The 56C frame and footless C-Face mount allow for quick and secure installation in tight or specific motor setups.

• Safe & Reliable: Features include ball bearings, Class B insulation, and automatic thermal protection for dependable operation and extended motor life.

• Energy-Conscious: Offers a full-load efficiency of 78.5%, supporting energy savings without compromising performance.

Q&A

Q: What is the U.S. Motors T32CA1JCR used for?
A: This motor is ideal for general-purpose applications such as pumps, air compressors, fans, and conveyors where reliable single-phase power is needed.

Q: What are the key specifications of this motor?
A: It provides 1.5 horsepower at 3450 RPM, runs on 115/208-230V single-phase power, and comes in a 56C frame with a Totally Enclosed Fan Cooled (TEFC) enclosure.

Q: What is the mounting and shaft configuration?
A: The motor features a C-face mount without a base and includes a keyed shaft measuring 5/8" in diameter by 1 7/8" in length.

Q: What are the electrical and performance characteristics?
A: It operates at 14.6/8.1-7.4 amps, has a 1.15 service factor, and is built with Class B insulation for thermal protection.

Q: What are the construction and durability features?
A: The motor has a durable rolled steel frame, ball bearings, and is rated for continuous duty in ambient temperatures up to 40°C.

Q: Why choose the T32CA1JCR model?
A: This model offers dependable, efficient performance in rugged conditions, making it a solid choice for both new and replacement installations.

Maintenance Tips

• Routine Inspection: Regularly check for unusual vibrations, overheating, or noise. Ensure the motor operates smoothly without any irregularities.

• Cleanliness: Keep the motor free from dust and debris. Since it's a Totally Enclosed Fan Cooled (TEFC) design, ensure the ventilation openings are unobstructed to maintain proper airflow.

• Lubrication: Periodically lubricate the ball bearings as per the manufacturer's recommendations to ensure smooth operation and reduce wear.

• Electrical Connections: Inspect all electrical terminals and connections for signs of corrosion or looseness. Tighten and clean as necessary to maintain optimal electrical performance.

• Load Monitoring: Ensure the motor is not subjected to loads exceeding its 1.5 HP capacity. Overloading can lead to overheating and reduced lifespan.

• Environmental Conditions: Operate the motor within its specified ambient temperature range (up to 40°C). Protect it from exposure to excessive moisture or corrosive environments.

• Storage: If the motor is not in use, store it in a dry, dust-free environment. Rotate the shaft periodically to prevent bearing damage.
