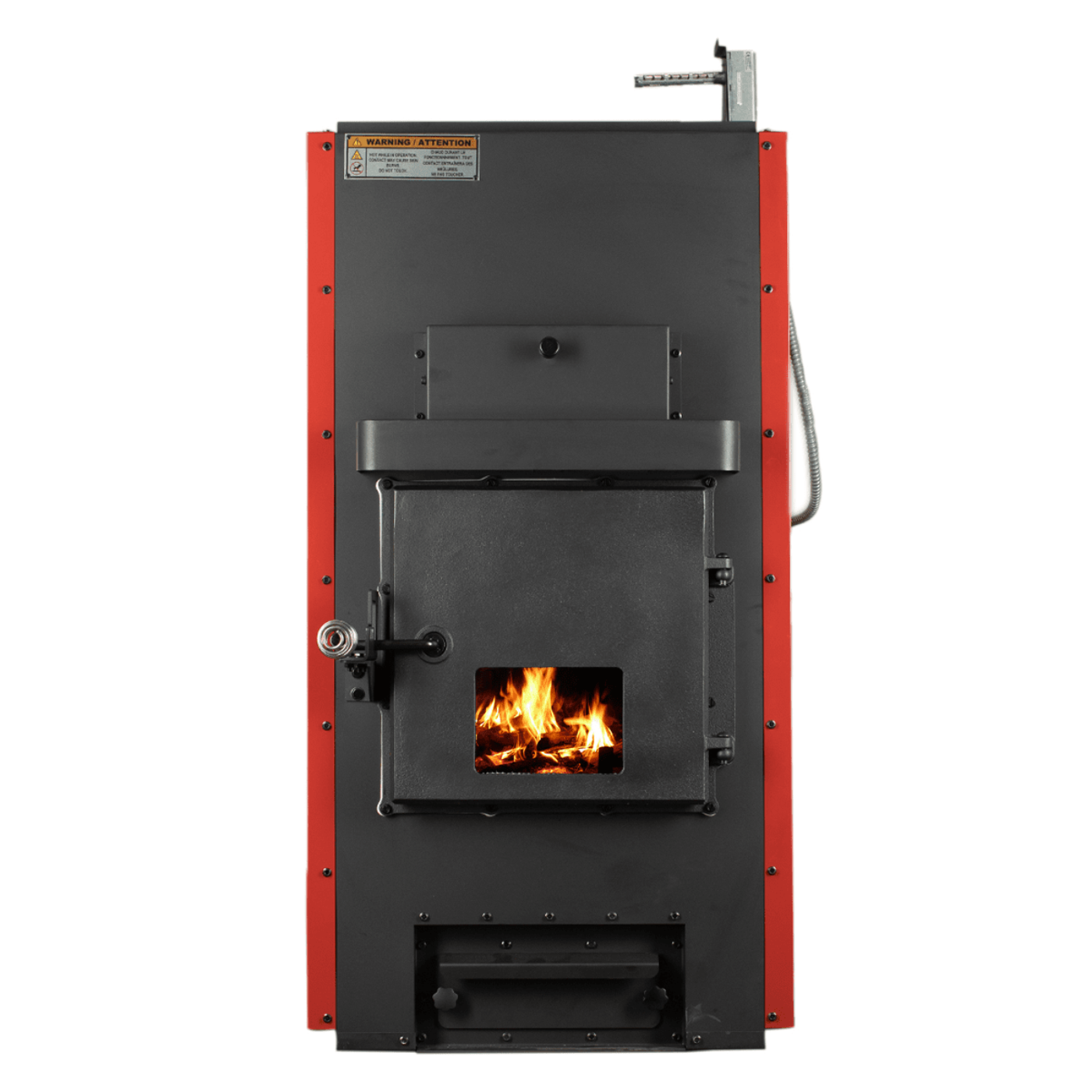

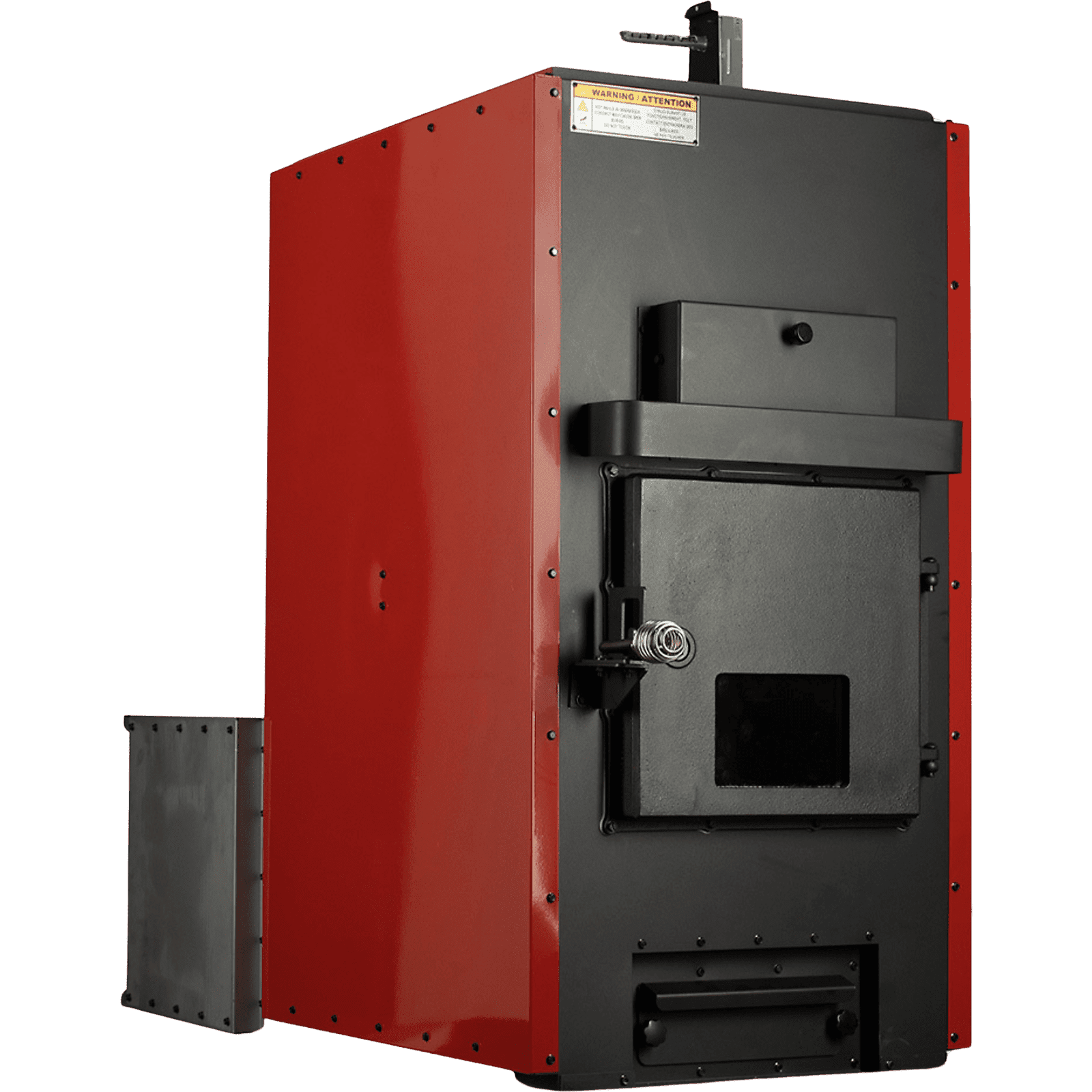

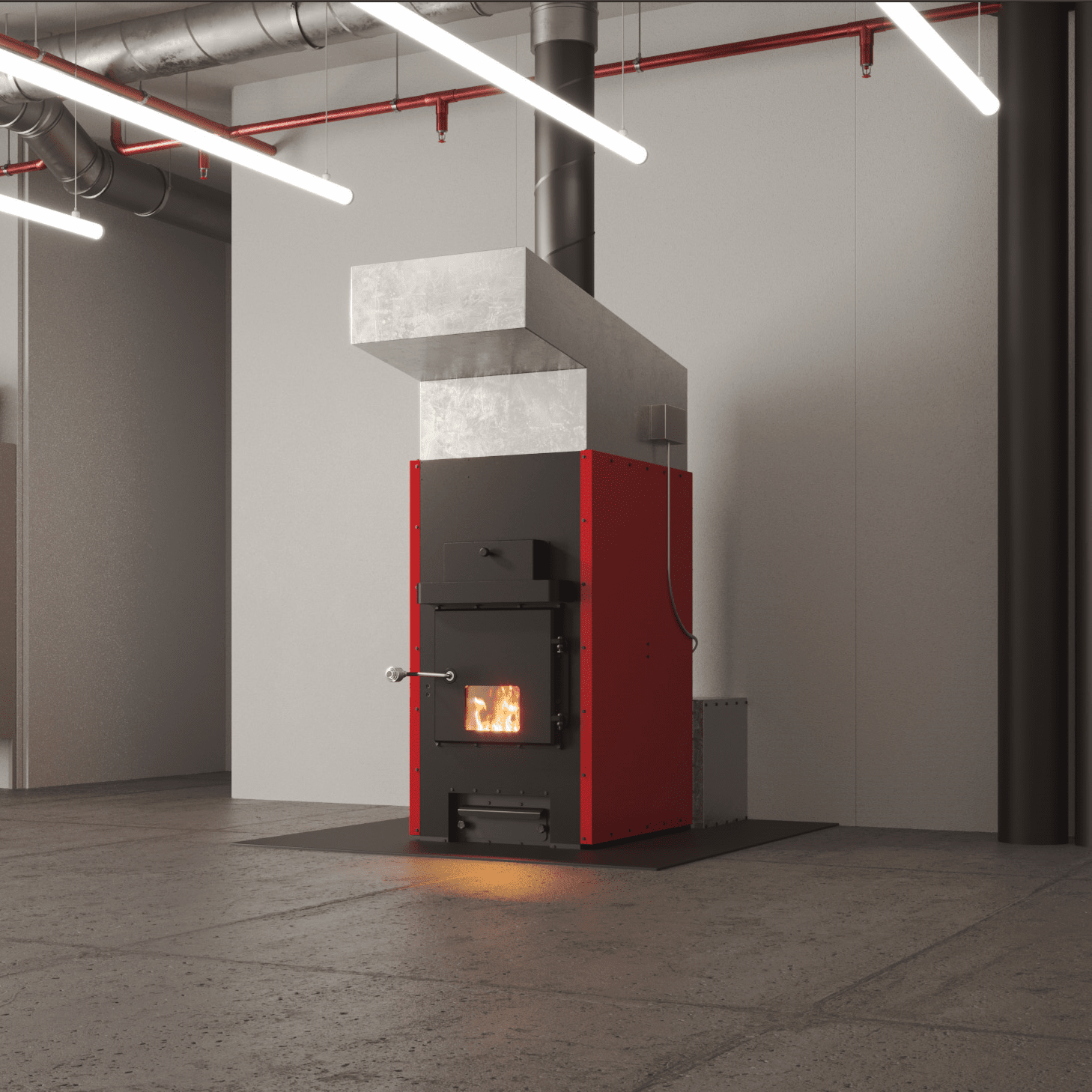

The Hot Blast HB1520 by US Stove is a wood burning furnace designed to use in conjunction with your existing HVAC ductwork. With twin 500 CFM blowers and up to 180,000 BTUs, it is designed to heat a home up to 3,500 Sq. Ft. Its heavy duty cast-iron door with a glass viewing front gives out the ambience of a flame without compromising efficiency. The open plenum allows for easy installation and with a built in ash-pan and firebrick line combustion chamber, the HB1520 is a great option for heating larger spaces in the furnace category. The Hot Blast HB1520 EPA certified furnace exceeds 75% efficiency and qualifies for the 30% IRS 25C Residential Energy Tax Credit.
Features

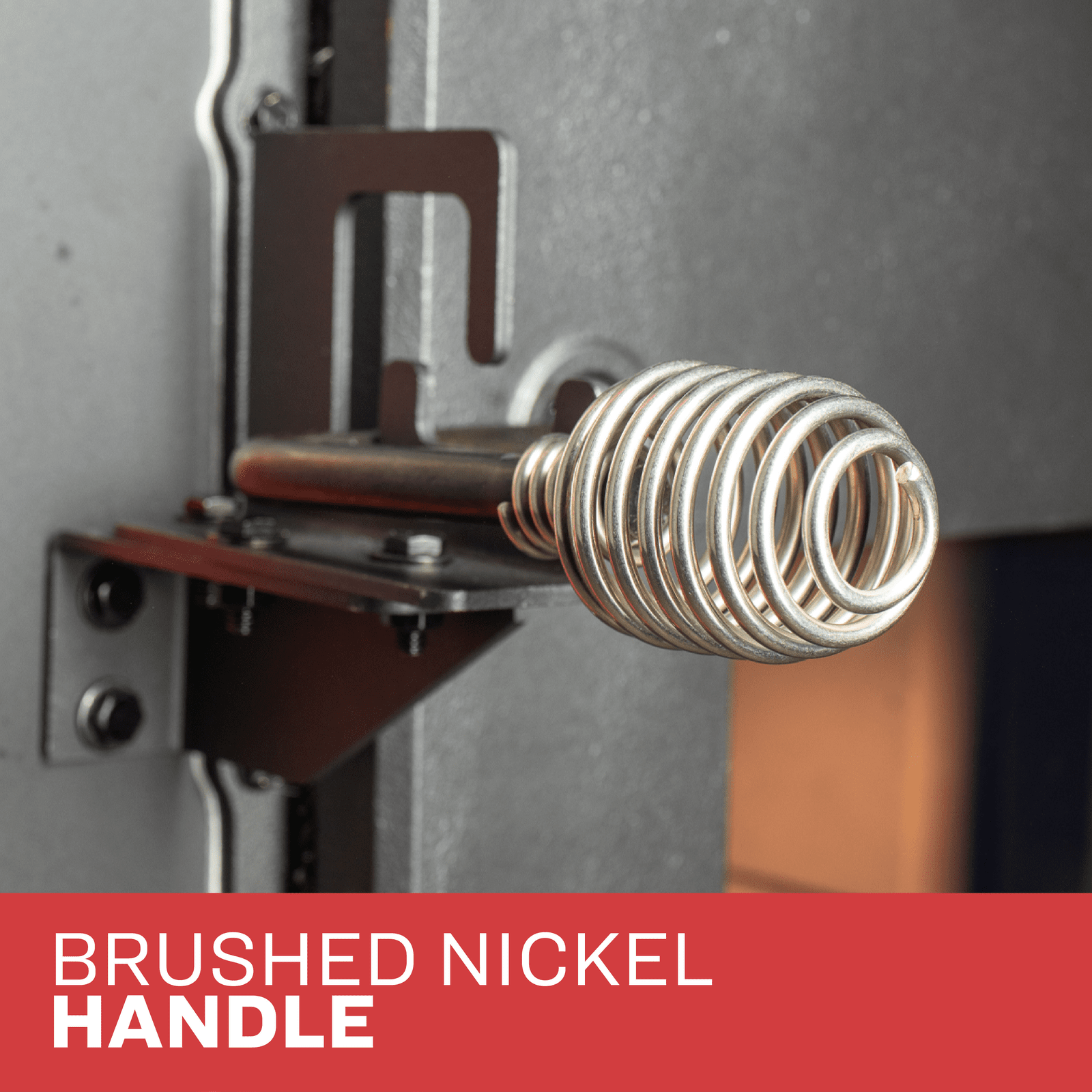

- Heavy Duty cast-iron door with viewing window

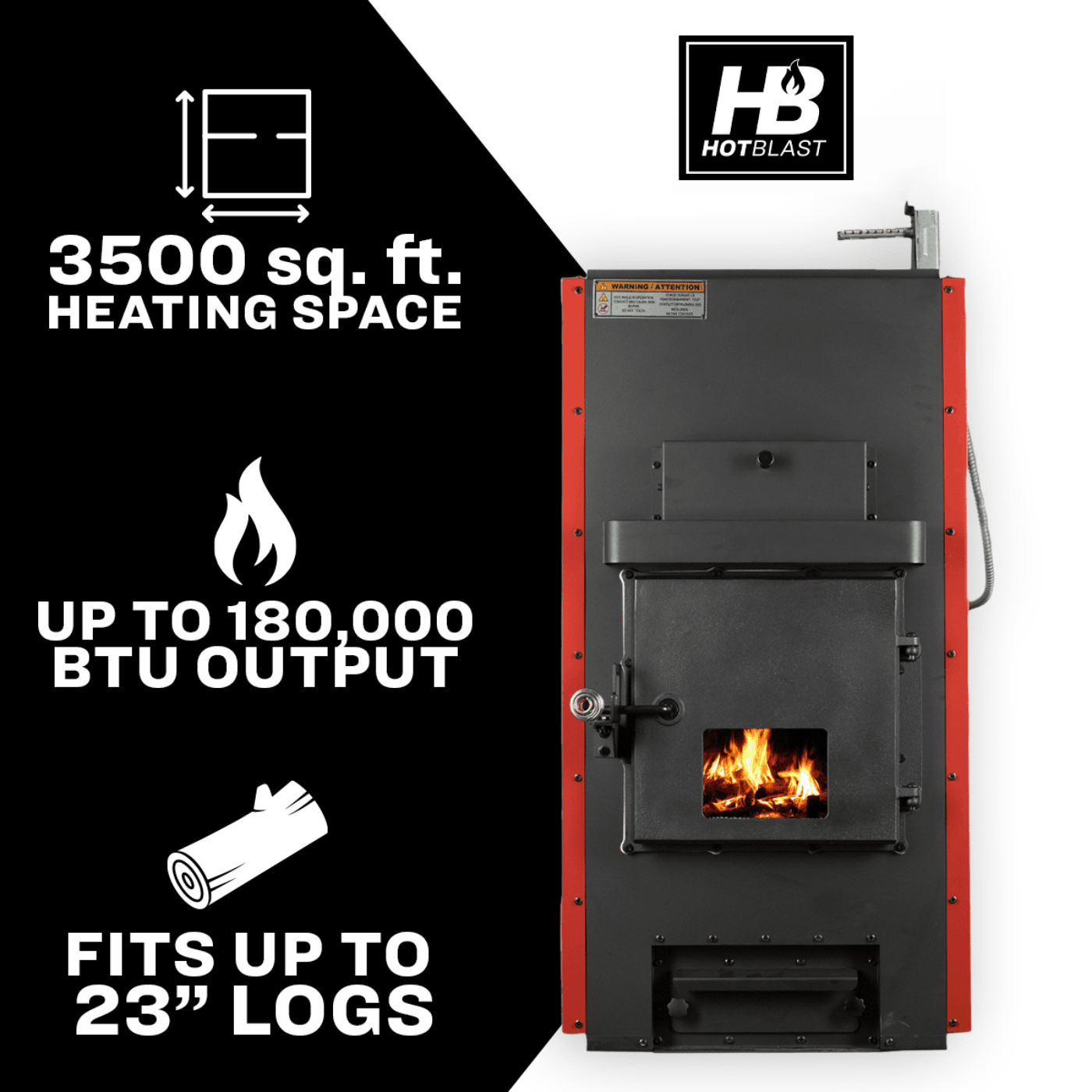

- Heats up to 3,500 Sq Ft of living space with 180,000 BTUs
- EPA Certified & 75% Efficiency Rating

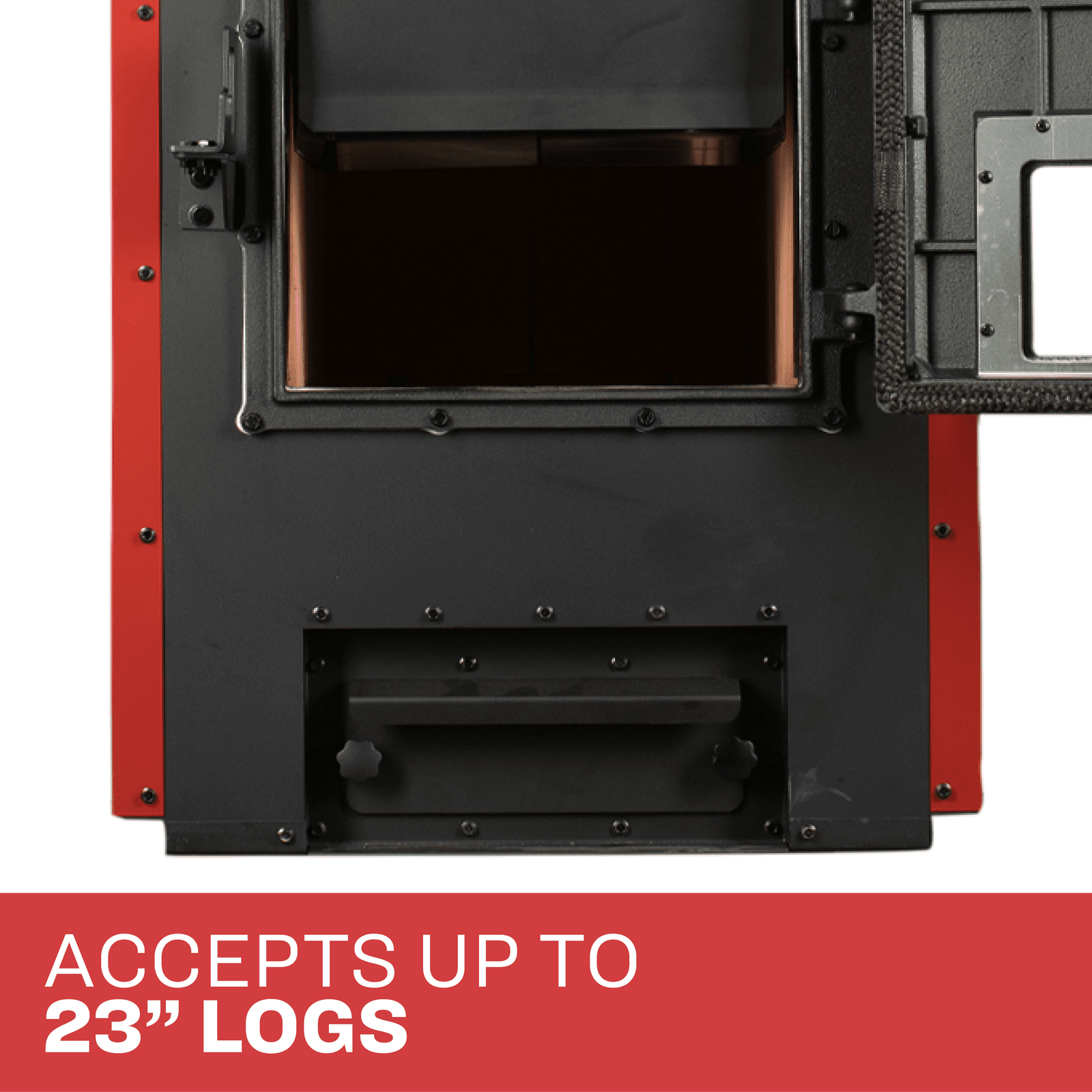

- Accepts logs up to 23" and easy to load
- Qualifies for IRS 30% 25C Residential Energy Tax Credit
- Firebrick lined to boost efficiency and heating capacity

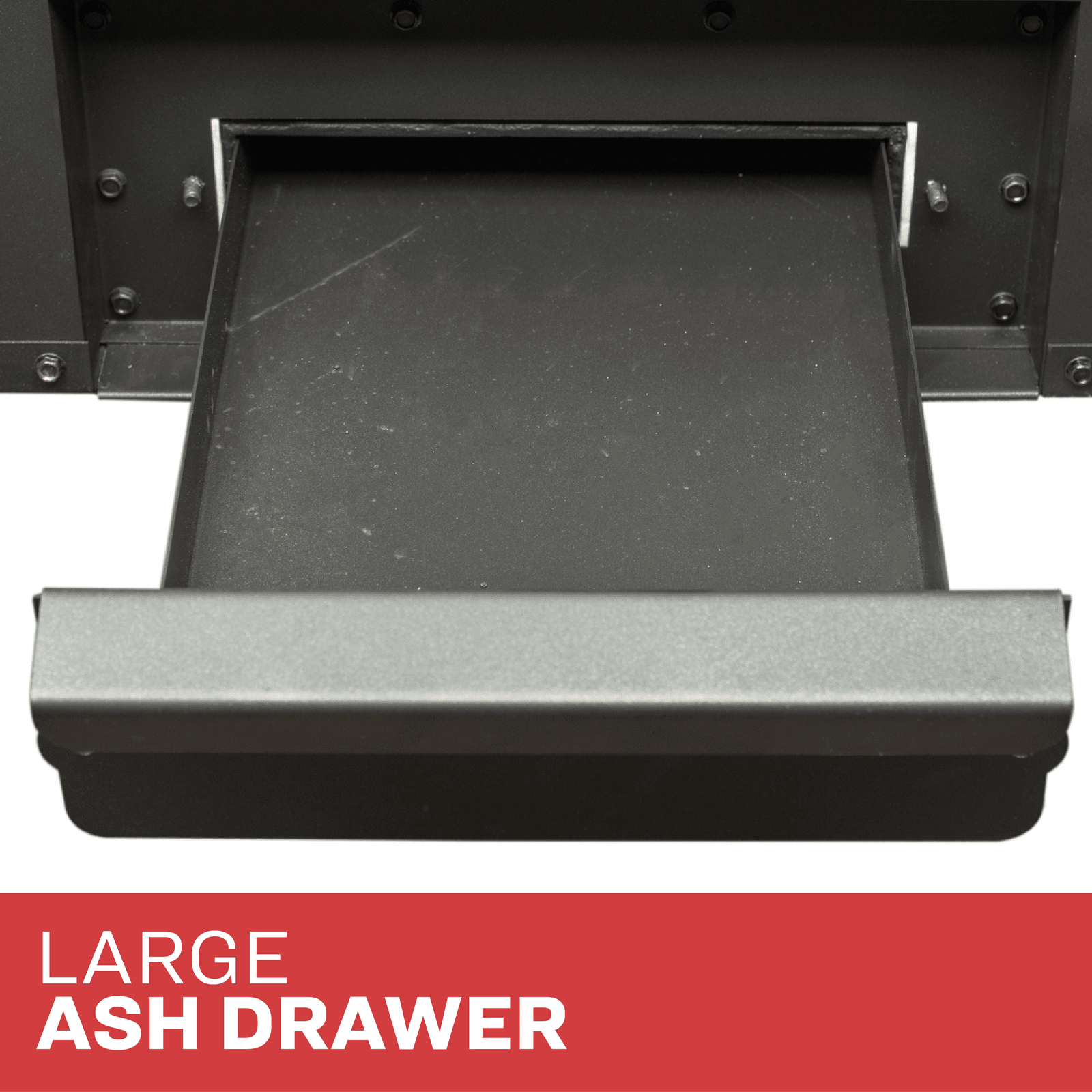

- Built in ash pan for easy clean up
- Recommended installation by NFI Certified Installer (USA) or WETT Certified Installer (Canada)

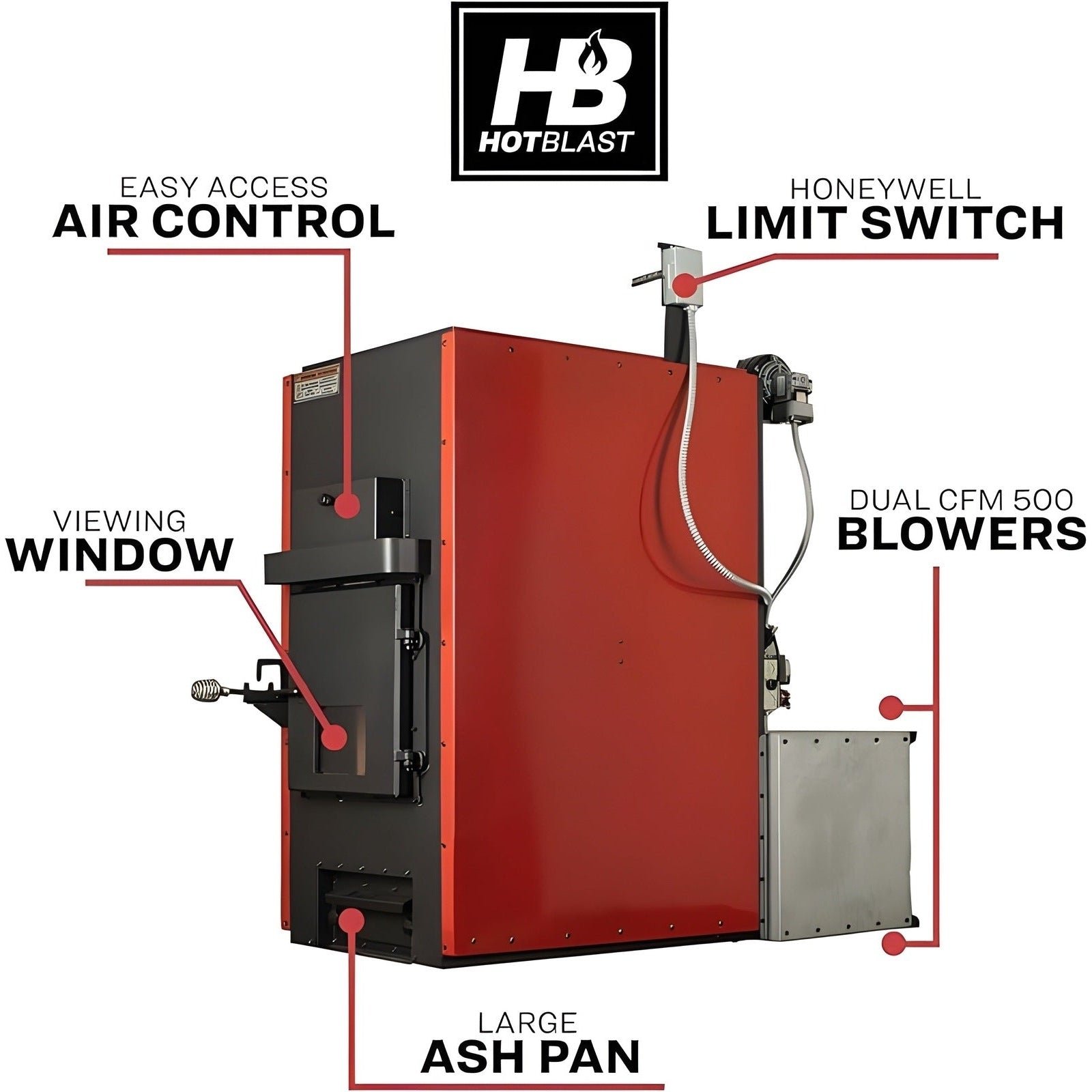

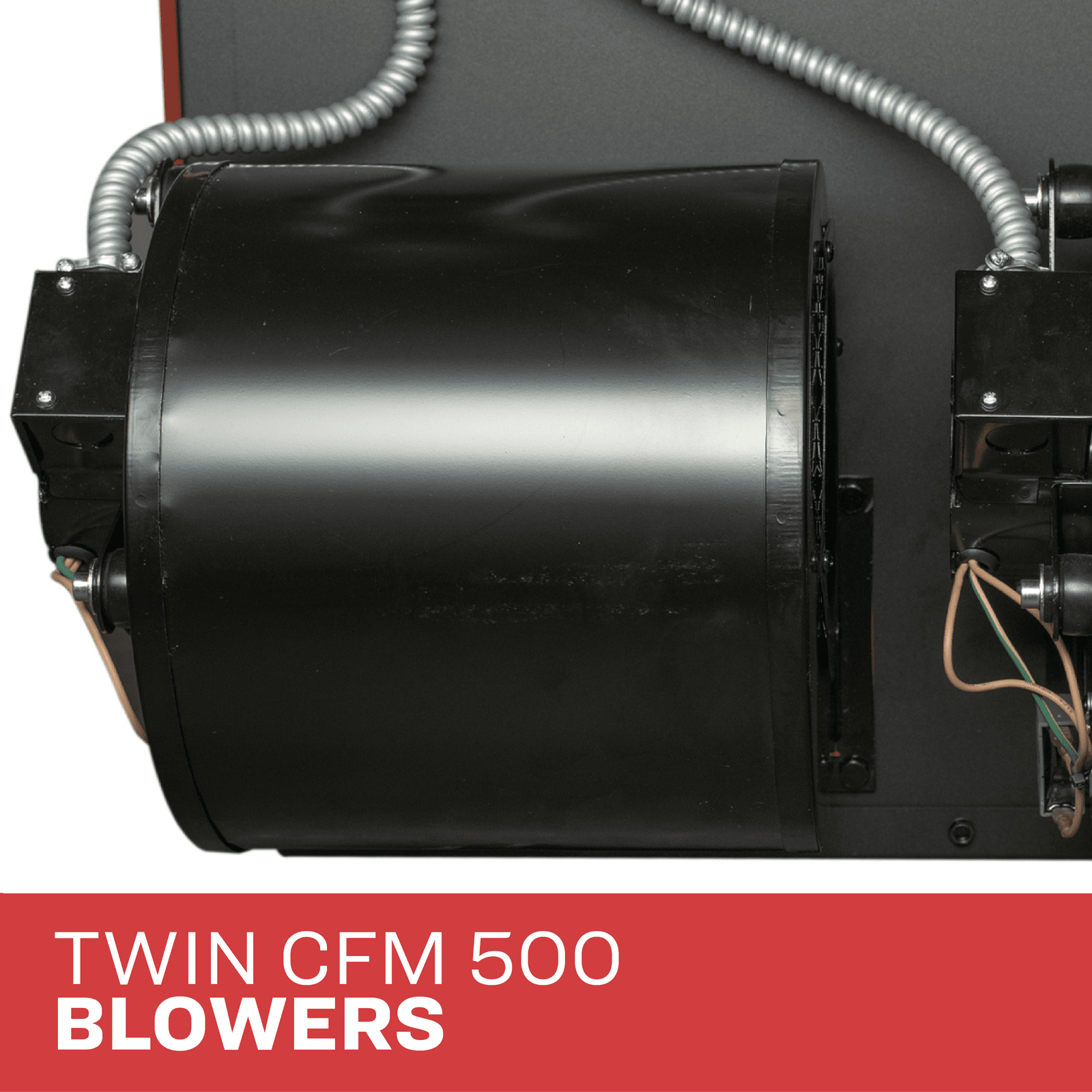

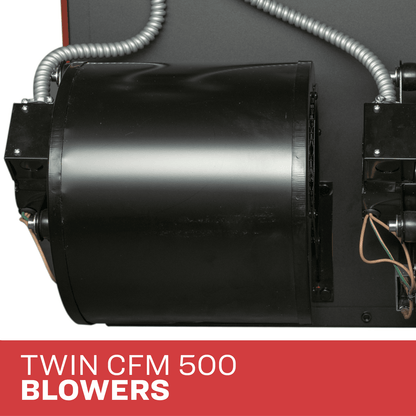

- Dual blowers provide maximum heat output
Specifications
| Combustible |
Wood |
| Flue Piper Diameter |
6" |
| Flue Pipe Type |
Black or Blued Steel 2100°F Class "A" |
| Minimum Chimney Height |
12 ft. |
| Maximum Log Length |
23" |
| Electrical |
120V, 60 Hz, 6.0 Amps |
| Cooktop |
No |
| Vent Location |
Rear |
| Removable Water Reservoir |
No |
| Temperature Gauge |
No |
| Venting Required |
Yes |
| Heating Area (ft²) |
3500 |
| Maximum BTU |
180,000 |
| Stove Type |
Freestanding |
| Vented Or Vent-Free |
Vented |
| Firebox Width (in) |
20 |
| Brick-Lined Firebox |
Yes |
| Vent Diameter (in) |
6 |
| Pedestal Base Included |
No |
| Firebox Height (in) |
19.5 |
| Air Wash System |
No |
| Outside Air Kit |
No |
| Heater Type |
Outlet |
| Ash Drawer |
Yes |
| Blower |
Yes |
| Catalytic/Non Catalytic |
Non Catalytic |
| Auto Ignition |
No |
| Maximum BTU |
180,000 |
| CSA Certified |
Yes |
| ETL Listed |
Yes |
| EPA Approved |
Yes |
| UL Listed |
No |

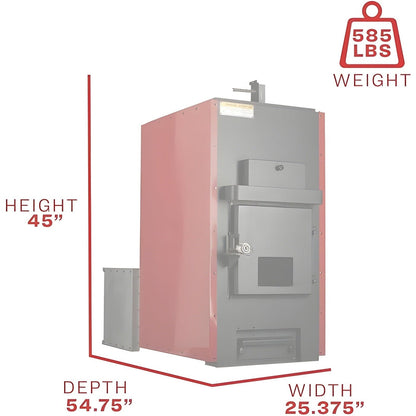

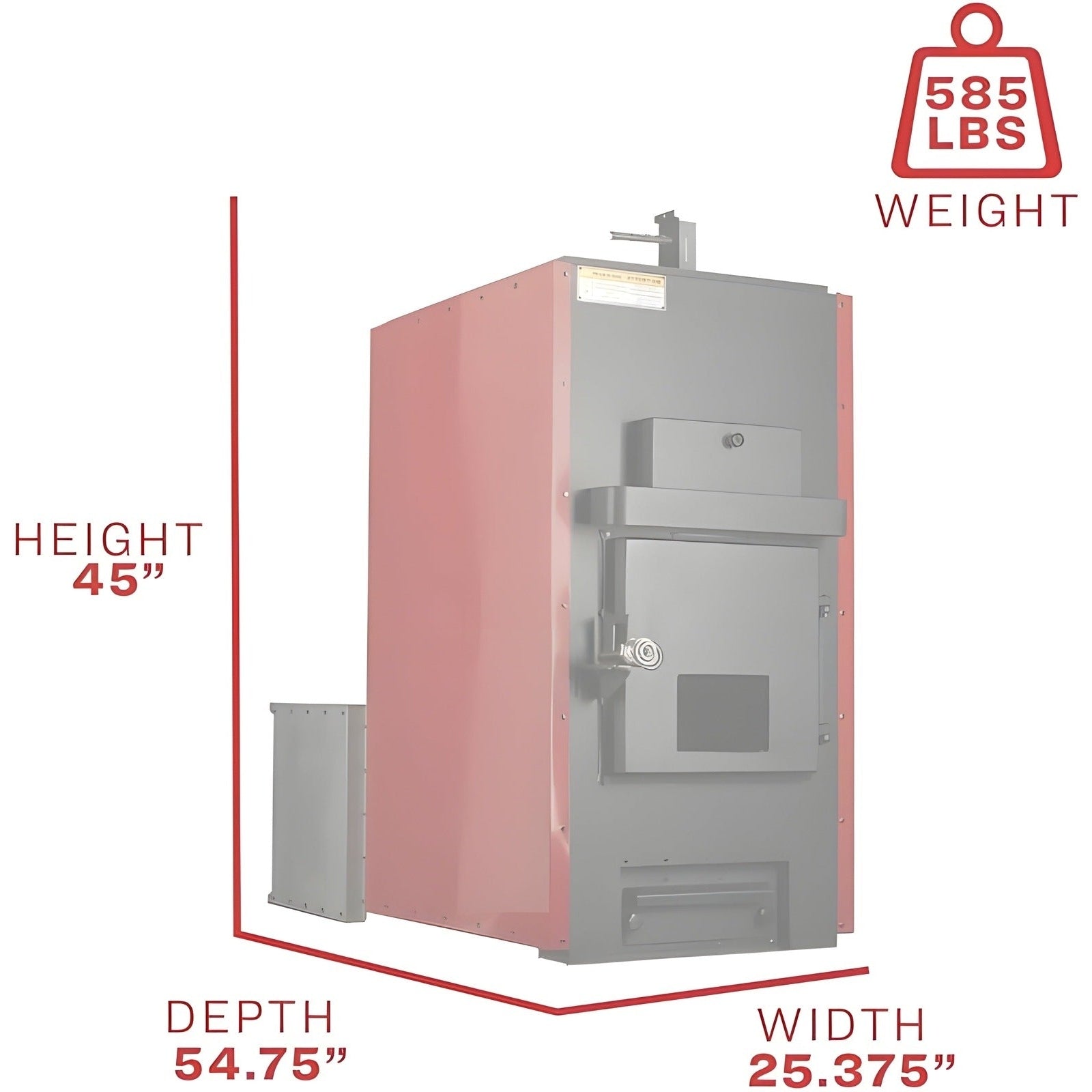

| Assembled Depth (in) |
54.75 |
| Assembled Width (in) |
23.375 |
| Assembled Height (in) |
45 |
| Package Depth |
36.5" |
| Package Width |
27.5" |
| Package Height |
50" |
| Package Weight |
585 lbs. |
| Product Manufacturer Warranty |
5 Year Firebox and Grates Limited Warranty, 1 Year Electrical Limited Warranty |
PACKAGE CONTENTS
Hot Blast HB1520
Filter box
Honeywell probe
Draft & Distribution blowers
User's Manual
