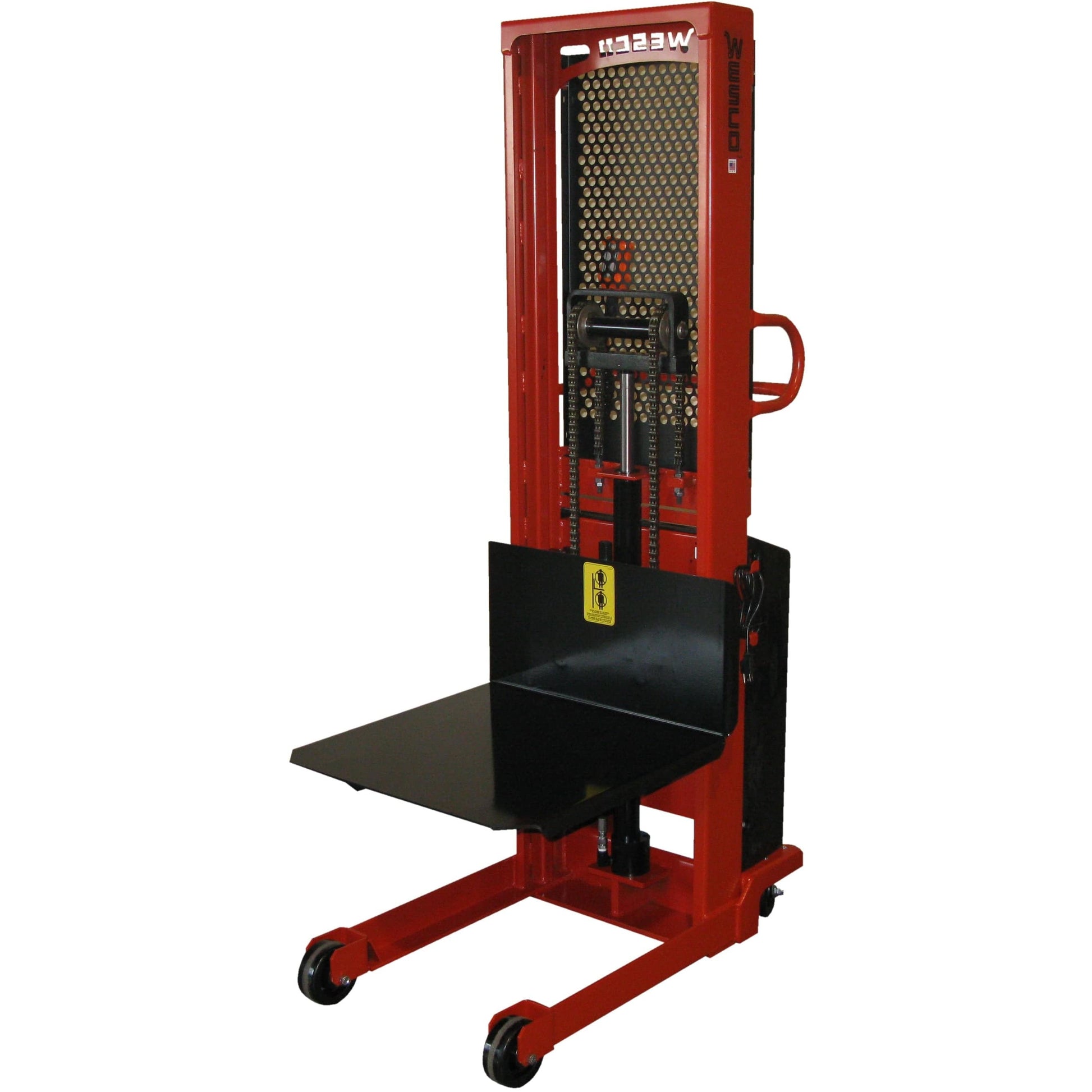

Wesco 24" X 27" PLATFORM 26" O.D. FIXED BASE POWERED STACKER - 261091
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Meets ANSI B56.10 specifications.
- Battery and charger included.
- Forks lower to floor on all models.
- Platform lowered height is 6".
- Reinforced frame and base
- Double chain, lift support.
- Heavy-duty pump.
- Ergonomic "D" handles.
- 5th wheel and power drive options available.
- 110V AC models available (Special order no cancellations or returns).
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #2610791
110V AC Powered #261091AC
Videos
Specifications
| PART NUMBER |
261091 |
| MODEL |
PSPL-90-2427-20S-2K |
| LIFT HEIGHT |
90" |
| CAPACITY |
2000 lb |
| PLATFORM WIDTH |
24" |
| PLATFORM LENGTH |
27" |
| LOAD CENTER |
15" |
| BASE LEG (ID/OD) |
20"/26" |
| OVERALL HEIGHT |
104" |
| WEIGHT |
569 lb |
Drawing
What Our Experts Think
-
Heavy-Duty Performance: Built to support up to 2,000 lbs, ideal for demanding industrial tasks.
-
Compact Platform: 27" x 24" platform provides stability and versatility for various loads.
-
High Lift Capacity: Reaches an impressive 90" lift height, allowing for easy maneuvering and storage.
-
Durability: Designed for longevity with quality materials that withstand tough environments.
-
Ease of Use: Simple, user-friendly operation for efficient material handling.
Q&A
Q: What is the weight capacity of this platform stacker?
A: The Wesco 261091 can lift up to 2,000 lbs.
Q: What is the maximum lift height?
A: The stacker provides a lift height of up to 90 inches.
Q: What are the platform dimensions?
A: The platform measures 27 inches by 24 inches.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for efficient operation.
Q: What are the primary applications for this stacker?
A: It’s ideal for warehouses, factories, and material handling tasks.
Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth operation and precise positioning.
Q: Does it require assembly?
A: Minimal assembly may be required, with detailed instructions included.
Q: Is it durable?
A: Constructed with heavy-duty materials, it ensures long-term reliability.
Maintenance Tips
-
Regular Inspections: Check hydraulic systems, wheels, and platform for wear or damage monthly.
-
Lubricate Moving Parts: Apply appropriate grease to hinges, chains, and rollers every 3 months.
-
Battery Care: Charge fully before use; avoid overcharging. Inspect cables for corrosion or frays.
-
Clean Platform and Frame: Wipe off debris or spills after each use to prevent rust.
-
Tighten Hardware: Regularly check and secure bolts, screws, and fasteners.
-
Test Safety Features: Ensure brakes, emergency stop, and lift controls function properly.
-
Follow Load Limits: Avoid exceeding the 2,000 lb. capacity to prevent wear or damage.
