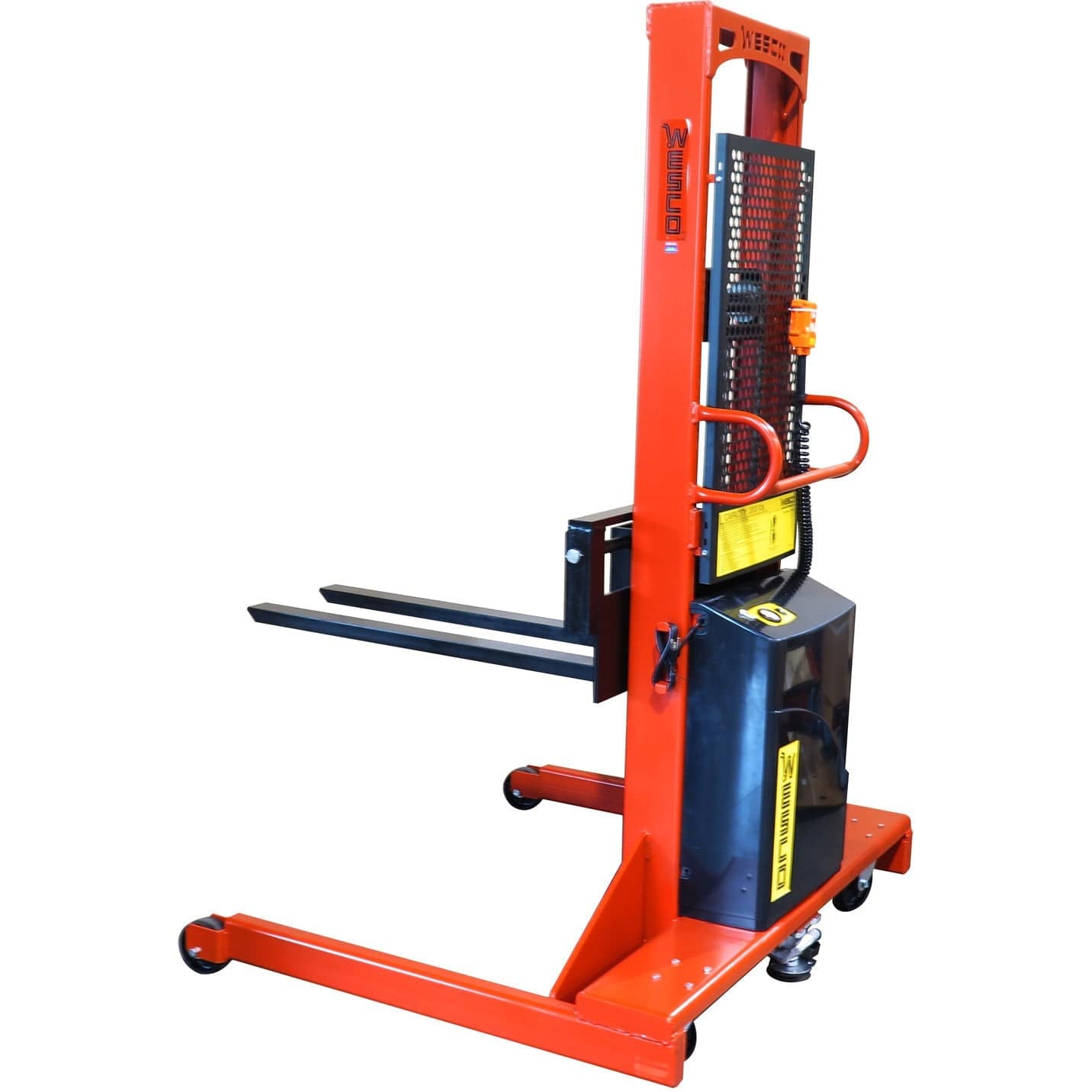

Wesco 3" X 25" FORK / 26" O.D. FIXED BASE POWERED STACKER 261086
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Meets ANSI B56.10 specifications.
- Battery and charger included.
- Forks lower to floor on all models.
- Reinforced frame and fixed base.
- Double chain, lift support.
- Heavy-duty pump.
- Ergonomic "D" handles.
- 5th wheel and power drive options available.
- 110V AC models available (Special order no cancellations or returns).
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #261086
110V AC Powered #261086AC
Videos
Specifications
| PART NUMBER |
261086 |
| MODEL |
PSFL-86-25-20S-1.5K |
| LIFT HEIGHT |
86" |
| CAPACITY |
1500 lb |
| WIDTH FORKS |
3" |
| LENGTH FORKS |
25" |
| LOAD CENTER |
15" |
| BASE LEG (ID/OD) |
20"/26" |
| OVERALL HEIGHT |
104" |
| WEIGHT |
654 lb |
| ADJUSTABLE FORK MIN / MAX OD |
6" / 24.5" |
Drawing
What Our Experts Think
-
Enhanced Lift Capability: Offers an 86" lift height, perfect for high stacking and elevated storage tasks.
-
Solid Load Support: Handles up to 1,500 lbs, ideal for a wide range of material handling needs.
-
Flexible Forks: 25" fork length accommodates various pallet sizes with ease.
-
Sturdy Base: 20" base leg span ensures stability during lifting and transport.
-
Durable Build: Engineered for long-term performance in demanding environments.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261086 can lift up to 1,500 lbs.
Q: What is the maximum lift height?
A: This stacker provides a lift height of up to 86 inches.
Q: What are the fork dimensions?
A: The forks measure 25 inches in length.
Q: What is the base leg span?
A: The base leg span is 20 inches for enhanced stability.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for effortless operation.
Q: What are the primary applications for this stacker?
A: It’s suitable for lifting pallets, heavy materials, and warehouse tasks.
Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth handling and precise positioning.
Q: Does it require assembly?
A: Minimal assembly may be needed, with clear instructions provided.
Q: Is it durable?
A: Yes, it’s built with heavy-duty materials for long-term use and reliability.
Maintenance Tips
-
Inspect Components: Regularly check forks, base legs, and hydraulic systems for wear or damage.
-
Lubricate Moving Parts: Apply grease to rollers, chains, and hinges every 3 months.
-
Maintain the Battery: Charge fully before use and inspect cables for frays or corrosion.
-
Clean After Use: Wipe down forks, legs, and surfaces to prevent dirt and rust buildup.
-
Secure Hardware: Tighten bolts and fasteners periodically for stability.
-
Test Safety Features: Ensure brakes, lift, and lowering controls function properly.
-
Follow Specifications: Do not exceed the 1,500 lb. capacity or 86" lift height.
