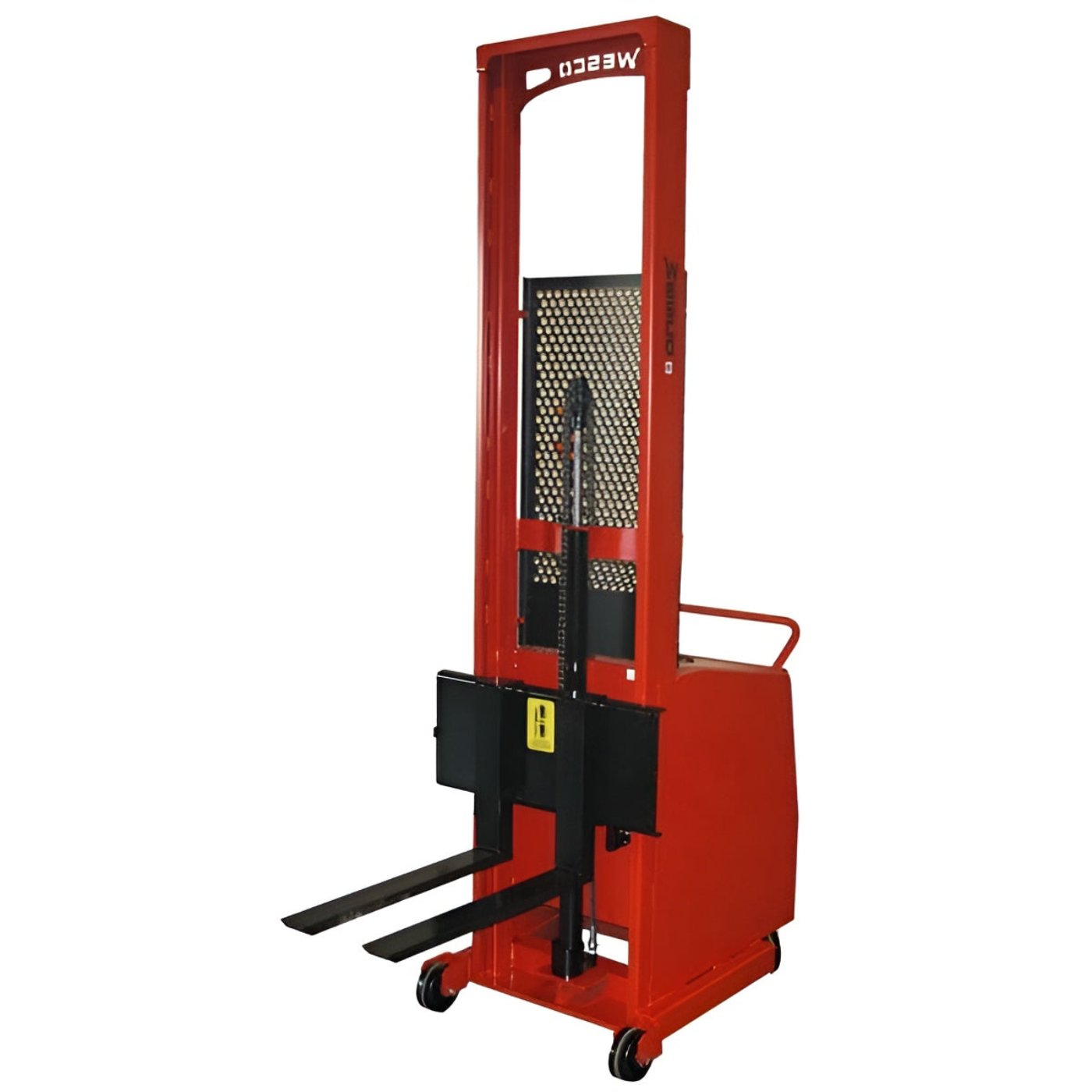

Wesco Industrial Products 1,000 lb. Counter Balance Powered Stacker with 64" Lift Height 261038

Wesco 64" LIFT HEIGHT COUNTER-BALANCE POWERED STACKER - 261038

Features

• Meets ANSI B56.10 specifications.
• 1-year warranty.
• Proven quality: Wesco® manufactured Hydraulic Cylinder.
• 1,000 lb.maximum lift capacity.
• Remote control, floor lock, and safety screen are standard on all models.
• With a minimally charged battery, unit can be used while recharging.
• Easy to read illuminated battery status voltmeter – no extra cost!
• 12V DC battery.
• Battery and charger included.
• Applications include:
  - Loading and unloading trucks.
  - Positioning dies.
  - Feeding material to presses.
• 25" long forks standard.
• 30" long fork models available, 850 lb. max. capacity.
• Order enough weight kits for your planned load.
• AC models not available.
• Power lift manual drive standard, optional power drive available

Note: Counter-Balance Stackers require appropriate counter-weights. (see counter weight graph)

Videos

Specifications

PART NUMBER	261038
MODEL	PCBFL-64-25
LIFT HEIGHT	64"
CAPACITY	1000 lb
WHEEL	(2) 5" Polyolefin
WHEEL REAR SWIVEL CASTERS	(2) 5" Polyolefin Wheel
WIDTH FORKS	3"
LENGTH FORKS	25"
LOAD CENTER	13"
OVERALL WIDTH	26.5"
OVERALL HEIGHT	82.5"
OVERALL DEPTH	59.5"
WEIGHT	574 lb. Without Counter Weights
COUNTER-BALANCE WEIGHTS	Counterweight Graph

Drawing

• Drawing for 2,200 lb Power Drive & Counter-Balance Stackers (261038)

What Our Experts Think

• Reliable Capacity: Supports up to 1,000 lbs, ideal for light to medium-duty material handling tasks in warehouses or workshops.
• Counterbalance Design: Offers stability and maneuverability in tight spaces, enhancing ease of use and safety.
• Moderate Lift Height: 64" lift height is suitable for stacking and organizing materials at mid-level heights.
• Efficient Powered Lift: Features a smooth, electric-powered lift system for controlled, effortless operation.
• Durable and Long-Lasting: Built for consistent, reliable performance in demanding industrial settings.

Q&A

Q: What is the weight capacity of this powered stacker?
A: The Wesco 261038 can lift up to 1,000 lbs.

Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 64 inches.

Q: Is this stacker counterbalanced?
A: Yes, it features a counterbalance design for enhanced stability and maneuverability in tight spaces.

Q: Is this stacker electric-powered?
A: Yes, it is powered for smooth and efficient lifting.

Q: What are the primary applications for this stacker?
A: Ideal for lifting and moving pallets, materials, and equipment in warehouses, factories, and industrial settings.

Q: Is it easy to maneuver?
A: Yes, designed for smooth movement and precise control in confined spaces.

Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions provided.

Q: Is it durable?
A: Yes, built with heavy-duty materials for long-lasting reliability and performance.

Maintenance Tips

• Inspect Regularly: Check the counterbalance, forks, hydraulic system, and wheels for any wear or damage monthly.
• Lubricate Moving Parts: Grease the chains, rollers, and hinges every 3 months to ensure smooth, reliable operation.
• Hydraulic Fluid Check: Ensure hydraulic fluid levels are adequate and check for leaks in the hydraulic system.
• Battery Care: Fully charge the battery before use, and inspect cables and terminals for corrosion or damage.
• Clean After Use: Wipe down the stacker to remove dirt and prevent rust, especially around the counterbalance area.
• Tighten Fasteners: Regularly check and tighten all bolts, screws, and fasteners to ensure stability and safety.
• Test Functionality: Ensure that the lift, lowering, and braking systems are operating correctly before use.
• Observe Load Limits: Never exceed the 1,000 lb. capacity or 64" lift height for safe operation.
