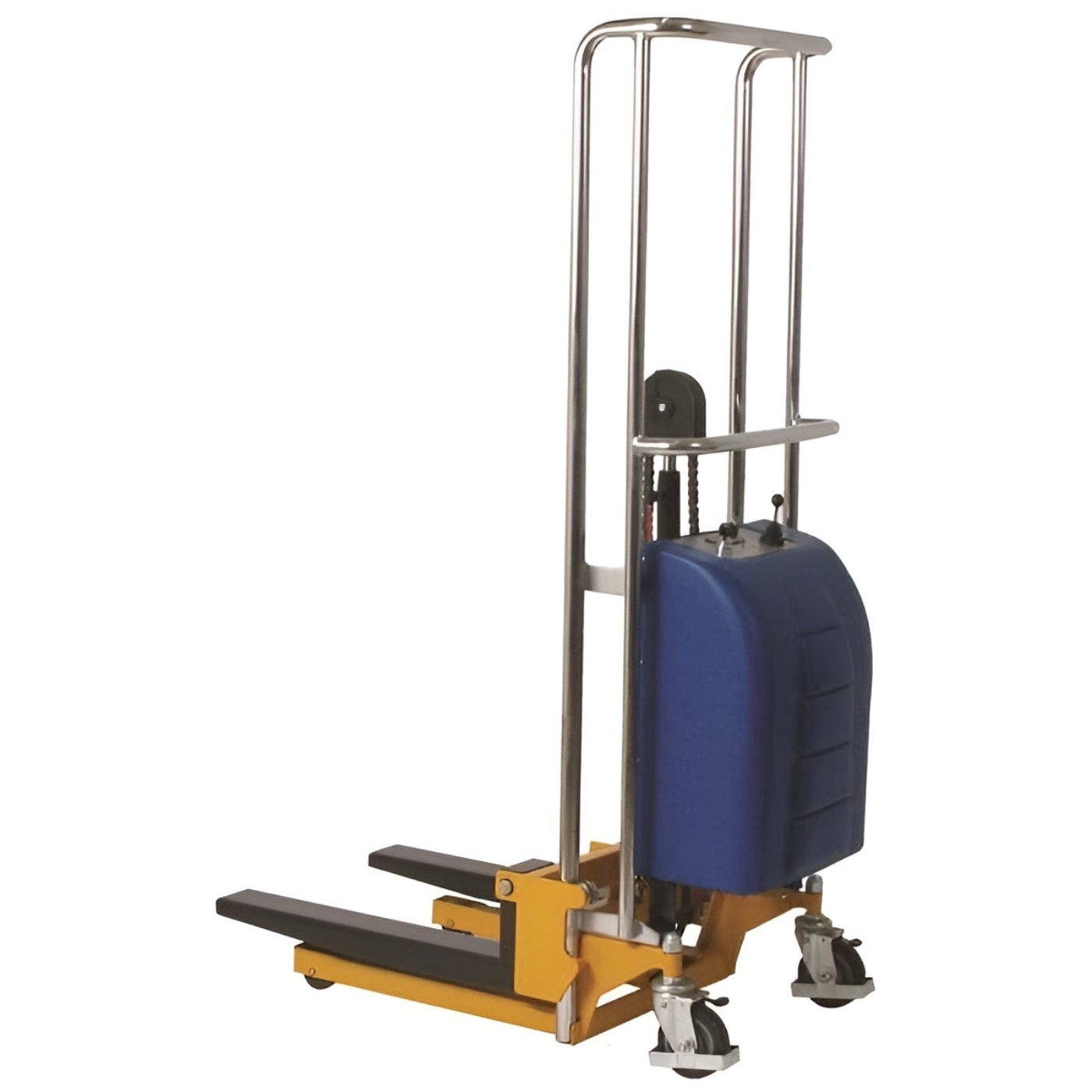

Wesco BATTERY OPERATED VALUE LIFT STACKER - 273203
Features
- Adjustable 4" wide x 25.5" long forks.
- Two 5" polyurethane swivel casters with brake and two 3" polyurethane rigid wheels.
- Llift height: 47".
- Chrome plated rails and handles.
- UL approved charger.
- Sealed maintenance-free battery.
- Keyed on/off switch.
- Raise/lower control.
- #272942 Optional Platform fits both Manual and Electric Value Lift Stackers. Optional, removable 22" wide x 26" long platform.
- Adjustable fork width 8.25" to 21.5"
Specifications
| PART NUMBER |
273203 |
| MODEL |
VLP-47 |
| CAPACITY |
880 lb |
| BATTERY |
12 V 80 Ah Sealed |
| SWIVEL CASTER |
(2) 5" Locking Polyurethane |
| LOAD WHEEL |
(2) 3" Rigid Polyurethane |
| LIFT HEIGHT |
3.5" to 47" |
| LOWERED HEIGHT |
3.5" |
| WIDTH FORKS |
4" |
| LENGTH FORKS |
25.5" |
| LOAD CENTER |
12.75" |
| OVERALL WIDTH |
22.5" |
| OVERALL HEIGHT |
55" |
| OVERALL DEPTH |
44" |
| WEIGHT |
269 lb |
Drawing
Drawing for Electric Value Lift Stacker (273203)
What Our Experts Think
-
Compact Capacity: Supports up to 880 lbs, making it perfect for light-duty lifting and material handling in small to medium-sized operations.
-
Electric Lift: Features an electric lift system for smooth, controlled operation, reducing manual effort and enhancing productivity.
-
Versatile Fork Size: 25 1/2" forks are ideal for handling standard pallets and smaller loads with ease.
-
Moderate Lift Height: 47" lift height is suitable for tasks that require moderate stacking and vertical handling.
-
Durable and Efficient: Built to last with quality materials, ensuring reliability in light-duty industrial environments.
Q&A
Q: What is the weight capacity of the Wesco Electric Value Fork Lift?
A: The Wesco 273203 can lift up to 880 lbs.
Q: What are the dimensions of the forks?
A: The forks measure 25 1/2 inches wide, designed to fit standard pallets.
Q: What is the maximum lift height?
A: This fork lift can lift up to a height of 47 inches.
Q: Is this forklift electric-powered?
A: Yes, it is powered by an electric motor for lifting and transporting loads with ease.
Q: What are the primary applications for this forklift?
A: Ideal for lifting and moving smaller loads, such as pallets or materials, in light to medium-duty industrial and warehouse environments.
Q: Is it easy to maneuver?
A: Yes, it features ergonomic controls and smooth-rolling wheels for easy movement and handling in tight spaces.
Q: Does it require charging?
A: Yes, the electric motor requires charging to operate the lift function.
Q: Is it durable?
A: Yes, built with reliable materials for long-lasting performance in lighter-duty applications.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions provided.
Maintenance Tips
-
Inspect Regularly: Check the forks, hydraulic system, wheels, and frame for any signs of wear, damage, or loose components every month.
-
Lubricate Moving Parts: Grease wheels, rollers, and any pivot points every 3 months to ensure smooth and reliable operation.
-
Battery Maintenance: Fully charge the battery before use, and check cables, terminals, and connections for corrosion or damage.
-
Hydraulic Fluid Check: Ensure hydraulic fluid is at the correct level and check for any leaks or irregularities in the hydraulic system.
-
Clean After Use: Wipe down the fork lift to remove dirt, debris, and moisture, particularly around electrical components.
-
Check Fasteners: Tighten bolts, screws, and fasteners regularly to maintain stability and ensure safe operation.
-
Test Functionality: Verify the lift, lowering, and braking systems are functioning correctly before each use.
-
Respect Load Limits: Never exceed the 880 lb. capacity to avoid overloading the system and ensure safe operation.
