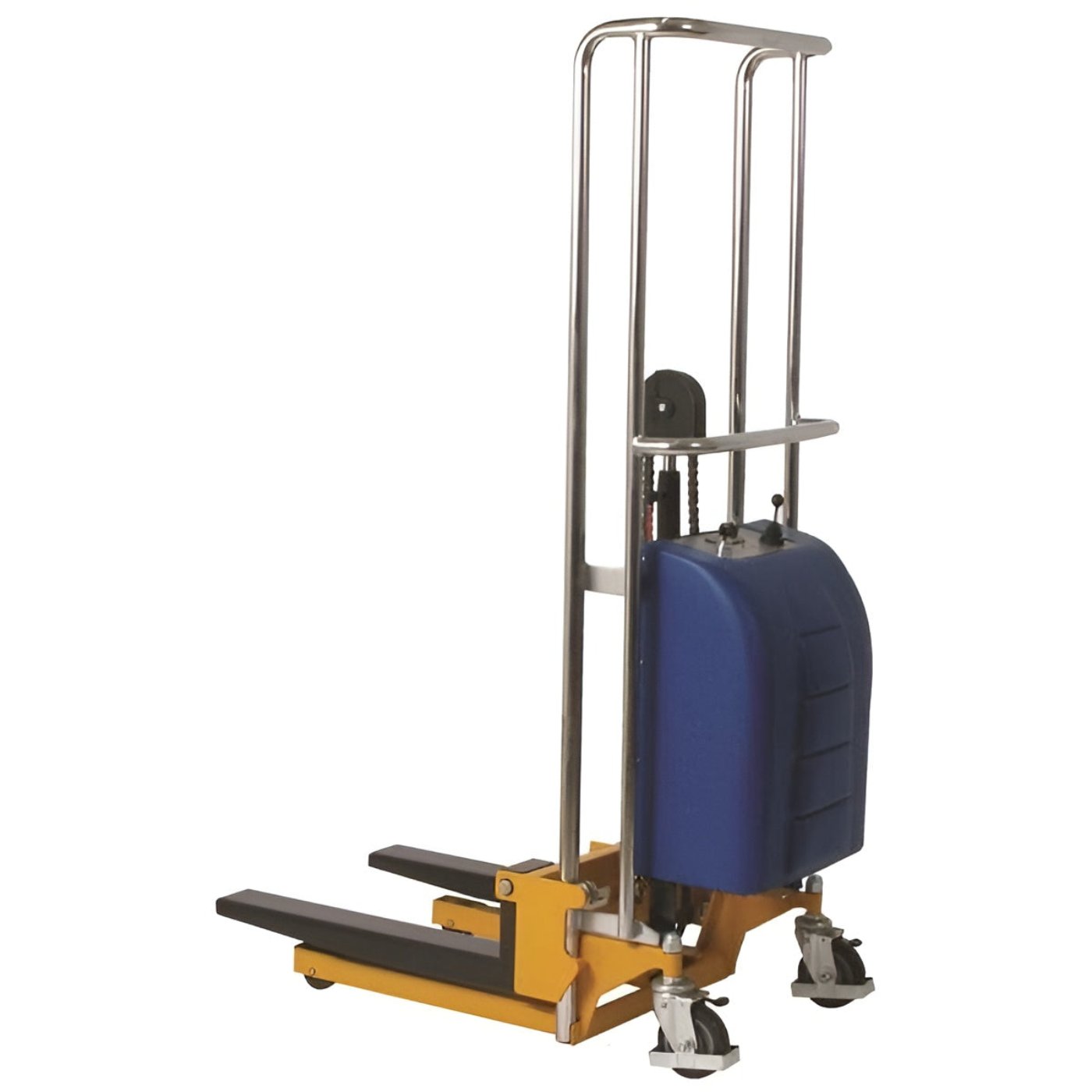

Wesco BATTERY OPERATED VALUE LIFT STACKER 273204
Features
- Adjustable 4" wide x 25.5" long forks.
- Two 5" polyurethane swivel casters with brake and two 3" polyurethane rigid wheels.
- Lift height 59".
- Chrome plated rails and handles.
- UL approved charger.
- Sealed maintenance-free battery.
- Keyed on/off switch.
- Raise/lower control.
- #272942 Optional Platform fits both Manual and Electric Value Lift Stackers. Optional, removable 22" wide x 26" long platform.
- Adjustable fork width 8.25" to 21.5"
Specifications
| PART NUMBER |
273204 |
| MODEL |
VLP-59 |
| CAPACITY |
880 lb |
| BATTERY |
12 V 80 Ah Sealed |
| SWIVEL CASTER |
(2) 5" Locking Polyurethane |
| LOAD WHEEL |
(2) 3" Rigid Polyurethane |
| LIFT HEIGHT |
3.5" to 59" |
| LOWERED HEIGHT |
3.5" |
| WIDTH FORKS |
4" |
| LENGTH FORKS |
25.5" |
| LOAD CENTER |
12.75" |
| OVERALL WIDTH |
22.5" |
| OVERALL HEIGHT |
68" |
| OVERALL DEPTH |
44" |
| WEIGHT |
280 lb |
Drawing
What Our Experts Think
-
Compact Capacity: Supports up to 880 lbs, making it ideal for light-duty lifting in smaller-scale industrial environments.
-
Electric Lift System: Smooth, electric-powered lift ensures minimal effort for the operator, improving overall efficiency.
-
Versatile Fork Size: 25 1/2" forks are perfect for handling standard pallets and smaller materials, providing flexibility in various tasks.
-
Increased Lift Height: 59" lift height allows for greater stacking and vertical storage capabilities, perfect for moderate-height material handling.
-
Durable Construction: Designed to last with high-quality materials, ensuring reliable performance in light-duty settings.
Q&A
Q: What is the maximum load capacity?
A: 880 lbs.
Q: What is the fork length?
A: 25 1/2 inches.
Q: What is the maximum lift height?
A: 59 inches.
Q: Is it electric-powered?
A: Yes, it features electric operation for efficiency.
Q: What industries is it suitable for?
A: Ideal for warehouses, manufacturing, and small industrial operations.
Q: Does it include safety features?
A: Yes, it includes reliable brakes and ergonomic controls for safe operation.
Q: Is it easy to maneuver?
A: Yes, designed for smooth mobility in tight spaces.
Q: What is the product’s warranty?
A: Contact the manufacturer for details on warranty coverage.
Q: How can I purchase or inquire further?
A: Visit our website or contact our sales team for assistance.
Maintenance Tips
-
Inspect Regularly: Check the forks, hydraulic system, wheels, and frame for any wear, damage, or loose components every month.
-
Lubricate Moving Parts: Grease wheels, rollers, and pivot points every 3 months to ensure smooth operation and prevent wear.
-
Battery Maintenance: Fully charge the battery before use, and inspect terminals and cables for corrosion or damage.
-
Hydraulic Fluid Check: Ensure the hydraulic fluid levels are sufficient and check for leaks or any other issues in the hydraulic system.
-
Clean After Use: Wipe down the fork lift to remove dirt, dust, and moisture, especially from electrical components.
-
Check Fasteners: Tighten bolts, screws, and fasteners regularly to maintain the stability and safety of the unit.
-
Test Functionality: Ensure that the lift, lowering, and braking mechanisms are functioning properly before each use.
-
Respect Load Limits: Never exceed the 880 lb. capacity to ensure safe operation and prevent damage to the lift.
