Wesco ERGONOMIC DRUM HANDLER SCALE MODEL - ± 0.50% OF APPLIED LOAD - 240155
Features
- 1 Year Warranty, parts only.
- WESCO MADE hydraulic pump - all models.
- Handles most 30, 55 or 85 gallon drums - Steel, Fiber and Poly.
- Works with most drums with locking rings.
- Up/Down remote on power units.
- Power drive travel speed 120'/min.
- Lifts, transports, weighs and places drums on spill or standard pallets.
- Spring-loaded jaws hold any 3/16" or higher drum rim.
- Operator does not need to touch drums to operate.
- Patented Gator Grip® drum clamp will not drop a drum if operated properly.
- (2) wheels and (2) swivel casters, 5" x 2" phenolic, and floor lock.
Specifications
| PART NUMBER |
240155 |
| MODEL |
DM-1100-S |
| DESCRIPTION |
Scale - Accuracy ±0.50% of applied load or 1lb., whichever is greater |
| CAPACITY |
650/1100 lb |
| WHEELS AND CASTERS |
(2) 5" x 2" Phenolic wheels + swivel casters, and floor lock |
| LEGS RETRACTED CAPACITY |
650 lb |
| LEGS EXTENDED CAPACITY |
1100 lb |
| RISE/STROKE |
1" |
| WEIGHT |
356 lb |
| DRUM CLAMP TYPE |
Gator Grip® |
Drawing

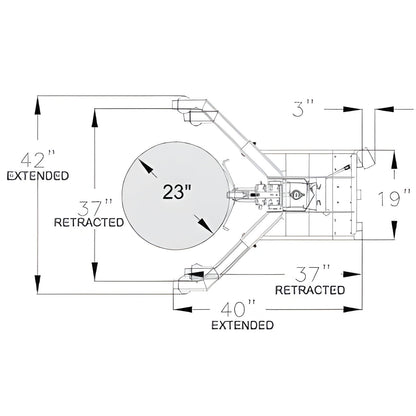

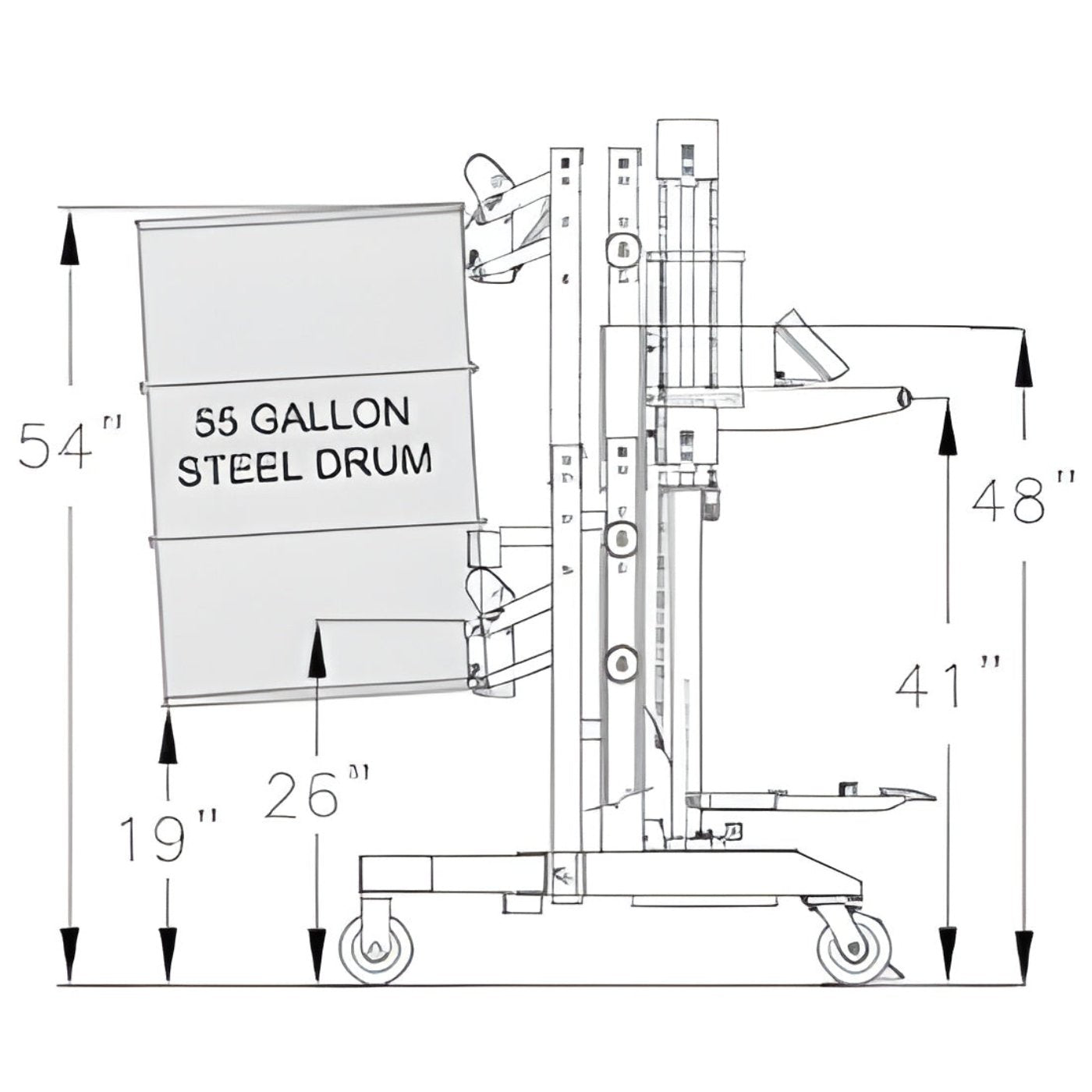

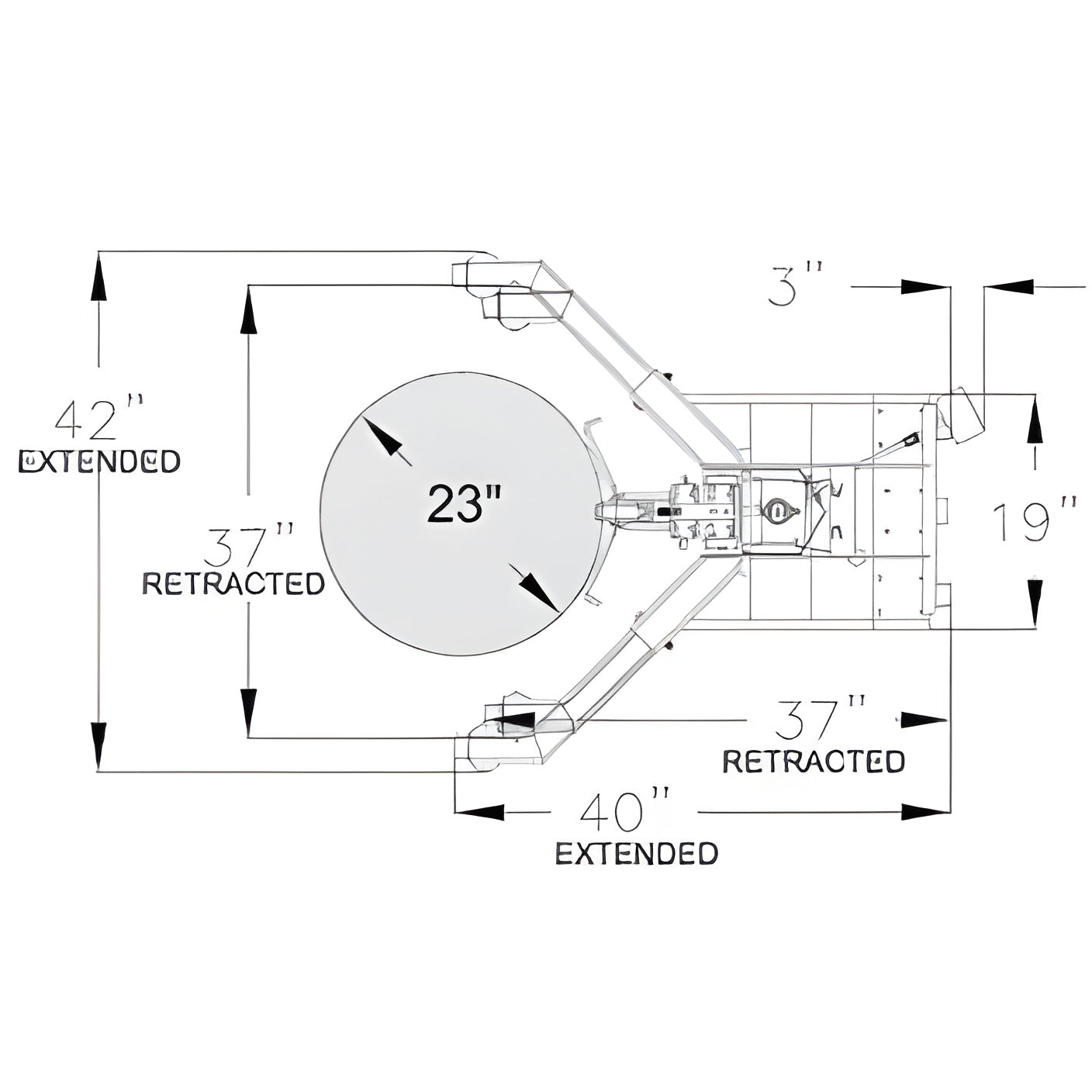

Drawing for Ergonomic Drum Handlers (240155)
What Our Experts Think
-
High Weight Capacity: The Wesco DM-1100-S Drum Handler can lift up to 1,100 lbs., making it suitable for handling large, heavy drums with ease.
-
Integrated Scale: Equipped with a built-in scale for accurate weight measurement, allowing precise inventory management and load monitoring.
-
Ergonomic Hydraulic Lift: Features a hydraulic lift system for smooth and controlled drum lifting, reducing physical strain on operators.
-
Gator Grip Clamp: The Gator Grip clamp securely holds drums of various sizes, ensuring safe transport and handling.
-
Durable and Reliable: Constructed from heavy-duty materials, this drum handler is built to withstand demanding industrial environments.
-
Increased Efficiency: Ideal for manufacturing, chemical processing, and warehousing, where efficient and safe drum handling is essential.
Q&A
Q: What is the maximum load capacity?
A: It can handle up to 1,100 lbs. (650 lbs. with high reach).
Q: What is the key feature of this drum handler?
A: It includes an ergonomic hydraulic lift system, a Gator Grip clamp, and an integrated scale for precise weight measurement.
Q: What drum sizes is it compatible with?
A: Designed for 55-gallon drums.
Q: How is the drum lifted and moved?
A: It uses a hydraulic lift system for smooth, controlled lifting, along with a built-in scale for accurate weight tracking.
Q: Is it easy to maneuver?
A: Yes, it features a hydraulic system that allows for easy movement and drum positioning.
Q: What industries is this drum handler ideal for?
A: Perfect for manufacturing, warehouses, and industries requiring accurate drum weight measurements.
Q: Does it include safety features?
A: Yes, it includes a secure Gator Grip clamp and stable hydraulic system for safe operation.
Q: How can I purchase or get more details?
A: Visit our website or contact our sales team for more information.
Maintenance Tips
-
Inspect Hydraulic System: Regularly check for leaks and ensure hydraulic fluid levels are within the recommended range.
-
Lubricate Moving Parts: Grease the lifting mechanism, Gator Grip clamp, and other moving components to ensure smooth operation.
-
Check the Scale: Ensure the scale is calibrated correctly and remains accurate for weight measurement.
-
Examine the Gator Grip Clamp: Ensure the clamp operates properly, securely holding the drum and releasing when needed.
-
Test Wheels and Casters: Inspect casters for wear, ensuring they rotate smoothly and are properly aligned.
-
Tighten Fasteners: Check bolts, nuts, and screws for tightness to maintain structural stability and safety.
-
Clean Regularly: Keep the drum handler clean by removing dust, dirt, and debris, especially from the lifting and scale areas.
-
Proper Storage: Store in a dry, indoor environment to prevent rust and prolong the equipment’s lifespan.
