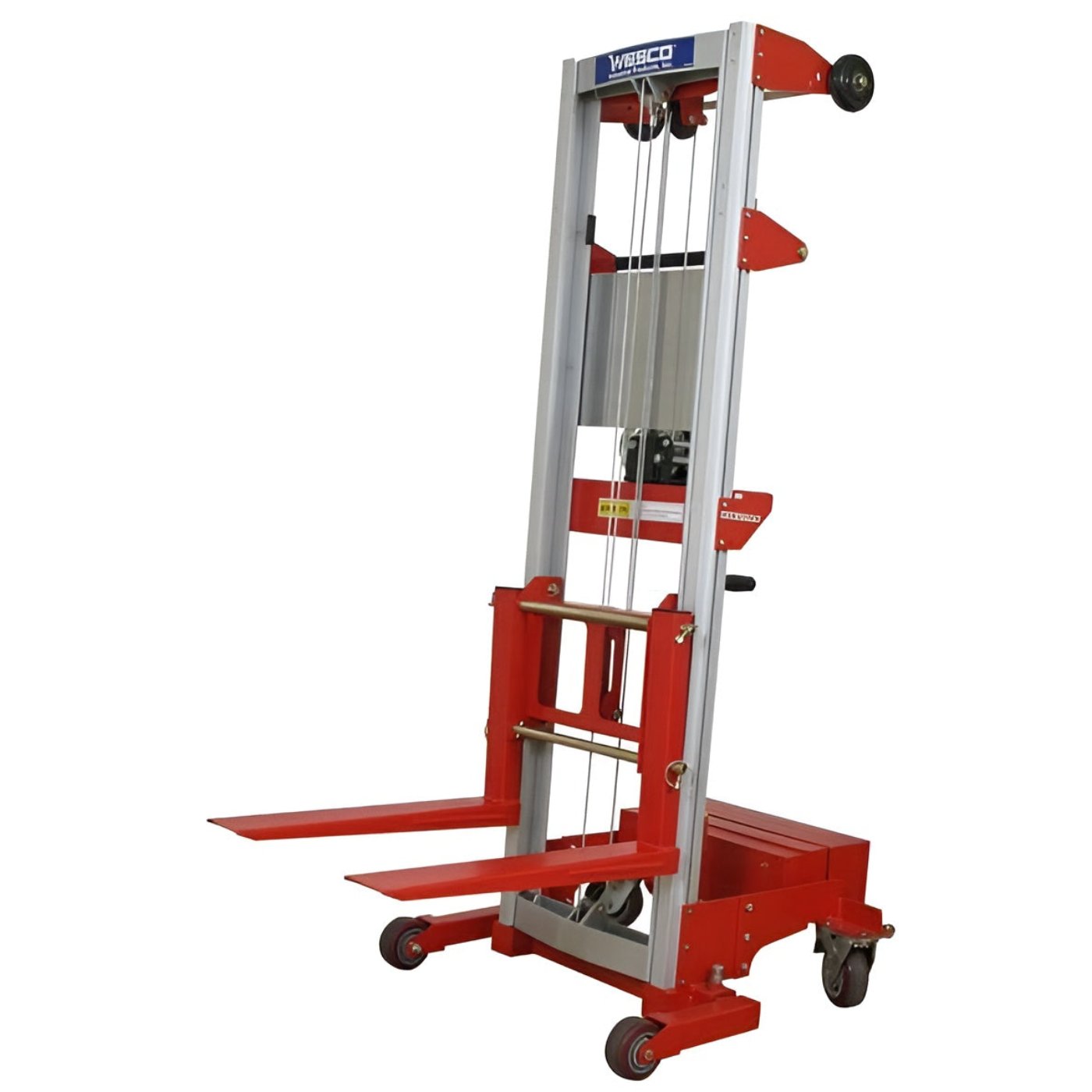

Wesco HAND WINCH LIFTER, COUNTER BALANCE STRADDLE - 273515
Features
- Capacity 350 lbs.
- Aluminum and steel construction.
- 8" rear wheels and 2" front swivel casters are non-marking.
- Forks can be inverted for two different lift heights. Fork size: 4"W x 22.5"L x 1.75"H.
- Winch crank handle locks to secure carriage.
- Counter-balance straddle. Short legs etc. 5" polyurethane rear swivel casters with brakes and 4" front wheels.
- Top of frame rollers facilitates laying truck horizontal for transport.
Specifications
| PART NUMBER |
273515 |
| MODEL |
HWLCB-3.5 |
| MAX. LIFT RANGE |
120" / 142" |
| LOWERED HEIGHT RANGE |
1.25" / 21.25" |
| CAPACITY |
350 lb |
| BASE |
Counter-Balance Straddle |
| LOAD CENTER |
11.25" |
| OVERALL WIDTH |
29" |
| OVERALL HEIGHT |
68" |
| OVERALL DEPTH |
47" |
| WEIGHT |
405 lb |
Drawing
What Our Experts Think
The Wesco Hand Winch Lifter, Counter Balance Straddle is designed for efficient, manual material handling with added stability. Here’s why it stands out:
-
Stable Counterbalance Design: The counterbalance feature ensures stability while lifting, reducing the risk of tipping when handling loads.
-
Manual Hand Winch Operation: Provides smooth and controlled lifting without requiring electricity, making it ideal for remote or off-grid locations.
-
Straddle Base for Versatility: Adjustable straddle base accommodates a variety of pallet sizes, offering flexibility in material handling.
-
Compact and Easy to Use: Lightweight and user-friendly, it’s easy to maneuver in tight spaces or crowded environments.
-
Durable Build: Constructed for long-lasting use in industrial settings, ensuring reliability and durability over time.
-
Efficient Lifting: Designed for handling loads with precision, making it ideal for light to medium-duty tasks.
Q&A
Q: What is the lifting capacity of this hand winch lifter?
A: The Wesco Hand Winch Lifter with Counter Balance Straddle has a lifting capacity of 500 lbs.
Q: What is the lift height of this model?
A: The lift height varies depending on the specific configuration and model, but typically supports significant vertical lifts for various applications.
Q: How is the lift operated?
A: It uses a manual hand winch for controlled lifting and lowering of loads.
Q: What is the counterbalance straddle design for?
A: The counterbalance design allows for easy access in tight spaces without the need for outriggers, providing more maneuverability in confined areas.
Q: What are the applications for this lifter?
A: Ideal for handling heavy loads in narrow aisles or spaces, perfect for use in warehouses, workshops, and industrial environments.
Q: Is this lift easy to maneuver?
A: Yes, the counterbalance straddle design enhances maneuverability and makes it easy to position in tight spaces.
Maintenance Tips
-
Inspect Regularly: Check the winch, counterbalance, straddle legs, and lifting components for signs of wear, damage, or misalignment.
-
Lubricate Moving Parts: Apply lubricant to the winch mechanism, wheels, and adjustable straddle legs to ensure smooth, friction-free operation.
-
Winch and Cable Inspection: Regularly inspect the winch for proper tension and ensure the cable is free from fraying, wear, or damage. Replace if necessary.
-
Keep It Clean: Clean the lifter to prevent dirt, debris, or rust buildup that could impair performance or lead to corrosion.
-
Check Safety Features: Ensure the winch lock and brake systems function properly to maintain secure operation and prevent accidents.
-
Adhere to Load Capacity: Never exceed the specified weight capacity to avoid overloading and extending the lift’s lifespan.
-
Proper Storage: Store the lifter in a dry, clean area to protect it from moisture and corrosive elements.
