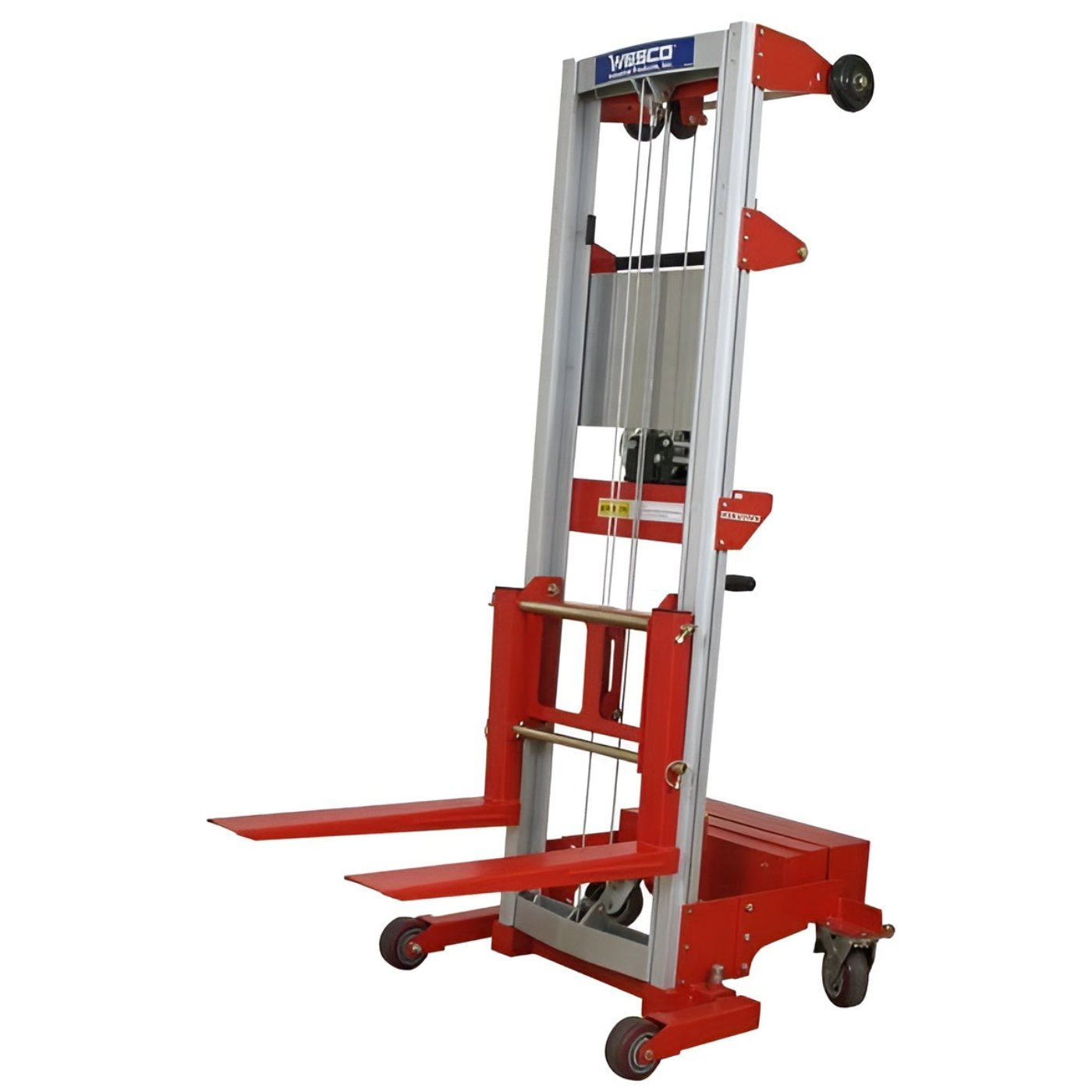

Wesco HAND WINCH LIFTER, COUNTER BALANCE STRADDLE - 273516
Features
- Capacity 400 lbs.
- Aluminum and steel construction.
- 8" rear wheels and 2" front swivel casters are non-marking.
- Forks can be inverted for two different lift heights. Fork size: 4"W x 22.5"L x 1.75"H.
- Winch crank handle locks to secure carriage.
- Counter-balance straddle. Short legs etc. 5" polyurethane rear swivel casters with brakes and 4" front wheels.
- Top of frame rollers facilitates laying truck horizontal for transport.
Specifications
| PART NUMBER |
273516 |
| MODEL |
HWLCB-4 |
| MAX. LIFT RANGE |
98" / 120" |
| LOWERED HEIGHT RANGE |
2" / 25" |
| CAPACITY |
400 lb |
| BASE |
Counter-Balance Straddle |
| LOAD CENTER |
11.25" |
| OVERALL WIDTH |
29" |
| OVERALL HEIGHT |
68" |
| OVERALL DEPTH |
47" |
| WEIGHT |
394 lb |
Drawing
What Our Experts Think
The Wesco Hand Winch Lifter, Counter Balance Straddle is a reliable and stable lifting solution for handling medium-duty loads. Here’s why it’s a top pick:
-
Counterbalance Stability: The counterbalance design ensures stability while lifting, preventing tipping and improving safety during use.
-
Manual Hand Winch: Operates with a hand winch, offering precise control for lifting without the need for electricity or complex setups.
-
Adjustable Straddle Base: The adjustable straddle base allows it to fit various pallet sizes, making it versatile and adaptable to different tasks.
-
Compact and Maneuverable: Easy to transport and maneuver, even in tight spaces, for increased efficiency in busy environments.
-
Durable Construction: Built with high-quality materials, ensuring longevity and reliability in industrial settings.
-
Efficient Load Handling: Ideal for light to medium-duty lifting tasks, offering a smooth, manual lifting experience.
Q&A
Q: What is the lifting capacity of this hand winch lifter?
A: The Wesco Hand Winch Lifter with Counter Balance Straddle has a lifting capacity of 500 lbs.
Q: What is the maximum lift height?
A: The maximum lift height for this model is typically 70", but check specifications for exact details.
Q: How is the lift operated?
A: It uses a manual hand winch for precise control over lifting and lowering of loads.
Q: What is the benefit of the counterbalance straddle design?
A: The counterbalance straddle provides increased stability and maneuverability, allowing access in tighter spaces without the need for outriggers.
Q: What applications is this lifter ideal for?
A: Suitable for lifting and moving loads in narrow aisles, perfect for warehouses, industrial settings, and workshops.
Q: Is the lifter easy to maneuver?
A: Yes, the counterbalance straddle design allows for easy handling and positioning in confined areas.
Maintenance Tips
-
Regular Inspections: Examine the winch, counterbalance, straddle legs, and lifting components for signs of wear, damage, or misalignment.
-
Lubricate Moving Parts: Apply grease to the winch mechanism, wheels, and adjustable straddle legs to ensure smooth operation and reduce friction.
-
Inspect Winch and Cable: Periodically check the winch for proper tension and inspect the cable for any fraying or damage. Replace if necessary to maintain safe operation.
-
Keep It Clean: Clean the lifter regularly to remove dirt, debris, and moisture that may cause damage or corrosion.
-
Test Safety Mechanisms: Ensure the winch lock, brakes, and safety features are functioning properly before each use.
-
Follow Load Limits: Always adhere to the weight capacity to prevent overloading and extend the lift's operational life.
-
Proper Storage: Store the lifter in a dry, clean environment away from corrosive elements to protect it from rust and deterioration.
