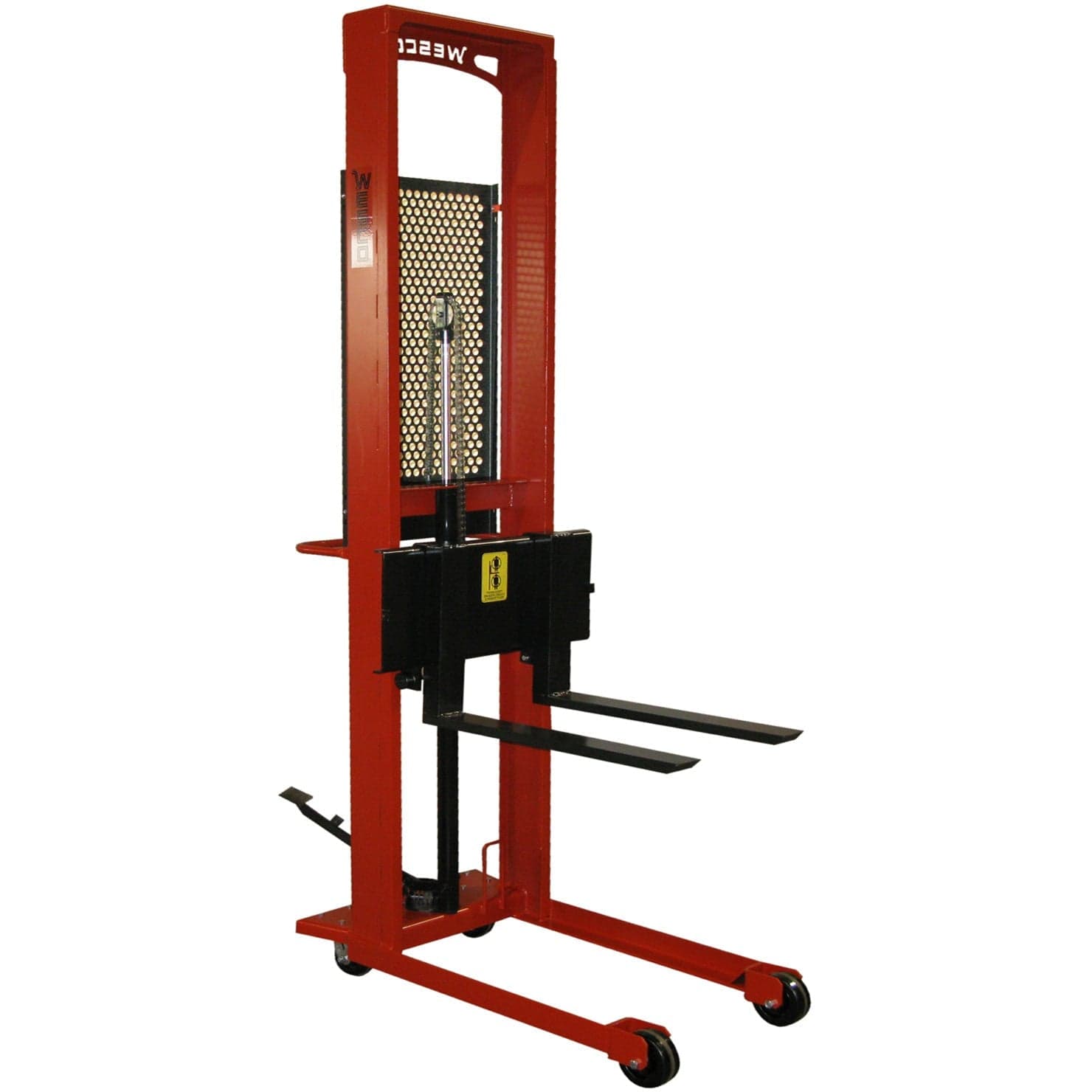

Wesco STRADDLE FORK STACKER MODEL- 260042
Features
- 1-year warranty.
- 1" thick x 3" wide x 30" long forks.
- Adjustable span up to 25".
- 18" load center.
- 32" overall width; 44" depth.
- Base leg span - 25.5" inside, 32" outside.
- Forks lower to ground.
- Wesco® manufactured hydraulic Stacker Jack, over 35 year of proven quality.
Specifications
| PART NUMBER |
260042 |
| MODEL |
SFL-64-30S |
| CAPACITY |
1000 lb |
| TYPE |
Standard |
| LIFT HEIGHT |
64" |
| WIDTH FORKS |
3" |
| LENGTH FORKS |
30" |
| THICKNESS FORKS |
1" |
| LOAD CENTER |
18" |
| INSIDE BASE LEG |
25.5" |
| OUTSIDE BASE LEG |
32" |
| ADJUSTABLE FORK SPAN |
up to 25" |
| OVERALL WIDTH |
32.5" |
| OVERALL HEIGHT |
83" |
| OVERALL DEPTH |
48" |
| WEIGHT |
298 lb |
Drawing for Fork Stackers (260042)
What Our Experts Think
-
Heavy-Lifting Capacity: The Wesco 1,000 lb. Standard Series Straddle Fork Stacker is built to handle up to 1,000 lbs., making it perfect for a variety of medium-duty material handling tasks.
-
64" Lift Height: With a 64" lift height, it allows for higher stacking and retrieval from tall shelving, optimizing vertical storage.
-
Straddle Forks: Designed with straddle forks for improved stability and safe handling of pallets, ensuring a secure lift every time.
-
Durable Construction: Made from high-quality materials, this stacker is built to last and perform reliably in demanding environments.
-
Efficient Operation: Features a manual hydraulic system that provides smooth and easy lifting, allowing operators to control lifting height with ease.
-
Versatile Use: Ideal for warehouses, distribution centers, and manufacturing environments that require efficient and safe material handling.
Q&A
Q: What is the maximum load capacity?
A: 1,000 lbs.
Q: What is the size of the forks?
A: The forks measure 30" in length.
Q: What is the maximum lift height?
A: The maximum lift height is 64".
Q: How is the fork stacker operated?
A: It features a manual hydraulic lift system for easy and efficient lifting and lowering of loads.
Q: Is this fork stacker easy to maneuver?
A: Yes, it includes durable wheels that ensure smooth movement and maneuverability, even in tight spaces.
Q: What industries is this fork stacker ideal for?
A: Suitable for use in warehouses, light manufacturing, retail, and other industrial environments.
Q: Does it include safety features?
A: Yes, the stacker is designed with a stable base and secure hydraulic system for safe operation.
Q: How can I purchase or get more details?
A: Visit our website or contact our sales team for more information.
Maintenance Tips
-
Inspect Hydraulic System: Check for leaks or damage in the hydraulic pump, cylinder, and hoses. Ensure hydraulic fluid levels are adequate.
-
Lubricate Moving Parts: Regularly grease the lift mechanism, casters, and pivot points to ensure smooth movement and reduce wear.
-
Examine Forks and Frame: Inspect the forks for any signs of damage or bending. Ensure that the frame is intact and secure for safe operation.
-
Check Wheels and Casters: Inspect casters for wear, cracks, or damage. Ensure they rotate freely for easy maneuverability and stability.
-
Test Lifting Function: Periodically test the lift and lower functions, checking for smooth and stable operation at full height.
-
Tighten Fasteners: Check all bolts, nuts, and screws to ensure they are tightly secured to prevent loosening during use.
-
Clean Regularly: Remove dust, dirt, and grease buildup from the hydraulic system and moving parts to ensure smooth operation.
-
Proper Storage: Store the stacker in a dry area to prevent corrosion, and protect it from extreme conditions.
