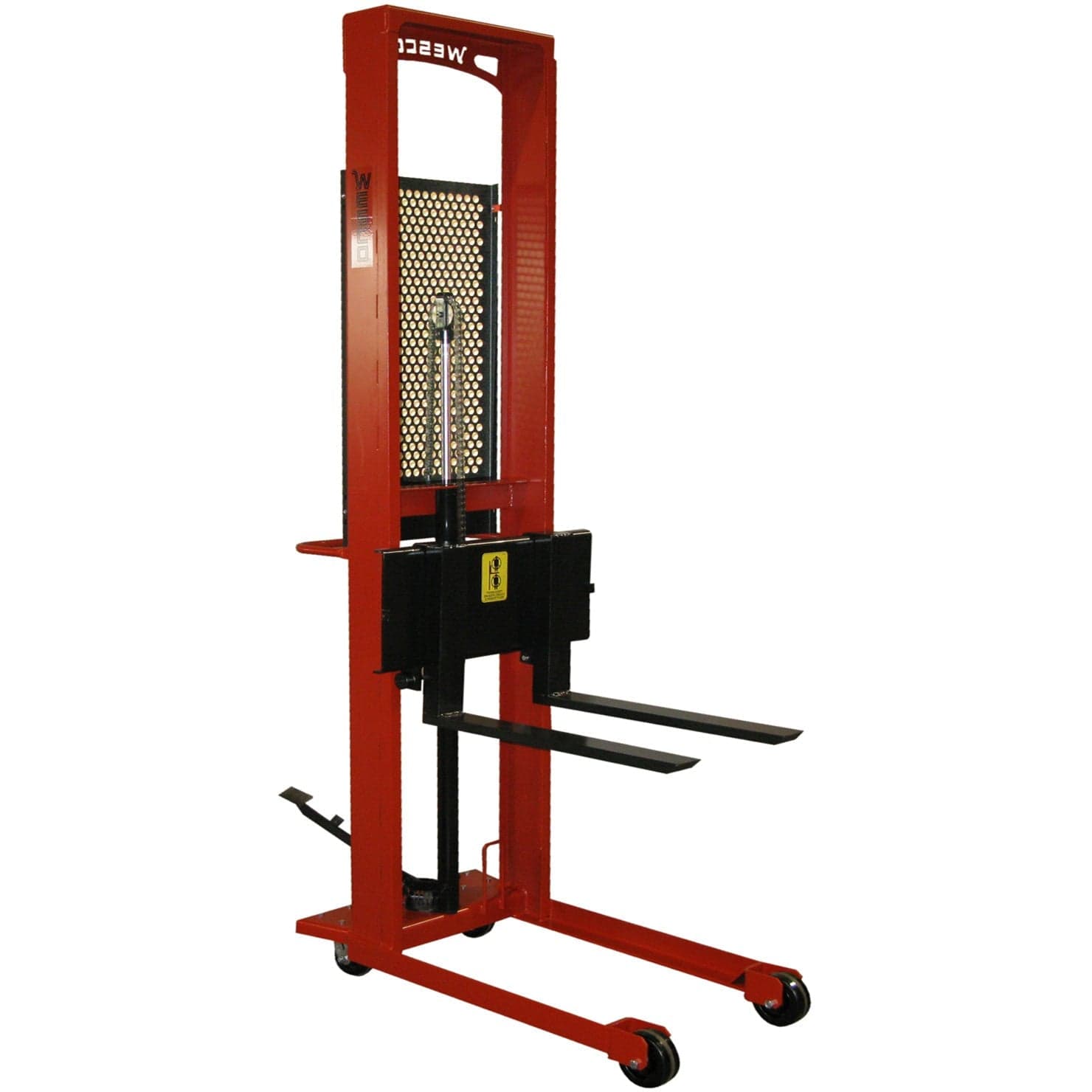

Wesco STRADDLE FORK STACKER MODEL- 260043
Features
- 1-year warranty.
- 1" thick x 3" wide x 30" long forks.
- Adjustable span up to 25".
- 18" load center.
- 32" overall width; 44" depth.
- Base leg span - 25.5" inside, 32" outside.
- Forks lower to ground.
- Wesco® manufactured hydraulic Stacker Jack, over 35 year of proven quality.
Specifications
| PART NUMBER |
260043 |
| MODEL |
SFL-76-30S |
| CAPACITY |
1000 lb |
| TYPE |
Standard |
| LIFT HEIGHT |
76" |
| WIDTH FORKS |
3" |
| LENGTH FORKS |
30" |
| THICKNESS FORKS |
1" |
| LOAD CENTER |
18" |
| INSIDE BASE LEG |
25.5" |
| OUTSIDE BASE LEG |
32" |
| ADJUSTABLE FORK SPAN |
up to 25" |
| OVERALL WIDTH |
32.5" |
| OVERALL HEIGHT |
94" |
| OVERALL DEPTH |
48" |
| WEIGHT |
333 lb |
Drawing for Fork Stackers (260043)
What Our Experts Think
The Wesco Straddle Fork Stacker Model 260043 is a high-performance, versatile material handling solution. Here’s why it stands out:
-
Straddle Fork Design: Designed to fit around pallets, the straddle forks offer increased flexibility and efficiency in load handling.
-
Compact and Agile: Its space-saving design makes it ideal for use in narrow aisles or cramped spaces, maximizing storage capacity.
-
Durable Build: Built with heavy-duty materials, ensuring reliability and longevity even under demanding industrial use.
-
Smooth Operation: Offers controlled and smooth lifting, reducing the physical strain on operators while enhancing safety.
-
User-Friendly: The straightforward design and intuitive controls make it easy to operate, even for less experienced staff.
-
Versatile Application: Perfect for a wide range of environments, including warehouses, workshops, and manufacturing facilities.
Q&A
Q: What is the lifting capacity of the Wesco Straddle Fork Stacker?
A: The Wesco Straddle Fork Stacker has a lifting capacity of 1,000 lbs.
Q: What are the fork dimensions?
A: The forks are designed to handle various pallet sizes, but you should refer to the specific model for the exact measurements.
Q: What is the maximum lift height?
A: The maximum lift height for this model is typically around 60" (please verify with the exact model details).
Q: How is the stacker operated?
A: This stacker is operated manually, offering precise control for lifting and lowering loads.
Q: What are the benefits of the straddle design?
A: The straddle design allows the forks to fit under pallets without precise alignment, making it easier to move and stack heavy loads.
Q: What applications is this stacker ideal for?
A: Suitable for material handling and stacking in confined spaces, perfect for warehouses, factories, and other industrial environments.
Q: Is the stacker easy to maneuver?
A: Yes, it is designed for smooth and easy maneuverability in narrow or tight spaces.
Maintenance Tips
-
Regular Inspections: Check the forks, straddle legs, hydraulic system, and lift components for signs of wear, damage, or misalignment.
-
Lubricate Moving Parts: Apply lubrication to the forks, wheels, and straddle legs to ensure smooth, efficient movement.
-
Hydraulic Fluid Checks: Inspect hydraulic fluid levels regularly and check for leaks. Replace the fluid as per the manufacturer’s recommendations to ensure proper lifting power.
-
Test Lifting Mechanism: Ensure the lift operates smoothly and that there are no issues with the fork height or load stability.
-
Keep It Clean: Clean the stacker, particularly around moving parts and wheels, to prevent dirt and debris buildup that can cause wear.
-
Check Safety Features: Regularly test the brake system, load limiters, and lift controls for proper operation.
-
Adhere to Load Limits: Never exceed the weight capacity to prevent overloading and maintain stacker performance.
-
Proper Storage: Store the stacker in a dry, clean location to prevent rust and corrosion.
